Original FWD Atto 3 replacement parts

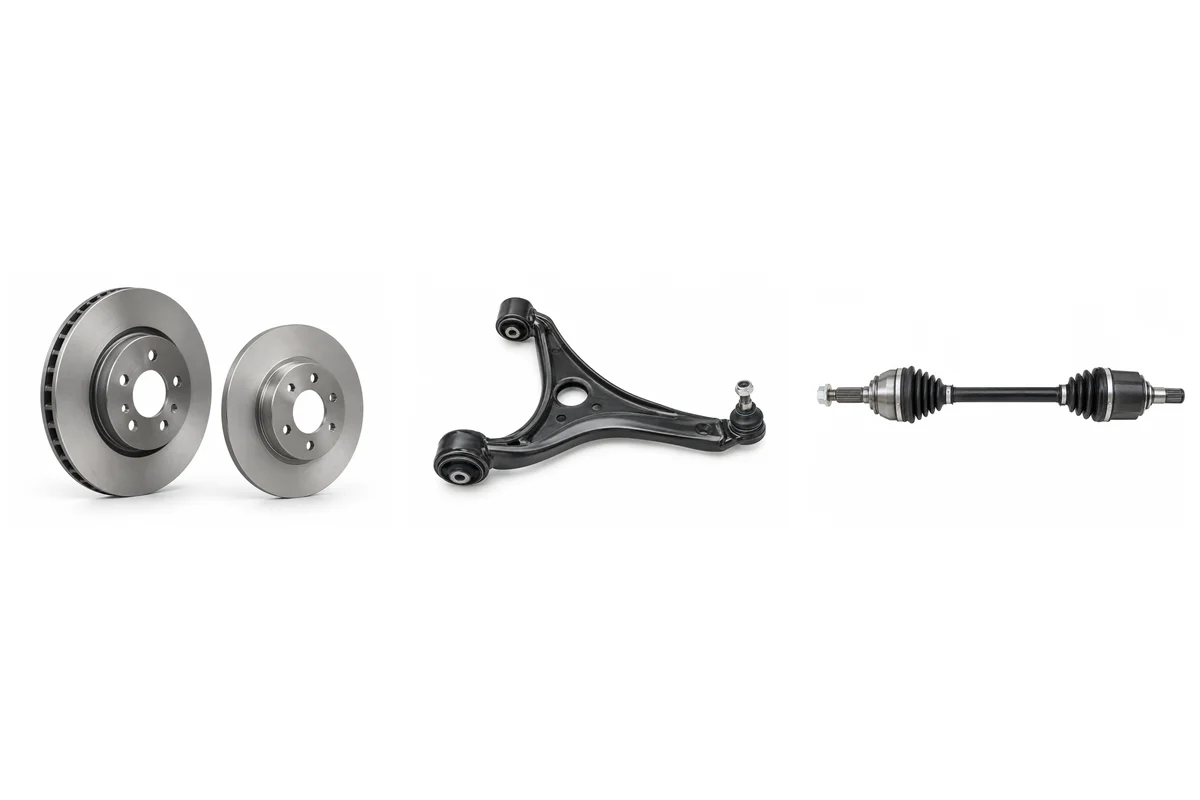

BYD Atto 3 Brakes, Suspension & Drive Shafts
Identify original FWD Atto 3 chassis parts by axle, side and installed assembly.
Separate axle, side and drive layout
The brake set, suspension link and half shaft each need their own selection record. Front-drive references are not a shortcut for EVO rear-drive or all-wheel-drive equipment.
Match the mechanical brake package
Compare disc dimensions and the caliper family before combining pads, rotors or hoses. Record whether a rear order needs a complete caliper or only its electric parking motor. Wheel-speed sensors must match the hub encoder and mounting position; a shared electrical plug does not establish the same signal specification.
Name each suspension position
The original vehicle combines front struts with a rear multi-link layout. Separate front lower arms from individual rear links and distinguish bare dampers, springs, mounts and complete assemblies. A rear carrier is not a torsion beam, and an unspecific rear arm description needs an installed-position photograph.
Keep steering and shafts specific
Confirm steering side and rack electronics, then match inner and outer joint interfaces independently. For a CV axle, compare left/right length, splines and drive-unit coupling. A common wheel stud pattern does not prove the same front driven hub or rear undriven bearing.
Agree safety and inspection requirements
Keep traceability, dimensional checks and applicable market documentation with brake and structural parts. Replacement, alignment, service-mode and calibration procedures belong to a qualified repairer using the correct vehicle information. Do not infer roadworthiness from a component photograph.
Connected assembly checks
Keep the original drive-unit identification with the CV Axle and Drive Unit Mount; confirm their mounting relationship to the Subframe.
Compare Brake Pads with the installed Brake Caliper and measured Brake Discs before combining an axle order.
Check the Brake Hose connection on the Brake Caliper; specify a Parking Brake Actuator only for the confirmed rear caliper interface.
Components to identify separately
| Assembly | Selection evidence |
|---|---|
| Brake Pads | Axle, backing-plate outline, thickness and caliper family |
| Brake Discs | Front or rear, diameter, thickness, offset and hub pattern |
| Brake Caliper | Axle, side, carrier, hose connection and parking motor contents |
| Brake Hose | Wheel position, hose length, fitting threads and locating brackets |
| ABS Wheel Speed Sensor | Wheel position, lead routing, connector and bearing encoder |
| TPMS Sensor | Market frequency, protocol, valve type and relearn requirements |
| Parking Brake Actuator | Rear caliper identity, motor interface, plug and supplied seals |
| Shock Absorber | Front strut or rear damper, side, mounting and suspension specification |
| Strut Mount | Front strut top, bearing contents, stud pattern and rubber profile |
| Coil Spring | Axle, load specification, end seats, free height and wire diameter |
| Control Arm | Front lower or rear multi-link position, side, bushes and joint contents |
| Ball Joint | Front lower arm interface, taper, fixing pattern and supplied hardware |
| Tie Rod End | Side, rack thread, taper, overall length and joint angle |
| Stabilizer Link | Axle, center length, joint angles and mounting studs |
| Stabilizer Bar | Axle, bend geometry, bar diameter and mounting-bush locations |
| Wheel Hub Bearing | Driven or undriven wheel, flange, spline and ABS encoder |
| CV Axle | Original FWD drive unit, side, shaft length, splines and joint interfaces |
| Steering Rack | LHD or RHD, electric-assist arrangement, mounts and supplied electronics |
| Drive Unit Mount | Electric drive-unit position, bracket, rubber voids and load orientation |
| Subframe | Front or rear carrier, suspension brackets and mounting datums |
| Steering Knuckle | Side, hub seat, strut and ball-joint mounts and sensor provision |
Continue the parts list
Return to the Atto 3 system directory for other assemblies. Use the OE and VIN checklist for missing identification and the quotation guide for commercial and freight records.
