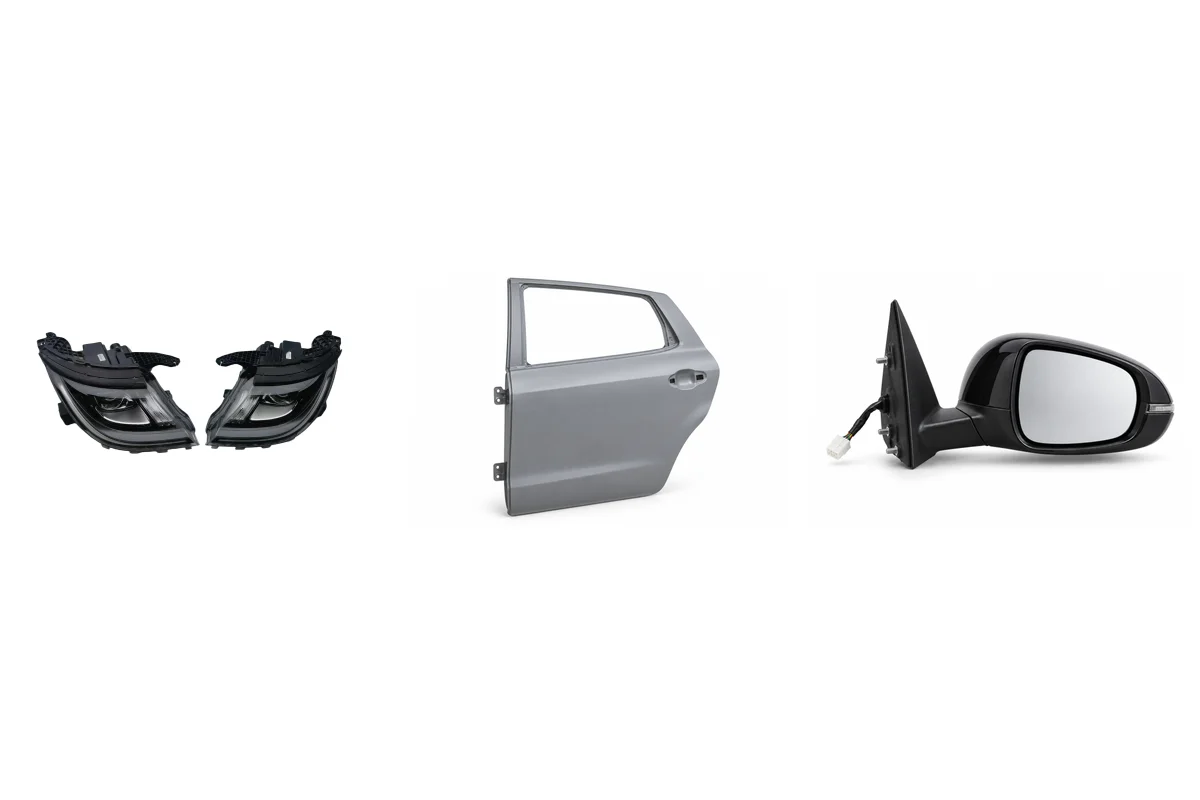

BYD Dolphin Body, Lighting & Door Identification
Prepare Dolphin collision and door-equipment orders from whole-vehicle and damaged-area photographs.
Start with the actual Dolphin body
Confirm body revision, side and original equipment before assigning references. Dolphin Mini, Surf and Seagull panels must remain outside this hatchback list.
Break bumper kits into supplied sections
Identify front and rear upper covers, lower sections, reflectors, brackets and sensor holders independently. A bumper-body material number can refer to only one section. Agree finish and openings before requesting a complete-looking kit that may omit necessary hardware.
Separate light sections and approval
Record headlamp traffic-market approval and LED-module contents. At the rear, distinguish outer corner, hatch and center sections rather than using one tail-light description for the entire arrangement. Compare rear housings and connectors as well as visible styling.
Define a door or hatch assembly
State bare shell, glazed shell or fully equipped supply. Door position determines regulator, latch and handle requirements; a hatch additionally brings support struts, rear camera and wiper equipment. List those contents explicitly so a product reference imagegraph cannot define the order by implication.
Keep sensors and exterior hardware distinct
Mirror cameras, rear cameras and parking sensors need their own system identification and calibration requirements. The exterior charging flap is a body panel, not the electrical charging inlet. Keep wheel-arch liners and splash panels separate from metal fenders and battery enclosures.
Connected assembly checks
For front body alignment, compare Headlights mounting ears with the Front Bumper, metal Fender and Radiator Support; panel appearance alone cannot identify the lamp approval or module contents.
A front-panel quotation should separate the Hood, Fender, Front Bumper and Radiator Support, retaining hinge, latch and panel-junction measurements for the damaged body revision.
At the rear, distinguish the Rear Bumper cover from the Tail Lights sections and each Parking Sensor; keep hatch-mounted components attached to the correct Tailgate record.
Components to identify separately
| Assembly | Selection evidence |
|---|---|
| Headlights | Side, body revision, beam-market approval, LED modules and plug |
| Tail Lights | Outer corner or hatch section, body revision, connector and finish |
| Front Bumper | Market body design, upper and lower sections, openings and brackets |
| Rear Bumper | Upper cover, lower valance, reflectors and parking-sensor holes |
| Side Mirror | Door side, steering market, base, folding, heat and camera functions |
| Fender | Side, wheel-arch contour, trim holes and front-panel junction |
| Hood | Body revision, hinge spacing, latch position and supplied insulation |
| Tailgate | Hatch aperture, lamp and glass openings, latch and trim contents |
| Door Shell | Front or rear, side, frame, hinge pattern and bare or equipped supply |
| Window Regulator | Door corner, rail geometry, glass clamps, cable path and motor |
| Door Lock Actuator | Door or hatch position, latch jaw, lock functions and electrical plug |
| Exterior Door Handle | Door position, keyless sensor, lock barrel and body colour |
| Tailgate Support Struts | Installed gas or powered type, force marking, length and end sockets |
| Wiper Motor & Linkage | Front linkage or rear motor, RHD or LHD, pivots and mounting |
| Washer Pump | Reservoir port, front and rear outlets, seal and connector |
| Washer Reservoir | Tank contour, filler route, pump sockets and level-sensor provision |
| Fender Liner | Wheel corner, arch length, fastener pattern and panel material |
| Underbody Shield | Front splash-panel shape, access apertures, fixings and ground clearance |
| Radiator Support | Front carrier or crossmember, latch, cooling-pack and lamp brackets |
| Charge Port Door | Exterior flap aperture, hinge, latch and body revision |
| Parking Sensor | Bumper position, seating ring, sensing face and connector key |
| Reversing Camera | Rear-view or surround-view system, housing, connector and calibration |
Continue the parts list
Return to the Dolphin system directory for other assemblies. Use the OE and VIN checklist for missing identification and the quotation guide for commercial and freight records.
