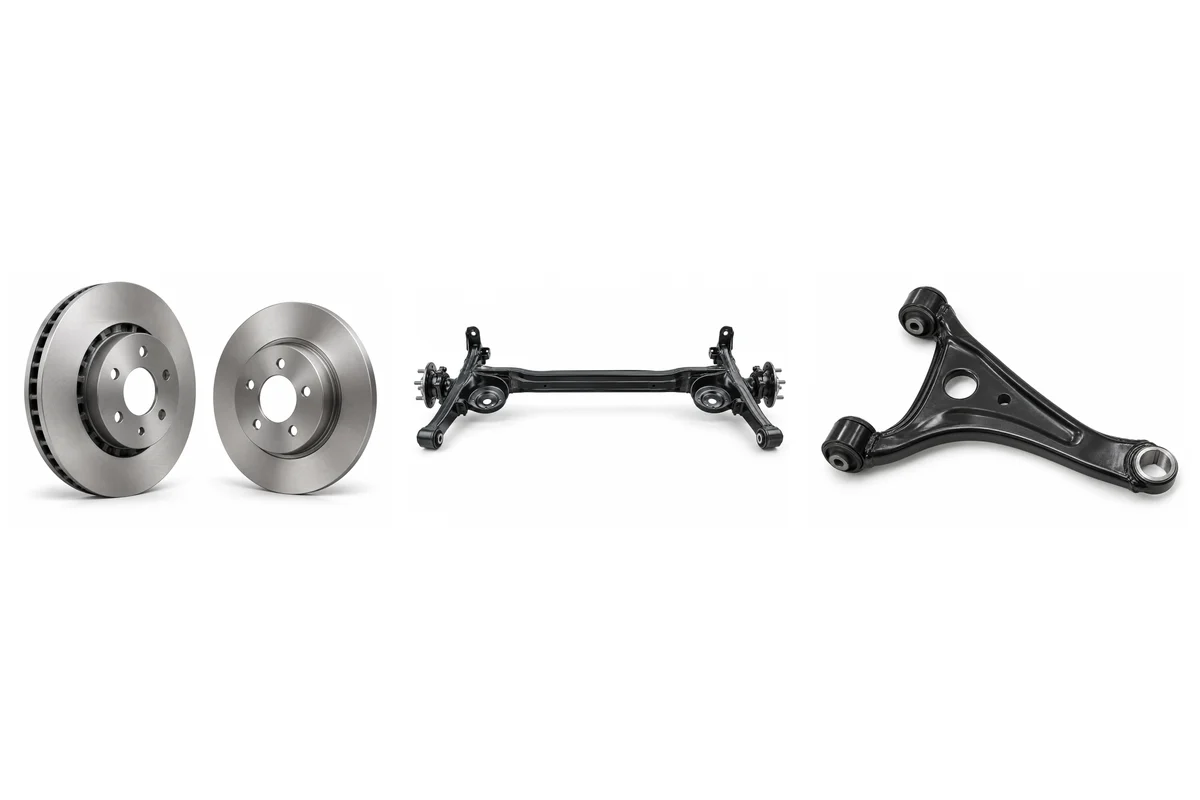

BYD Dolphin Brakes & Rear Suspension Selection
Identify the Dolphin rear suspension before ordering carriers, arms, springs or dampers.
Choose the rear layout before rear components
Torsion-beam and multi-link vehicles use different structural assemblies; battery capacity alone cannot separate them. Keep a clear installed rear-axle image with the vehicle record.
Build a torsion-beam order by attachment
For a confirmed beam vehicle, compare the beam pivots, spring seats, damper attachments and hub mounting interfaces. Decide whether the request is for a bare beam or an equipped assembly. Hubs, brakes and bushes should be explicit contents rather than assumed from an assembly photograph.
Locate each multi-link arm
For a multi-link vehicle, identify each rear link by its installed position and side. Use the carrier and adjacent joints to establish orientation. Do not convert a rear-arm request into a torsion-beam quotation, or infer that an entire set is needed from one damaged link.
Separate front hub and brake boundaries
A front wheel hub flange and its pressed bearing may have separate material references, while a rear hub may be sold as a unit. Compare encoder and wheel-position requirements. Disc, caliper body, carrier and parking motor references also describe different supply scopes.
Retain front-drive identification
Keep front CV shafts separated by side and electric drive-unit record. Rack, knuckle and joint interfaces need their own checks even after the correct chassis layout is known. Request qualified inspection where collision damage affects mounting datums.
Connected assembly checks
Keep Brake Pads and Brake Discs matched to the installed Brake Caliper, then identify the Brake Hose by the same wheel corner and fitting orientation.
A rear brake order may separate the Parking Brake Actuator from the Brake Caliper; record the axle-specific Brake Pads and Brake Discs without assuming they are included in the caliper assembly.
During wheel-corner identification, compare the ABS Wheel Speed Sensor with the encoder on the Wheel Hub Bearing and its mounting at the Steering Knuckle. Keep the tire-mounted TPMS Sensor on a separate electrical identification record.
Components to identify separately
| Assembly | Selection evidence |
|---|---|
| Brake Pads | Front or rear axle, pad profile, caliper and friction specification |
| Brake Discs | Axle, rotor diameter, minimum thickness, height and hub drilling |
| Brake Caliper | Wheel position, carrier, piston and parking-brake arrangement |
| Brake Hose | Wheel location, hose length, end fittings and retaining clips |
| ABS Wheel Speed Sensor | Wheel corner, sensor seat, connector key and lead clips |
| TPMS Sensor | Original sales market, radio protocol, valve and relearn compatibility |
| Parking Brake Actuator | Rear caliper marking, coupling, connector and sealing interface |
| Shock Absorber | Front strut or rear damper, suspension layout, side and brackets |
| Strut Mount | Front mounting plate, bearing, stud spacing and insulator contents |
| Coil Spring | Axle, vehicle load specification, end profile and spring markings |
| Control Arm | Front lower or rear link, chassis layout, side and joint contents |
| Ball Joint | Arm attachment, taper diameter, stud thread and supplied fixings |
| Tie Rod End | Inner or outer joint, rack thread, side and adjustment length |
| Stabilizer Link | Axle, pin-to-pin length, joint orientation and thread |
| Stabilizer Bar | Axle, bar bends, diameter, clamp spacing and end eyes |
| Wheel Hub Bearing | Front flange and bearing or rear unit, bolt pattern and encoder |
| CV Axle | Front side, motor-drive specification, shaft length and splines |
| Steering Rack | LHD or RHD, rack mounting, input shaft and tie-rod package |
| Drive Unit Mount | Left, right or rear location, bracket geometry and rubber stiffness |
| Subframe | Front carrier or multi-link rear carrier, mounting datums and included brackets |
| Steering Knuckle | Front side, bearing bore, strut clamp and ball-joint seat |
| Rear Axle Beam | Torsion-beam vehicle only, pivot spacing, spring seats and hub interfaces |
Continue the parts list
Return to the Dolphin system directory for other assemblies. Use the OE and VIN checklist for missing identification and the quotation guide for commercial and freight records.
