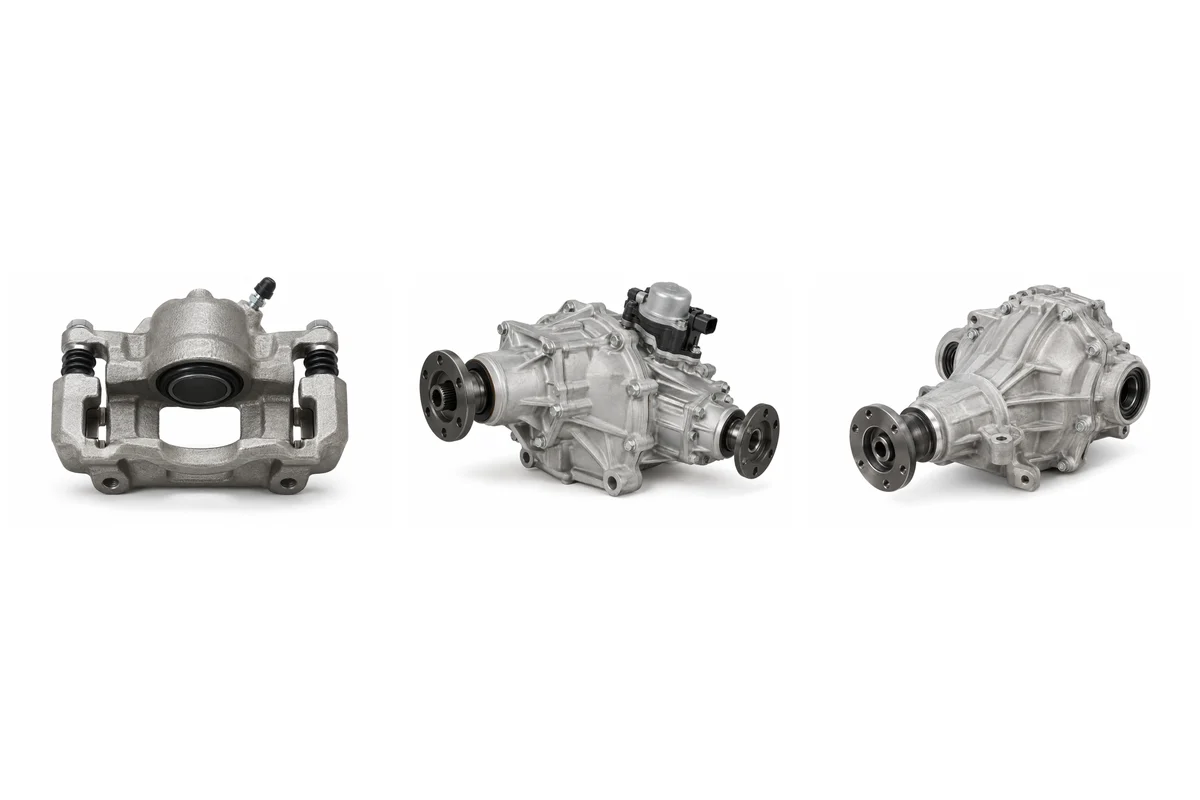

Kia Sorento Brakes, Steering & Driveline
A Sorento chassis order needs the generation, driven axles, steering assistance and actual brake equipment.
Start with axle position and driveline architecture
First-generation longitudinal four-wheel-drive components and later transverse AWD components require separate catalog records. Photograph the installed housings, flanges and actuator labels before comparing assemblies.
Distinguish service braking from parking braking
Disc pads, discs and calipers form the service-brake selection record. Drum-in-hat parking shoes are not evidence of a hydraulic rear service-drum system. Cable mechanisms and electric parking actuators also need identification from the installed equipment, not from trim names alone.
Match the ABS Wheel Speed Sensor and Wheel Hub Bearing encoder arrangement on the same wheel position.
Keep transfer and final-drive functions separate
A selectable transfer case, transverse transfer unit, propeller shaft, final drive and AWD coupling perform different jobs. Record shaft interfaces and the correct axle position; verify ratios when selecting a differential. A rear coupling is not a substitute for the differential gear carrier.
Agree the supplied suspension and steering assembly
Record damper position and mounting style before requesting springs or upper mounts. Establish whether a control arm includes its ball joint and bushings. Hydraulic pump requests require confirmed hydraulic assistance; electric steering equipment is not covered by a pump-shaped visual reference.
Components to identify separately
| Assembly | Selection evidence |
|---|---|
| Brake Pads | Axle, caliper family, backing-plate outline and friction specification |
| Brake Discs | Axle, diameter, thickness, offset and parking-brake interface |
| Parking Brake Shoes | Drum-in-hat parking equipment, shoe arc, width and adjuster |
| Brake Caliper | Axle, side, piston diameter, bracket and parking mechanism |
| Brake Master Cylinder | Bore, hydraulic ports and brake-assist architecture |
| Brake Booster | Vacuum versus electrified assist and master-cylinder interface |
| Brake Hose | Wheel position, fitting thread, routing and bracket locations |
| ABS Wheel Speed Sensor | Wheel position, connector, cable routing and encoder system |
| Parking Brake Cable | Mechanical parking-brake routing, effective length and end fittings |
| Parking Brake Actuator | Electric parking mechanism, connector and caliper or module version |
| Shock Absorber | Axle, strut or damper construction, mounting and suspension equipment |
| Strut Mount | Front strut tower pattern, bearing and spring-seat interface |
| Coil Spring | Axle, installed ride-height specification and vehicle load |
| Control Arm | Axle, side, mounting span and ball-joint contents |
| Ball Joint | Taper, retaining method and control-arm application |
| Tie Rod End | Inner or outer joint, thread direction and steering mechanism |
| Stabilizer Link | Axle, joint orientation, fixing thread and centre distance |
| Wheel Hub Bearing | Driven or non-driven hub, encoder and flange dimensions |
| CV Axle | Side, transmission output, spline and shaft length |
| Steering Rack | Rack-equipped generation, LHD or RHD and assist type |
| Power Steering Pump | Hydraulic-assist application, drive pulley and pressure ports |
| Engine Mount | Engine, installed position and bracket or hydraulic construction |
| Transmission Mount | Gearbox code, mounting position and bracket offset |
| Propeller Shaft | 4WD or AWD application, wheelbase, flanges and support bearing |
| Front / Rear Differential | Axle position, longitudinal or transverse driveline, ratio and flange |
| Transfer Case / Transfer Unit | Early selectable 4WD versus later transverse AWD transfer unit |
| AWD Coupling | Later on-demand AWD rear coupling, control and differential interface |
| Front Subframe | Generation, engine cradle, steering mounts and suspension pickup points |
Continue your parts list
Return to the Sorento parts directory for other systems. The OE and VIN checklist covers missing identification, while the quotation guide covers commercial and freight information.
