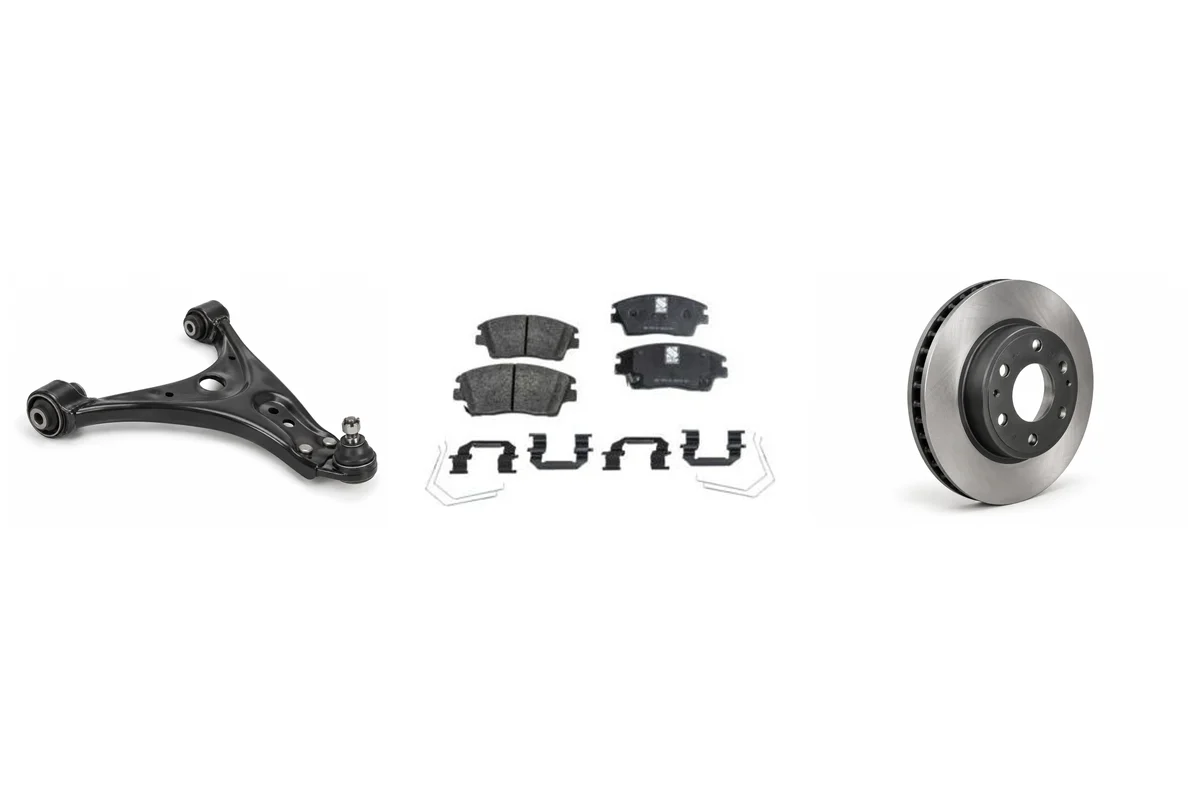

Kia Sportage Brakes, Steering & AWD Parts
Distinguish hydraulic service brakes, mechanical parking-brake shoes and electric parking-brake equipment.
Identify the brake architecture
For older service drums, identify drums, shoes and wheel cylinders together. For rear discs, establish whether parking shoes or a caliper-mounted mechanism is installed.
Keep axle and suspension equipment together
Record axle, side, vehicle load and any electronic damping features. A complete strut includes more than a damper, while a control-arm quotation may or may not include its ball joint. Compare supplied contents before treating two prices as equivalent.
Match the ABS Wheel Speed Sensor and Wheel Hub Bearing encoder arrangement on the same wheel position.
Steering mechanism before replacement
Use the installed mechanism to distinguish early steering gear, hydraulic-assist equipment and later racks or electric assist. LHD/RHD, shaft interfaces and mounting positions remain necessary even when a replacement housing looks familiar.
Separate early 4WD from later AWD
A selectable-4WD transfer case is not the same as a later transverse AWD transfer unit. For propeller shafts and rear differentials, retain wheelbase, flange and ratio information. Identify the rear coupling independently when it is separately replaceable.
Components to identify separately
| Assembly | Selection evidence |
|---|---|
| Brake Pads | Axle, caliper family, backing-plate outline and friction specification |
| Brake Discs | Axle, diameter, thickness, offset and parking-brake interface |
| Brake Shoes | Service drum versus drum-in-hat parking brake and shoe dimensions |
| Brake Drums | Older rear service-drum application, internal diameter and hub format |
| Brake Caliper | Axle, side, piston diameter, bracket and parking mechanism |
| Brake Master Cylinder | Bore, hydraulic ports and brake-assist architecture |
| Brake Booster | Vacuum versus electrified assist and master-cylinder interface |
| Brake Hose | Wheel position, fitting thread, routing and bracket locations |
| Brake Wheel Cylinder | Older service-drum bore, mounting bolts and pipe union |
| ABS Wheel Speed Sensor | Wheel position, connector, cable routing and encoder system |
| Parking Brake Cable | Mechanical parking-brake routing, effective length and end fittings |
| Parking Brake Actuator | Electric parking mechanism, connector and caliper or module version |
| Shock Absorber | Axle, strut or damper construction, mounting and suspension equipment |
| Strut Mount | Front strut tower pattern, bearing and spring-seat interface |
| Coil Spring | Axle, installed ride-height specification and vehicle load |
| Control Arm | Axle, side, mounting span and ball-joint contents |
| Ball Joint | Taper, retaining method and control-arm application |
| Tie Rod End | Inner or outer joint, thread direction and steering mechanism |
| Stabilizer Link | Axle, joint orientation, fixing thread and centre distance |
| Wheel Hub Bearing | Driven or non-driven hub, encoder and flange dimensions |
| CV Axle | Side, transmission output, spline and shaft length |
| Steering Rack | Rack-equipped generation, LHD or RHD and assist type |
| Power Steering Pump | Hydraulic-assist application, drive pulley and pressure ports |
| Engine Mount | Engine, installed position and bracket or hydraulic construction |
| Transmission Mount | Gearbox code, mounting position and bracket offset |
| Propeller Shaft | 4WD or AWD application, wheelbase, flanges and support bearing |
| Rear Differential | Driven rear axle, final-drive ratio, flange and coupling interface |
| Transfer Case / Transfer Unit | Early selectable 4WD versus later transverse AWD transfer unit |
| AWD Coupling | Later on-demand AWD rear coupling, control and differential interface |
| Front Subframe | Generation, engine cradle, steering mounts and suspension pickup points |
Continue your parts list
Return to the Sportage parts directory for other systems. The OE and VIN checklist covers missing identification, while the quotation guide covers commercial and freight information.
