Write front/rear and left/right on every relevant line; define pairs explicitly rather than relying on quantity.
Chassis buying guide

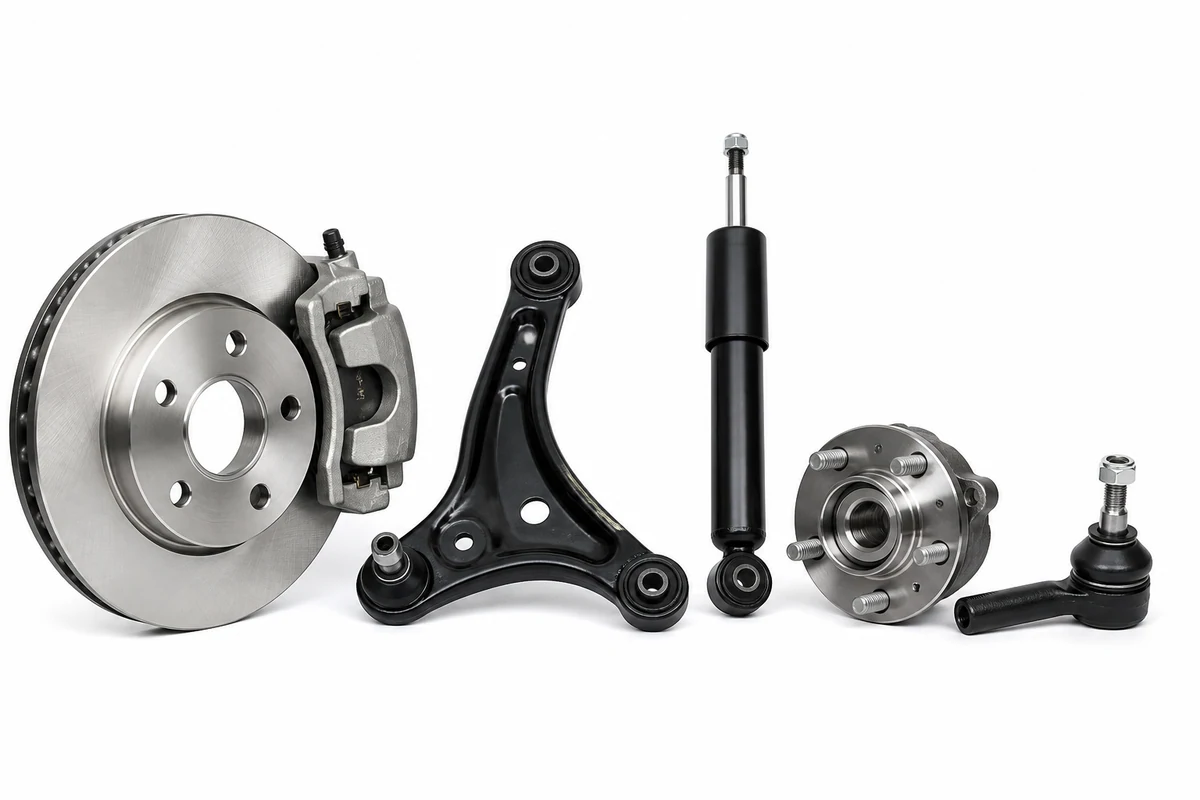

Toyota Corolla Brake, Suspension & Steering Parts Guide
Organize Corolla chassis requests by axle, side, brake package, drivetrain and steering market to prevent visually similar parts from being combined.
Decision workflow
Turn a broad Corolla request into traceable inquiry lines.
Record disc or drum rear brakes, rotor dimensions, caliper shape, ABS encoder and parking-brake arrangement.
Add arm position, joint taper, mount pattern, spring or damper specification, hub spline and drive type.
Steering racks, tie rods and some brake-system interfaces require the exact steering market.
Evidence hierarchy
Use the strongest evidence available without making OE mandatory.
VIN/chassis context, build date, market, body and drivetrain define the application boundary.
An OE/reference is useful when available; complete label, interfaces, position, dimensions and old-part photos can also support identification.
Quantity, grade, sample status, packing, destination and approved alternatives define what is actually being quoted.
Related Corolla parts
Choose the exact product family after confirming the system.
Compare the part-specific fitment and evidence requirements before adding an item to the wholesale list.
Related part pages
Brake System
Corolla brake components separated by axle, brake package and exact vehicle specification.

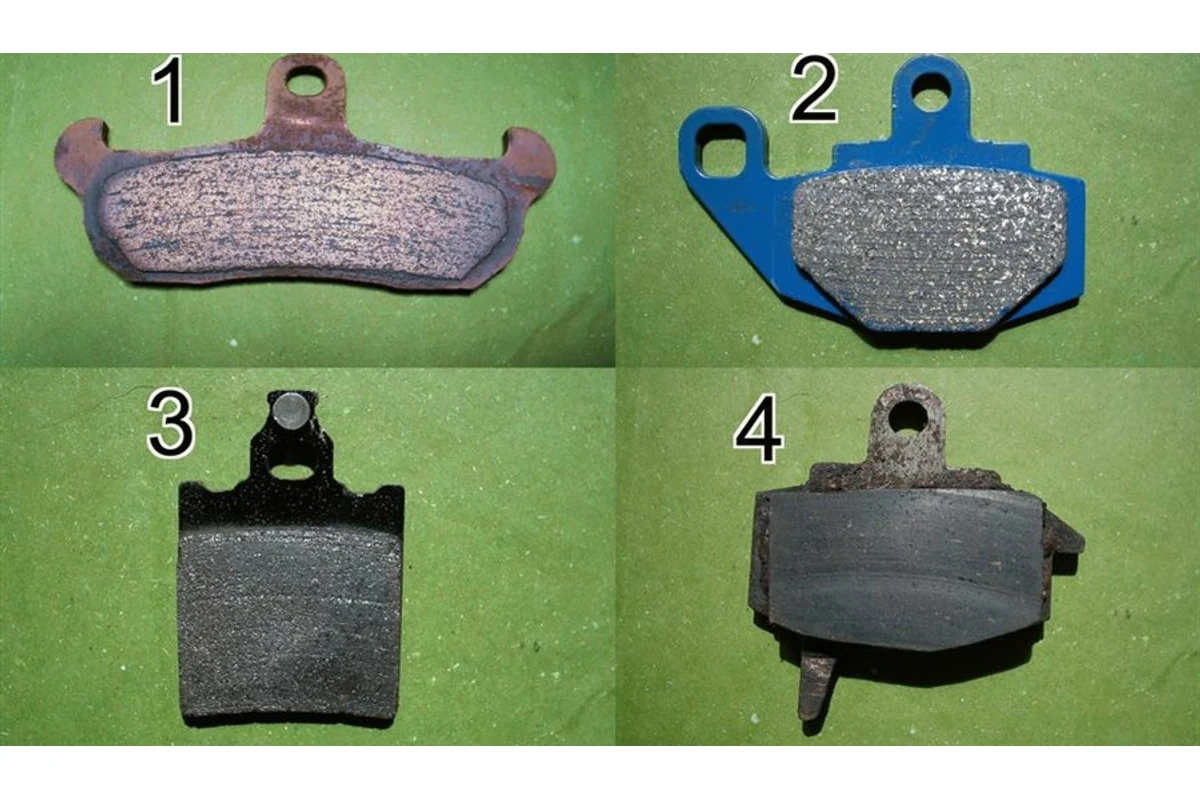

Corolla Brake PadsAxle, pad outline, clips, wear provision, caliper and brake package must match.
Corolla Brake DiscsFront/rear, diameter, thickness, hub height, bolt pattern and wheel/brake package must match.
Corolla Brake ShoesOnly applicable drum-brake systems; shoe diameter, width, adjuster and parking-brake layout must match.
Corolla Brake DrumsOnly applicable rear-drum versions; diameter, width, hub arrangement, stud pattern and ABS provision must match.
Corolla Brake CaliperAxle, left/right side, piston, bracket, hose port and parking-brake mechanism must match.
Corolla Brake Master CylinderABS/VSC system, bore, ports, reservoir, booster interface and LHD/RHD application must match.
Corolla Brake BoosterGasoline, diesel and hybrid brake-assist systems, LHD/RHD, mounting and master-cylinder interface must be separated.
Corolla Brake HoseFront/rear, side, length, end fittings, brackets and production revision must match.
Corolla ABS Wheel Speed SensorFront/rear, left/right, connector, lead length, mounting and encoder compatibility must match.Related part pages
Suspension, Steering & Driveline
Corolla chassis parts matched by axle, side, drivetrain, steering market and mounting details.
Corolla Shock AbsorberFront/rear, left/right where applicable, body/drivetrain, mounting and suspension package must match.
Corolla Strut MountFront/rear, side, bearing inclusion, bolt pattern and suspension package must match.
Corolla Coil SpringFront/rear, engine or hybrid weight, body style, trim, wire diameter and free length must match.
Corolla Control ArmFront/rear, left/right, upper/lower, bushing and ball-joint inclusion and mounting dimensions must match.
Corolla Ball JointPosition, taper, stud size, mounting pattern and control-arm or knuckle application must match.
Corolla Tie Rod EndInner/outer, left/right thread where relevant, taper, thread size, steering rack and LHD/RHD must match.
Corolla Stabilizer LinkFront/rear, side where specified, length, ball-joint orientation and suspension package must match.
Corolla Wheel Hub BearingFront/rear, driven/non-driven axle, spline, studs, flange and ABS encoder must match.
Corolla CV AxleLeft/right, transmission, engine, ABS ring, spline counts, compressed length and FWD/AWD must match.
Corolla Steering RackLHD/RHD, electric or hydraulic assist, connector/ECU scope, mounts and tie-rod interface must match.
Corolla Engine MountEngine, hybrid/non-hybrid layout, mount position, hydraulic/solid type and bracket inclusion must match.
Corolla Transmission MountManual, automatic, CVT and hybrid transaxles use different mounts; transmission code and bracket scope must match.Continue checking
Other Corolla buyer guides.
All Toyota Corolla PartsCompare maintenance, brake, chassis, powertrain, body and lighting parts.Toyota Corolla Generations, Chassis Codes & Market Versions GuideSeparate Corolla generations, chassis families, body styles and regional sales versions before turning a model-name request into a parts list.Toyota Corolla Gasoline vs Hybrid Parts Buying GuideSeparate gasoline, diesel where sold, and hybrid Corolla systems before ordering engine, cooling, charging, starting, fuel or A/C parts.Toyota Corolla Maintenance Parts Buying GuideBuild a repeatable Corolla service-parts list by engine, transmission, filter dimensions and replacement interval instead of buying one generic kit.
