Tiggo 8 / Pro / Pro Max • Petrol, PHEV / CSH identified separately
Chery Tiggo 8 Body, Facelift & Door Equipment
Keep full front and rear photographs with build label and original market.
Begin a body order with both vehicle ends
Ordinary Tiggo 8, Pro, Pro Max and CSH fronts and rears need their actual panel interfaces. A matching sales suffix or wheelbase cannot approve an entire facelift kit.
Treat the main grille and bumper skin separately
The main grille, cover, smaller trims and lamp openings have different quotation contents. Preserve badge/camera seats and sensor or radar apertures against the fitted fascia. Plastic cover supply does not automatically include the electronic equipment occupying those openings.
Identify lamp sections and original beam market
Headlamps require side, LHD/RHD beam, technology, mounting and module contents. Rear lighting can have outer and hatch sections even when the visual treatment spans the full vehicle width. Independent fog function must be established rather than inferred from a DRL or decorative opening.
Keep door identity with all mechanisms
Record front/rear and left/right before selecting shell, regulator, handle, latch or mirror. Retain keyless, anti-pinch, folding, heating, memory and camera functions where fitted. A painted shell or familiar socket does not establish that an equipped mechanism has the same functions.
Document actual hatch lift and wiping equipment
Gas supports and powered spindles need their own length, force or drive marking and mounting ends. Remote unlocking does not prove powered lifting. Rear latch and rear wiper requests retain separate release, shaft and washer interfaces; a bare hatch shell does not include them by default.
Protect interfaces as well as painted surfaces
Agree finish, carton size and nesting limits before comparing freight for panels and large covers. Support hinges, tabs, flanges and fragile grille slats without distorting them. Keep camera calibration and sensor bracket identity with the order, and itemize small clips or seals under their identified parent assembly.
Connected selection questions
Keep headlights mounting and beam market with the actual front bumper fascia.
Compare the adjoining fender lamp edge against the same build photograph.
The hood / bonnet leading edge and latch belong to the accepted front revision.
Identify the main front grille independently from the front bumper skin and smaller trims.
Confirm an independent fog function before adding fog lights.
The front grille and front bumper still retain their own perimeter and opening geometry.
Assemblies to identify separately

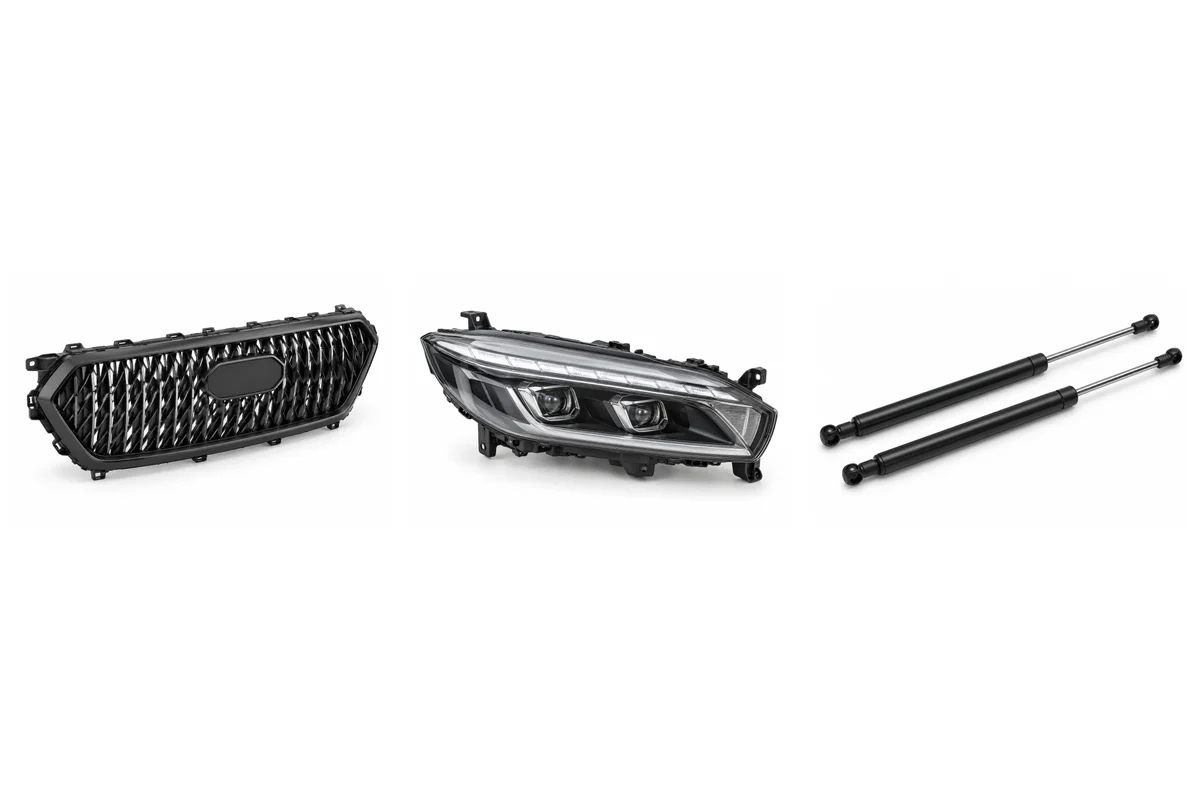

| Assembly | Application | Selection record |
|---|---|---|
| Headlights | Actual front revision, side and beam market | Build, LHD/RHD beam, lamp technology, modules and sockets |
| Tail Lights | Exact rear body and lamp section | Side, outer/hatch section, function, socket and mounting |
| Fog Lights | Only a fitted independent fog-lamp function | Location, bumper revision, lamp type, socket and bracket |
| Front Bumper | Actual front cover and equipped fascia | Full front photo, build, grille/lamp/sensor openings and finish |
| Rear Bumper | Exact rear cover and installed equipment | Build, reflector/sensor openings, lower trim and mounting |
| Front Grille | Identified main grille and front-body revision | Outline, finish, upper/lower position, badge and equipment seats |
| Side Mirror | Exact door, side and steering market | Socket, folding/heating, camera/indicator and mounting base |
| Fender | Exact side and front-body revision | Lamp/bumper edges, arch profile, trim holes and finish |
| Hood / Bonnet | Identified bonnet panel and latch arrangement | Build, edge geometry, hinges, latch and insulation seats |
| Tailgate Shell | Actual rear hatch and equipment revision | Glass opening, lamp, hinge, latch and support interfaces |
| Door Shell | Exact front/rear door and side | Opening, hinges, latch, glass carrier and mirror interfaces |
| Window Regulator | Exact door/side and glass mechanism | Rail/cable geometry, carrier, motor and socket |
| Door Lock Actuator | Installed door latch and locking equipment | Door/side, cable ends, socket and keyless application |
| Door Handle | Exact exterior handle and equipment | Door/side, key cylinder, carrier, keyless socket and finish |
| Tailgate Lock Actuator | Identified rear latch and release equipment | Latch label, mounting, striker, socket and release |
| Tailgate Support / Lift Strut | Actual gas support or verified powered lift unit | Length, force/drive label, end fittings and hatch equipment |
| Front Wiper Motor & Linkage | Actual windscreen mechanism and steering market | Motor, pivot pattern, linkage, mounting and sweep |
| Rear Wiper Motor | Exact hatch glass and rear wipe equipment | Shaft, socket, mounting, sweep and washer arrangement |
| Washer Pump | Identified reservoir and front/rear wash circuit | Seat, grommet, outlet count, socket and function |
| Washer Reservoir | Actual front-body cavity and wash equipment | Bottle, filler path, pump seats, sensor and brackets |
| Fender Liner | Exact wheel corner and fascia revision | Side, arch form, openings, clips and material |
| Underbody Shield | Identified lower engine/body protection panel | Powertrain, panel profile, fasteners and service apertures |
| Parking Sensor | Actual ultrasonic bumper equipment | Position, marking, socket, bracket and orientation |
| Reversing Camera | Identified rear-view or surround-view video system | Housing, lens, socket, bracket and video identity |
Continue the order
Return to the Tiggo 8 grouped parts directory. For quantities and commercial fields, use parts-list quotation preparation rather than inferring price or stock from a reference number.
