Tiggo 8 / Pro / Pro Max • Petrol, PHEV / CSH identified separately
Chery Tiggo 8 Chassis, Brakes & AWD Selection
Record front/rear, left/right and driven axle alongside the fitted brake package.
Use the actual wheel corner as the starting point
Measure rotors and photograph pad backing plates and caliper markings. A wheel-size description cannot select the accepted friction shape, carrier or wheel sensor for all Tiggo 8 versions.
Separate suspension geometry from drivetrain labels
Australian petrol Pro Max and Super Hybrid examples have front struts and rear multi-link suspension. Multi-link does not prove AWD, and FWD does not imply a torsion beam. Identify the actual rear arms, carrier and wheel upright before selecting a complete chassis order.
Retain spring and damper load specifications
Seven seats, fuel powertrain and a hybrid battery affect vehicle use and load records, but do not select a spring rate by themselves. Keep fitted markings, axle, mounting geometry and accepted damper specification. Complete strut contents must identify mount, bearing and spring inclusion explicitly.
Distinguish flange, bearing and wheel-end assembly
A bare hub flange and a sealed complete unit have different replacement contents. Record spline, encoder, bearing seat and corner before agreeing the supply boundary. Tie rods, ball joints and links also need their own joint-retention and mounting records rather than borrowing a complete-arm reference.
Keep conventional mechanical AWD requests together
A confirmed petrol AWD order can include an identified propeller shaft, transverse angle-drive and rear differential. Preserve gearbox pairing, flange pattern, ratios and coupling contents. A rear electric-drive CSH build is not covered by these conventional assemblies just because it also has AWD.
Specify brake assistance and EPB contents independently
An EPB-equipped rear caliper can be quoted complete or motor-only after its drive interface is identified. Master cylinder and booster requests need the actual hydraulic/assist record, especially on plug-in vehicles. Hoses and wheel pickups retain position-specific routing and sealing requirements.
Connected selection questions
Use the fitted brake caliper and axle to compare brake pads backing plates.
Measure the associated brake discs rather than choosing them from wheel size.
The brake hose must follow the actual corner and fluid port of the brake caliper.
A motor-only parking brake actuator retains its separate rear-caliper output drive.
Confirm the hydraulic brake master cylinder with its installed brake booster assist equipment.
Each brake hose still needs an independent corner and routed length.

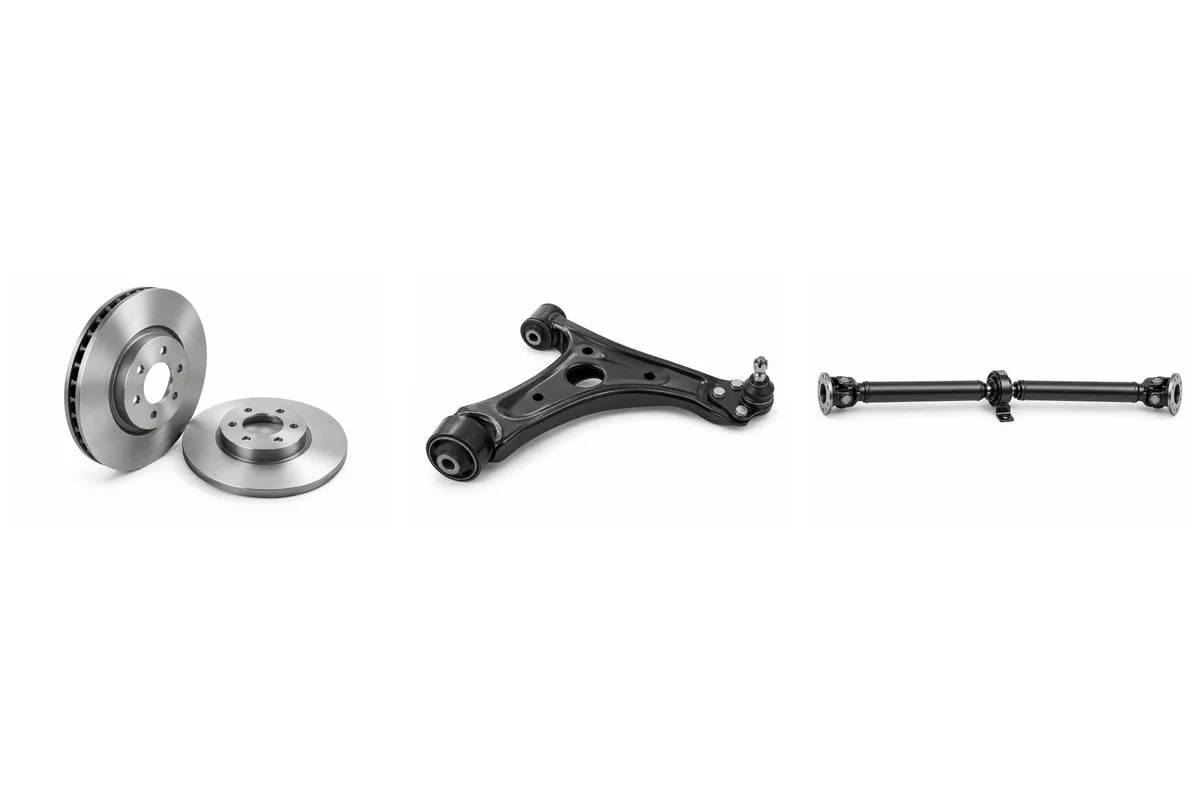

Assemblies to identify separately
| Assembly | Application | Selection record |
|---|---|---|
| Brake Pads | Installed axle and disc brake package | Axle, backing plate, caliper, shims and friction grade |
| Brake Discs | Actual wheel corner and fitted brake hardware | Diameter, thickness, hat height, centre bore and venting |
| Brake Caliper | Exact hydraulic corner and parking-brake design | Casting, carrier, piston, fluid port and actuator interface |
| Brake Master Cylinder | Confirmed hydraulic brake-system identity | Cylinder label, bore, ports, mounting and reservoir seat |
| Brake Booster | Installed assist assembly; hybrid checked independently | Assist type, label, stud spacing and pushrod interface |
| Brake Hose | Exact hydraulic corner and installed routing | Union threads, fitting angles, brackets and routed length |
| ABS Wheel Speed Sensor | Identified wheel pickup and encoder system | Corner, full marking, socket, lead route and pickup depth |
| TPMS Sensor | Installed pressure-monitoring radio system | Sensor label, frequency, protocol, valve and wheel seat |
| Parking Brake Actuator | Motor-only request for the actual rear caliper | Caliper label, output drive, socket and fastening |
| Shock Absorber / Strut | Actual axle/corner and suspension package | Side, mounting, spring seat, stroke and load specification |
| Strut Mount | Identified upper strut or damper support | Stud pattern, central sleeve, bearing and spring seat |
| Coil Spring | Axle and actual suspension/load class | Spring marking, ends, dimensions and vehicle load record |
| Control Arm | Exact front or rear multi-link arm location | Axle/side, mounting centres, bushes and joint contents |
| Ball Joint | Only a confirmed independently replaceable joint | Arm retention, stud taper, mounting and fixing |
| Tie Rod End | Installed rack and inner/outer steering joint | Rack marking, thread, offset, adjustment and taper |
| Stabilizer Link | Identified anti-roll bar and axle position | Joint-centre length, stud angle and motion clearance |
| Wheel Hub / Bearing | Actual front or rear wheel-end format | Flange, bearing contents, spline and ABS encoder |
| CV Axle / Drive Shaft | Identified driven corner and gearbox/drive unit | Side, spline, working length, joints and seal land |
| Steering Rack | Actual steering market and assist layout | Rack label, mounting, ratio, joints and interfaces |
| Engine Mount | Exact engine-side support and mounting position | Engine label, bracket, position and mount design |
| Transmission Mount | Identified MT/CVT/DCT/DHT support | Gearbox label, body pickups, bracket and isolator |
| Subframe | Actual front carrier or rear multi-link support | Axle, build, suspension pickups and drivetrain interfaces |
| Steering Knuckle | Exact wheel upright and carrier | Corner, bearing format, strut, arm and brake mounts |
| AWD Propeller Shaft | Confirmed mechanical AWD longitudinal shaft only | Vehicle/gearbox, flange patterns, length, joints and supports |
| AWD Transfer Unit | Installed mechanical AWD power-transfer unit | Gearbox pairing, casting, ratio, output and mounting |
| AWD Rear Differential | Confirmed mechanical rear final-drive assembly | Unit label, ratio, coupling, flanges and carrier mounts |
Continue the order
Return to the Tiggo 8 grouped parts directory. For quantities and commercial fields, use parts-list quotation preparation rather than inferring price or stock from a reference number.
