Tiggo 8 / Pro / Pro Max • Petrol, PHEV / CSH identified separately
Chery Tiggo 8 Injection, Turbo & Electrical Selection
The earlier Russian 2.0T example uses port injection, while later TGDI and identified direct-injection hybrid engines have different pressure equipment.
Identify injection architecture before fuel components
Preserve the engine/rail record before selecting injectors or an engine-mounted high-pressure pump. Turbocharging alone does not establish direct injection.
Separate tank delivery from engine pressure generation
A tank module may include sender, strainer and pump insert. Specify those contents against its flange, outlet and marking. The direct-injection high-pressure stage has a mechanical drive and different unions; it is not a second version of the same low-pressure tank assembly.
Retain the turbo and charge-air path together
Match turbo label, actuator, exhaust flanges and oil/coolant connections with the engine. Trace charge-air ports and any exchanger mounting before accepting an intercooler. Older 2.0T, later TGDI and hybrid engine records remain separate even where their front packs look alike.
Locate each sensor by its actual role
Upstream and downstream exhaust pickups have different control functions. Manifold and charge-air pressure positions, crank triggers and intake/exhaust cam pickups each need a complete marking and connector record. A diagnosis code or terminal count does not establish the replacement component.
Restrict conventional charging and starting assemblies
An ordinary petrol alternator needs output, pulley, bracket and control-plug identity. A pinion starter needs engine/gearbox, fixing and ring-gear interface. Neither item is approved for Pro e+ or CSH merely because a combustion engine remains present; retain the installed hybrid starting/charging record separately.
Keep electrical and fuel packing boundaries explicit
Protect sensor tips, sockets and actuator connections while keeping accepted labels traceable. Cap fuel and fluid ports and agree dry transport condition where necessary. The quotation should identify individual versus engine-set quantities without claiming an unverified calibration, output or universal fit.
Connected selection questions
Identify exhaust control position for the oxygen sensor.
Intake MAP / intake pressure sensor and throttle body requests instead need their actual engine locations and actuator or signal record.
Separate the camshaft position sensor mounting from the crankshaft position sensor trigger.
Keep the ignition coil selection tied to the accepted ignition system, not a trigger complaint.
The tank fuel pump / tank module handles low-pressure delivery.
Only confirmed direct injection supports an engine-mounted high-pressure fuel pump; match the fuel injector to that actual pressure architecture.
Assemblies to identify separately
| Assembly | Application | Selection record |
|---|---|---|
| Oxygen Sensor | Exact combustion engine and emissions market | Upstream/downstream role, full label, lead and socket |
| MAP / Intake Pressure Sensor | Identified manifold or charge-air measuring position | Engine, pressure range, label, mounting and socket |
| Crankshaft Position Sensor | Actual engine crank trigger | Full label, depth, fixing and electrical interface |
| Camshaft Position Sensor | Exact engine and cam sensing position | Intake/exhaust position, label, depth and mounting |
| Fuel Pump / Tank Module | Identified low-pressure tank-delivery stage | Tank flange, socket, sender, outlet and module marking |

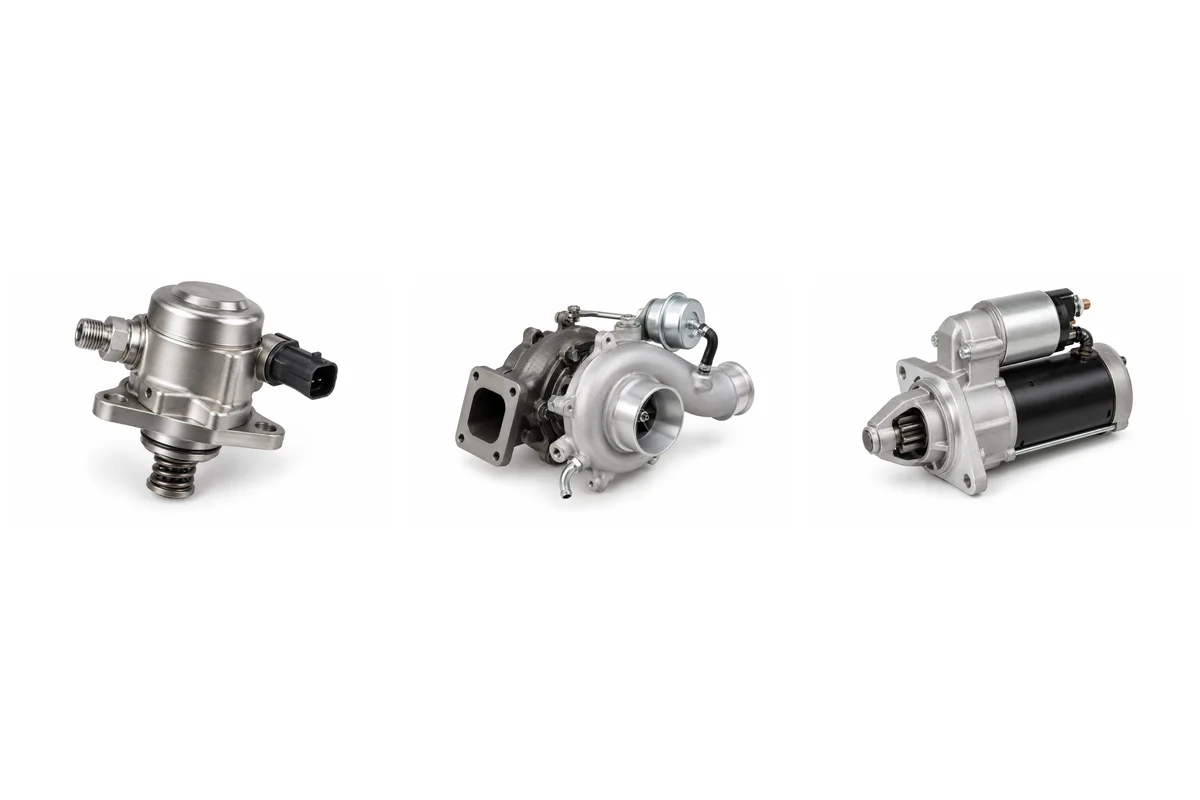

| High-Pressure Fuel Pump | Confirmed direct-injection combustion engine only | Engine and pump label, mounting, drive and fuel unions |
| Fuel Injector | Exact port/direct injection system | Engine, full marking, socket, rail and nozzle interface |
| Throttle Body | Installed combustion-engine intake | Bore, flange, actuator, socket and hose connections |
| Alternator | Confirmed conventional petrol charging unit only | Engine, output, bracket, pulley and control plug |
| Starter Motor | Confirmed conventional petrol starter only | Engine/gearbox, label, pinion, mounting and terminals |
| Turbocharger | Only an identified turbo engine and actuator | Engine, turbo label, fluid ports, actuator and flanges |
| Intercooler / Charge-Air Cooler | Actual turbo charge-air circuit | Core, air ports, hose joints and carrier mounting |
Continue the order
Return to the Tiggo 8 grouped parts directory. For quantities and commercial fields, use parts-list quotation preparation rather than inferring price or stock from a reference number.
Auto parts inquiry
Send the vehicle and part evidence.
Include brand, full model, year, engine or EV drivetrain, OE/material code, quantity, destination and packing request. You can attach a list or old-part photos.
