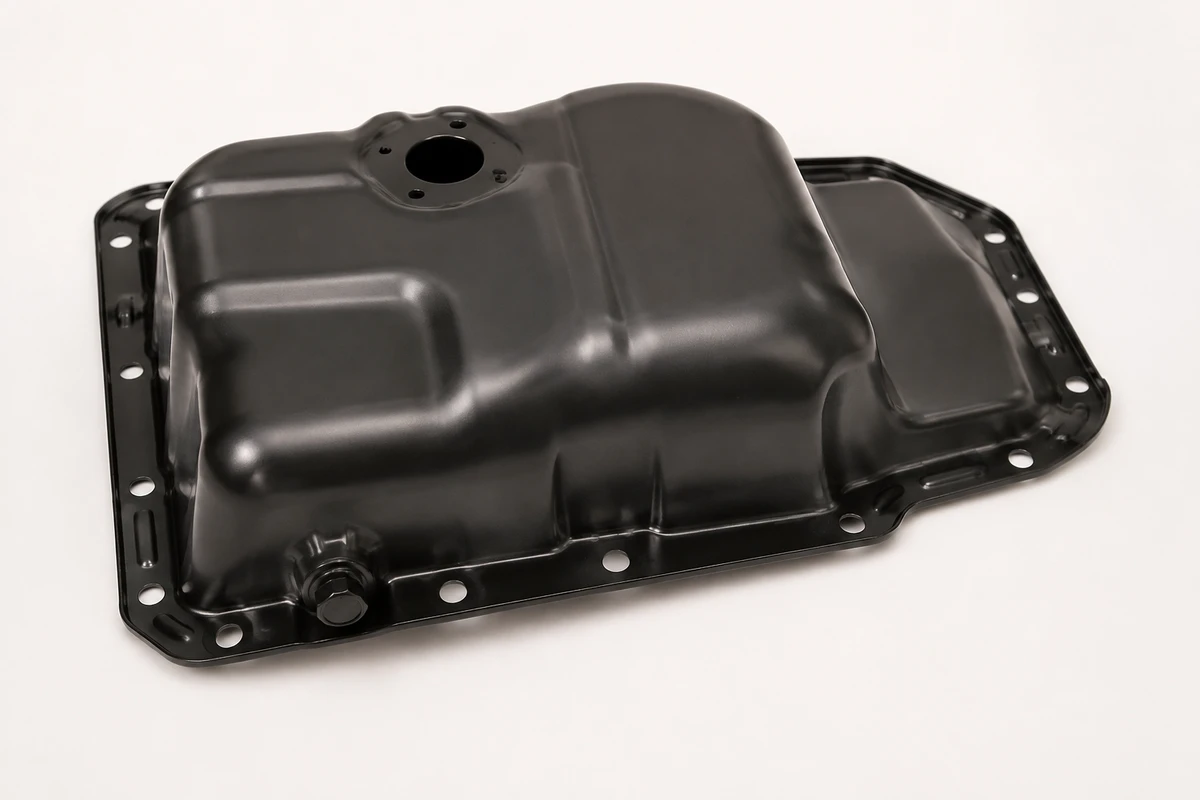

Hyundai Elantra Engine Oil Pan Wholesale

A similar sump outline does not confirm the sealing rail, drain position, lower crankcase depth or oil-level sensor provision.

For this engine oil pan, keep XD/HD/MD/AD/CN7 generation, body style, production date, engine or Hybrid system, transmission and sales market on the same record. The Elantra generation and Avante market guide explains why a regional name alone is insufficient.

When this component is part of a mixed system order, use the body, lighting & collision to separate neighboring assemblies.

Send overall and mounting or connection photographs. For the engine oil pan, retain sump depth, bolt pattern and drain position and gasket, plug and sensor contents; mark unknown values instead of borrowing a number from another generation. Use the OE and vehicle-identification checklist to organize the evidence.

Give every linked assembly its own specification; approving the engine oil pan does not confirm the surrounding parts.

Elantra Oil Filter — Thread, seal and bypass specification must stay with the exact engine; a broad Hyundai cross-reference is not universal Elantra proof. Confirm engine code and filter count and thread and gasket dimensions on its own order line.

Elantra Oil Cooler — Confirm whether the unit serves engine oil or CVT fluid; similar cores cannot be exchanged across circuits. Confirm engine or CVT fluid circuit and coolant and oil port layout on its own order line.

Elantra Engine Mount — Position and bracket geometry matter; a transmission-side support is not an engine-mount substitute. Confirm engine code and mount position and bracket and stud pattern on its own order line.

Elantra Radiator Support / Upper Tie Bar — Upper tie bar and full support assembly are different contents; mounting points must match lamps and cooling modules. Confirm generation and front-end revision and lamp, condenser and radiator mounting points on its own order line.

Elantra Fender Liner / Splash Shield — Left/right wheel arches and bumper interfaces differ; thin tabs must not be assumed from the outer fender shape. Confirm generation, side and wheel opening and bumper and under-cover interfaces on its own order line.

Elantra Valve Cover — Breather routing, coil wells, gasket profile and integrated valves must match the exact engine and production revision. Confirm engine and cylinder-head layout and breather ports, coil wells and bolt pattern on its own order line.

Before approving the engine oil pan, agree sample and inspection requirements using the quality-control checklist. Return to the Elantra parts directory for other systems.
