MG5 parts • petrol sedan, turbo and Electric estate identified separately

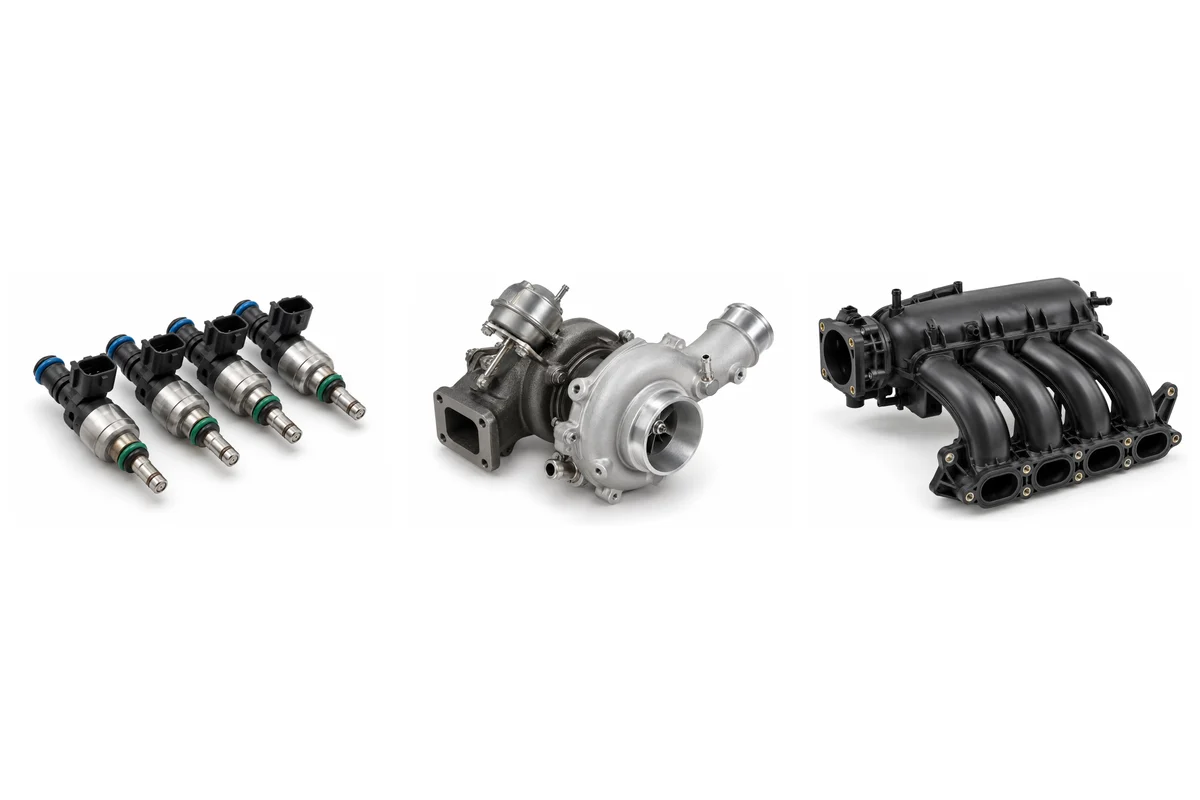

MG5 Petrol Engine, Fuel & Turbo Parts
Match MG5 petrol injection, intake, turbo and engine electrical parts. Separate actual engine codes, pressure systems and naturally aspirated applications.
Identify injection architecture before pumps and injectors
Port injection and direct injection require different rails, injectors, seals and delivery pressures. A turbo badge is not a substitute for an engine code, and newer naturally aspirated applications must be identified independently. Separate the tank module from an engine-driven high-pressure unit before comparing outlets, electrical markings or supply contents.
Trace intake air through the actual petrol installation
A naturally aspirated engine and turbo engine can use different air boxes, manifolds, pressure sensors and throttle interfaces. Retain flange, bore, sensor seat and full marking for every assembly. A similar three-pin connector does not establish pressure range, and an air-distribution manifold is not an EV thermal routing block.
Keep the turbocharger and charge-air cooler together in scope
A turbo request needs hot-side and cold-side joints, actuator control and oil/coolant provisions. Trace its charge-air pipes to the intercooler before identifying the core. No charge-air cooler is inferred for a naturally aspirated sedan or Electric estate, and a coolant radiator or A/C condenser is a different exchanger.
Retain exact engine sensing and exhaust position
A crank pickup, intake cam sensor and exhaust oxygen sensor serve different signals. Preserve engine marking, sensing seat and full connector with each request. Upstream mixture control and downstream monitoring may use different sensor systems; the Electric estate has no petrol exhaust oxygen-sensor application.
Agree bare and equipped engine contents clearly
A valve cover is not a cylinder head or complete ventilation system, and an oil pump is not a timing cover automatically. Keep lubrication paths, breather outlets and mounting faces with the exact engine. Conventional belt-driven alternators and pinion starters are petrol items, not Electric estate traction or converter equipment.
Related assembly decisions
Keep the engine air filter housing record with the accepted throttle body and intake manifold.
Their engine-air interfaces must follow the exact naturally aspirated or turbo installation, not a cabin-filter or Electric estate request.
An engine timing kit needs its own drive architecture and included gears.
The engine oil pump drive and camshaft position sensor signal record must remain separately identified; nearby engine parts are not automatic kit contents.
The tank fuel pump / tank module supplies its identified low-pressure circuit.
A direct-injection high-pressure fuel pump and matching fuel injector require the actual engine and pressure-class records, not turbocharging alone.
Identify the MAP / intake pressure sensor range and sensing seat with the accepted throttle body and intake manifold.
A shared three-pin socket cannot approve the same naturally aspirated or turbo intake control.
Assemblies to identify separately
| Assembly | Application boundary | Selection record |
|---|---|---|
| Oxygen Sensor | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Upstream/downstream role, full label, lead and socket |
| MAP / Intake Pressure Sensor | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Engine, pressure range, label, mounting and socket |
| Crankshaft Position Sensor | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Full label, depth, fixing and electrical interface |
| Camshaft Position Sensor | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Intake/exhaust position, label, depth and mounting |
| Fuel Pump / Tank Module | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Tank flange, socket, sender, outlet and module marking |
| High-Pressure Fuel Pump | Confirmed direct-injection petrol engine only, including separately identified newer naturally aspirated applications; not every 1.5L or turbo sedan | Engine and pump label, mounting, drive and fuel unions |
| Fuel Injector | Exact petrol injection architecture and pressure class; MPI and direct-injection units not interchangeable | Engine, full marking, socket, rail and nozzle interface |
| Throttle Body | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Bore, flange, actuator, socket and hose connections |
| Alternator | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Engine, output, bracket, pulley and control plug |
| Starter Motor | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Engine/gearbox, label, pinion, mounting and terminals |
| Turbocharger | Identified turbo petrol sedan only; naturally aspirated and battery-electric applications excluded | Engine, turbo label, fluid ports, actuator and flanges |
| Intercooler / Charge-Air Cooler | Identified turbo charge-air circuit only; not an engine coolant radiator or EV thermal exchanger | Core, air ports, hose joints and carrier mounting |
| Valve Cover | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Engine marking, perimeter, plug wells, breather and sealing faces |
| Intake Manifold | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Engine code, runners, throttle flange, sensor ports and actuator |
| Engine Oil Pump | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Engine marking, drive interface, mounting, pickup and pressure outlets |
Continue the identified order
Use the MG5 system directory for other assemblies and the parts-list quotation guide for quantities and destination. Keep body and powertrain identification with every accepted item.
Auto parts inquiry
Send the vehicle and part evidence.
Include brand, full model, year, engine or EV drivetrain, OE/material code, quantity, destination and packing request. You can attach a list or old-part photos.
