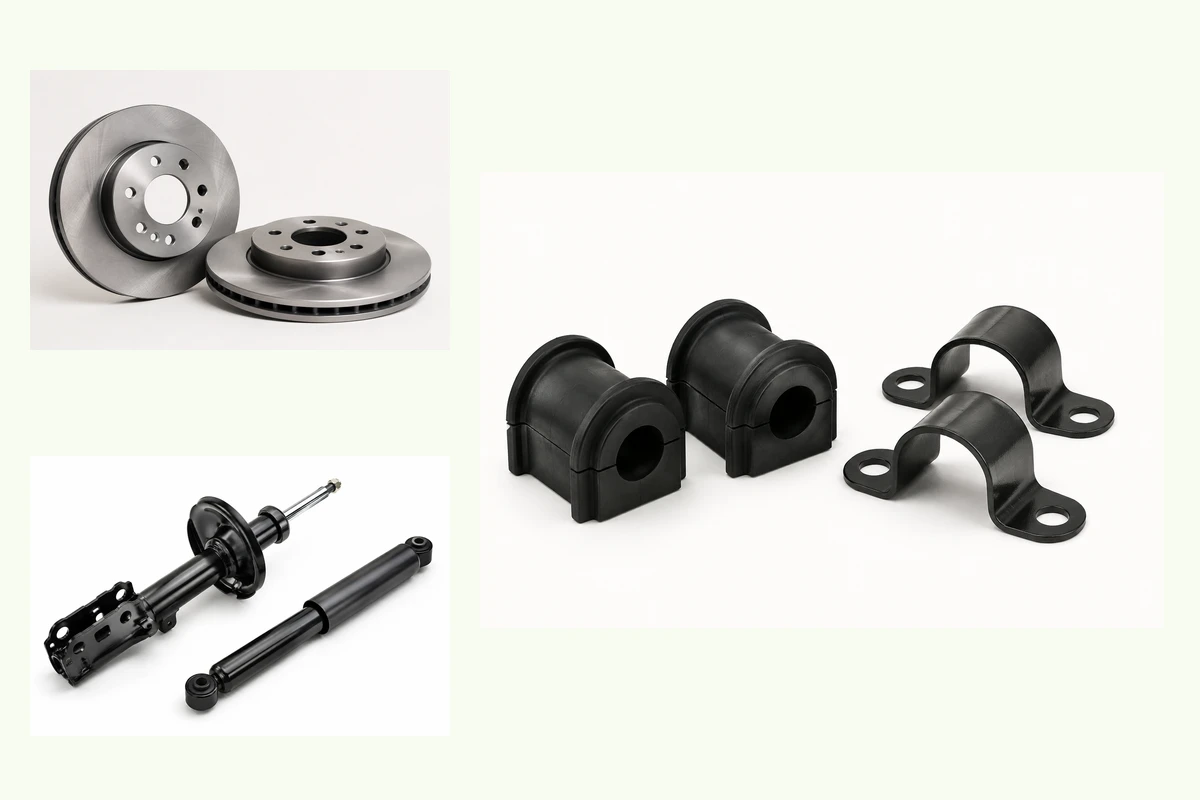

Hyundai Elantra Brake, Suspension and Steering Parts Guide
Use installed geometry, brake package and position to keep chassis orders precise.
Record the complete corner
State axle, side, brake package, wheel or hub format and parking-brake arrangement.
Separate standard and performance packages
Elantra N, N Line and market-specific trims may use different brakes, springs, dampers, hubs and stabilizer hardware; confirm installed dimensions and labels.
Define assembly boundaries
Arms, hubs, struts and calipers may be bare or include bushes, bearings, brackets, motors or hardware.
Brakes & Parking Brake
Inspect front and rear hardware independently; Elantra trims and generations use both rear drum and rear disc arrangements.
| Component | Selection boundary |
|---|---|
For Elantra brake pads, start with axle, trim and caliper package; use backing-plate outline and dimensions and hardware, shim and wear-indicator scope to separate similar variants. | |
Specify Elantra brake discs by front or rear disc package. Retain diameter, thickness and overall height and bolt pattern and hub offset so offers describe the same assembly. | |
Build an Elantra brake shoes inquiry around rear drum service-brake application, then compare shoe arc, width and lever arrangement and springs and adjuster contents. | |
Match the Elantra brake caliper to axle, side and piston format. Record bracket centers and disc width together with hose and parking mechanism before sampling. | |
For Elantra brake master cylinder, start with brake-assist system and bore; use port locations and threads and reservoir and sensor contents to separate similar variants. | |
Specify Elantra brake booster by assist architecture. Retain stud pattern and rod arrangement and vacuum or control interfaces so offers describe the same assembly. | |
Build an Elantra brake hose inquiry around axle, side and suspension, then compare fitting type and threads and length and retaining brackets. | |
Match the Elantra abs wheel speed sensor to axle and sensor position. Record tone ring or encoder type together with lead length and connector before sampling. | |
For Elantra parking brake actuator, start with generation and rear brake package; use connector and actuator mounting and motor, cables or caliper relationship to separate similar variants. |
Suspension, Steering & Mounting
Match axle, side, chassis and steering system before comparing dampers, joints, hubs, shafts, mounts or subframes.
| Component | Selection boundary |
|---|---|
Specify Elantra shock absorber by front strut or rear damper position. Retain generation, trim and suspension package and spring seat and mounting geometry so offers describe the same assembly. | |
Build an Elantra strut mount inquiry around front strut design and side, then compare stud pattern and bearing format and rubber isolator and supplied pieces. | |
Match the Elantra coil spring to axle, trim and body load. Record free height, wire and end shape together with spring identification marks before sampling. | |
For Elantra control arm, start with independent-suspension position; use side and mounting geometry and bush and joint inclusion to separate similar variants. | |
Specify Elantra ball joint by axle, upper/lower position and side. Retain taper and retention method and separate joint or arm inclusion so offers describe the same assembly. | |
Build an Elantra tie rod end inquiry around steering system and position, then compare thread size and handedness and taper and joint orientation. | |
Match the Elantra stabilizer link to axle and roll-control layout. Record link centers and end type together with side and bracket orientation before sampling. | |
For Elantra sway bar bushing, start with front or rear stabilizer position; use bar diameter and bracket profile and bushing split, material and supplied pieces to separate similar variants. | |
Specify Elantra wheel hub / bearing by axle and hub or pressed-bearing format. Retain abs encoder and wheel studs and spline, flange and mounting dimensions so offers describe the same assembly. | |
Build an Elantra cv axle inquiry around axle, side and drivetrain, then compare inner flange or spline and compressed length and outer spline. | |
Match the Elantra steering rack to lhd/rhd and assist system. Record mounting, input shaft and ratio together with electrical connector or hydraulic ports before sampling. | |
For Elantra engine mount, start with engine code and mount position; use bracket and stud pattern and mount construction and controls to separate similar variants. | |
Specify Elantra transmission mount by gearbox and transfer-case code. Retain crossmember and stud pattern and insulator and bracket inclusion so offers describe the same assembly. | |
Build an Elantra front subframe / crossmember inquiry around generation and drivetrain, then compare steering-rack and control-arm mounts and bare frame or bush and bracket contents. | |
Match the Elantra axle shaft to rigid axle position and side. Record spline and flange arrangement together with length, bearing seats and seal seats before sampling. |
Continue with the same vehicle details
Use the Elantra parts directory to identify other assemblies. Once specifications are clear, retain quantities, packing and destination through the shipping and quotation guide.
Auto parts inquiry
Send the vehicle and part evidence.
Include brand, full model, year, engine or EV drivetrain, OE/material code, quantity, destination and packing request. You can attach a list or old-part photos.
