MG ZS SUVs • Petrol, EV and Hybrid+ identified separately
MG ZS Cooling, EV & Hybrid HVAC Selection
Trace MG ZS petrol, EV and Hybrid+ cooling circuits and cabin HVAC. Separate mechanical compressors, low-voltage pumps and controlled high-voltage equipment.
Trace the actual coolant circuit
Identify the exchanger, pump or reservoir by the loop it serves and its installed connections. Petrol engine cooling, hybrid thermal equipment and ZS EV drive/battery circuits retain separate records. Similar fins or translucent bottles cannot approve one assembly across those circuits.
Keep pump drive and electrical identity
A mechanical engine pump and low-voltage electric circulation pump need different evidence. Retain power specification, motor socket and ports on an electric unit, or engine mounting and drive details on a mechanical unit. Integrated high-voltage modules remain outside an ordinary coolant-pump request.
Separate engine thermostat and cabin heating
An engine thermostat requires its original housing, rating and seal. A coolant-fed heater core requires the actual HVAC case and pipe route. EV electric cabin heaters and complex coolant valves are not alternatives approved by these engine or finned-core references.
Distinguish compressor technology before sourcing
A conventional petrol compressor has a mechanical drive, bracket, ports and control record. High-voltage electric compressors are controlled assemblies requiring separately confirmed supply capability. Do not infer Hybrid+ compressor construction from a petrol engine or cabin A/C description.
Identify heat exchangers by fluid and attachment
Radiator, refrigerant condenser, evaporator and turbo charge-air cooler are not interchangeable. Keep each fluid circuit and carrier/case interface explicit. Drier, expansion device and sensor contents need their own accepted itemization; a visually similar front exchanger does not define those contents.
Retain cabin airflow and media options
Cabin blowers and speed controllers follow the actual HVAC housing and steering market. Rear vents do not prove an independent rear blower. Choose particulate or carbon filtration after the installed tray has been measured, and keep ordinary airflow requests separate from high-voltage heating equipment.
Related assembly comparisons
Identify the circuit and connections of the radiator before agreeing inclusion of the radiator cooling fan.
Keep the coolant reservoir cap and hose record with that same loop, not a visually similar electric-drive circuit.

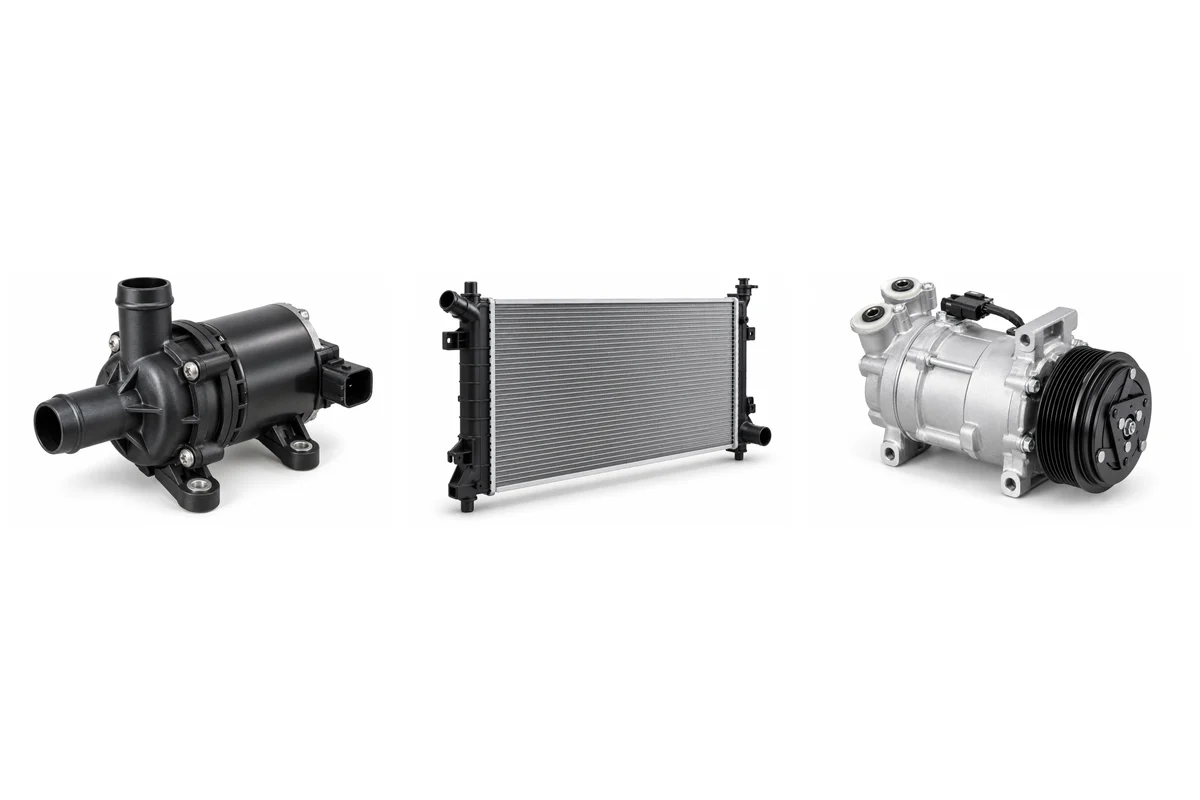

Record drive and circuit for the water pump separately from the engine thermostat / housing.
A coolant-fed heater core is also distinct from electric cabin heating; none is approved from an EV badge alone.
Confirm mechanical petrol drive for the A/C compressor, then retain actual refrigerant ports on the A/C condenser.
The A/C pressure sensor needs its own sealing and signal record rather than an intake-pressure substitution.
Assemblies to identify separately
| Assembly | Application boundary | Selection record |
|---|---|---|
| Radiator | Exact SUV generation, installed equipment and assembly interfaces | Core, hose ports, gearbox cooler fittings and mounts |
| Radiator Cooling Fan | Exact SUV generation, installed equipment and assembly interfaces | Shroud, motor/controller, socket and mounting |
| Water Pump | Identified low-voltage electric or mechanical coolant pump and actual circuit; HV integrated units excluded | Circuit, drive, housing, impeller and ports |
| Coolant Reservoir | Exact SUV generation, installed equipment and assembly interfaces | Bottle, cap rating, hose map, sensor and brackets |
| Thermostat / Housing | Identified petrol or Hybrid+ engine application; ZS EV excluded | Engine, opening requirement, housing, seals and hose map |
| A/C Compressor | Confirmed mechanical-drive petrol compressor only; high-voltage electric units excluded | Installed drive, engine, pulley, refrigerant ports and control |
| A/C Condenser | Exact SUV generation, installed equipment and assembly interfaces | Core, connection blocks, receiver and mounting |
| A/C Evaporator | Exact SUV generation, installed equipment and assembly interfaces | Core outline, tube routing, block and seal faces |
| Blower Motor | Exact SUV generation, installed equipment and assembly interfaces | Wheel depth, rotation, flange and socket |
| Blower Control Module | Exact SUV generation, installed equipment and assembly interfaces | Label, heat sink, sockets and mounting |
| A/C Pressure Sensor | Exact SUV generation, installed equipment and assembly interfaces | Marking, thread/port, socket and signal function |
| Heater Core | Confirmed coolant-fed petrol or Hybrid+ cabin heat exchanger; electric heater assemblies excluded | HVAC case, coolant tubes, core and seals |
| Engine Oil Cooler | Identified petrol or Hybrid+ engine application; ZS EV excluded | Engine circuit, oil/coolant interfaces, mounting and seals |
Continue the accepted list
Keep the full vehicle record with the ZS system directory. The parts-list quotation guide covers quantity, destination and commercial details without assuming price or stock.
Auto parts inquiry
Send the vehicle and part evidence.
Include brand, full model, year, engine or EV drivetrain, OE/material code, quantity, destination and packing request. You can attach a list or old-part photos.
