Nissan Sentra procurement guide
Nissan Sentra Service, Ignition & CVT Parts Guide
Prepare repeatable Sentra maintenance orders without turning one generation’s service list into a universal kit.
Build filters from their housings
Record airbox and cabin-filter tray dimensions. Keep oil-filter interface with the engine and CVT strainer/pan details with the gearbox.
Specify ignition as an engine set
Retain plug heat specification, reach, electrode design, coil connector and boot length. State pieces per engine and do not assume the 1.6T set matches a naturally aspirated engine.
Use the installed belt route
Photograph the belt marking and identify driven accessories. Quote pulley-only and complete tensioner separately.
Keep manual clutch work separate
Clutch kits apply only to confirmed manual gearboxes. Name disc, cover and release components; exclude CVT cars.
Define repeat-order units
State pieces, axle sets, service packs and carton quantities clearly. Retain accepted labels and substitution rules rather than relying on a generic kit name.

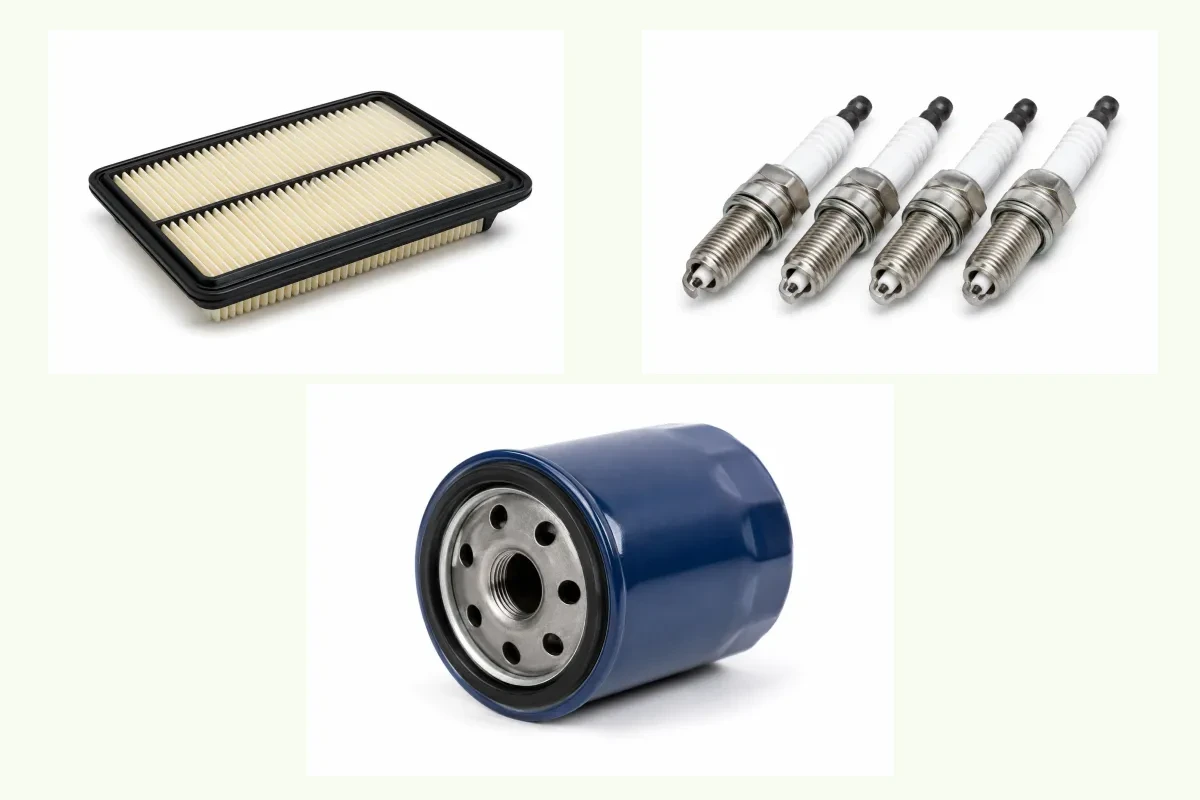

Filters, Ignition & Transmission Service
Build service packs from the installed engine and transmission. Conventional manual, automatic and Xtronic CVT requirements stay separate.
| Component | Selection boundary |
|---|---|
Specify Sentra air filter by engine and airbox family. Retain element outline and dimensions and seal profile and housing depth so offers describe the same assembly. | |
Build a Sentra cabin air filter inquiry around hvac case and market, then compare single or paired element and tray size and media. | |
Match the Sentra oil filter to engine code and filter count. Record thread and gasket dimensions together with full-flow or bypass role before sampling. | |
For Sentra transmission filter, start with manual, automatic or xtronic cvt code; use internal strainer neck and pickup position and pan gasket and seal contents to separate similar variants. | |
Specify Sentra spark plugs by petrol engine and induction type. Retain thread, reach and heat specification and electrode design and set quantity so offers describe the same assembly. | |
Build a Sentra ignition coil inquiry around petrol engine and ignition layout, then compare connector and boot depth and per-cylinder or shared unit. | |
Match the Sentra drive belt to engine and accessories. Record belt marking and rib count together with length and quantity before sampling. | |
For Sentra belt tensioner, start with engine and tensioning type; use pulley diameter and offset and bracket and assembly contents to separate similar variants. | |
Specify Sentra clutch kit by confirmed manual gearbox and engine. Retain disc diameter and input spline and release bearing and cover contents so offers describe the same assembly. |
Continue with the same vehicle details
Use the Sentra parts directory to identify other assemblies. Once specifications are clear, retain quantities, packing and destination through the shipping and quotation guide.
