Nissan Sentra Brake, Suspension & Steering Guide

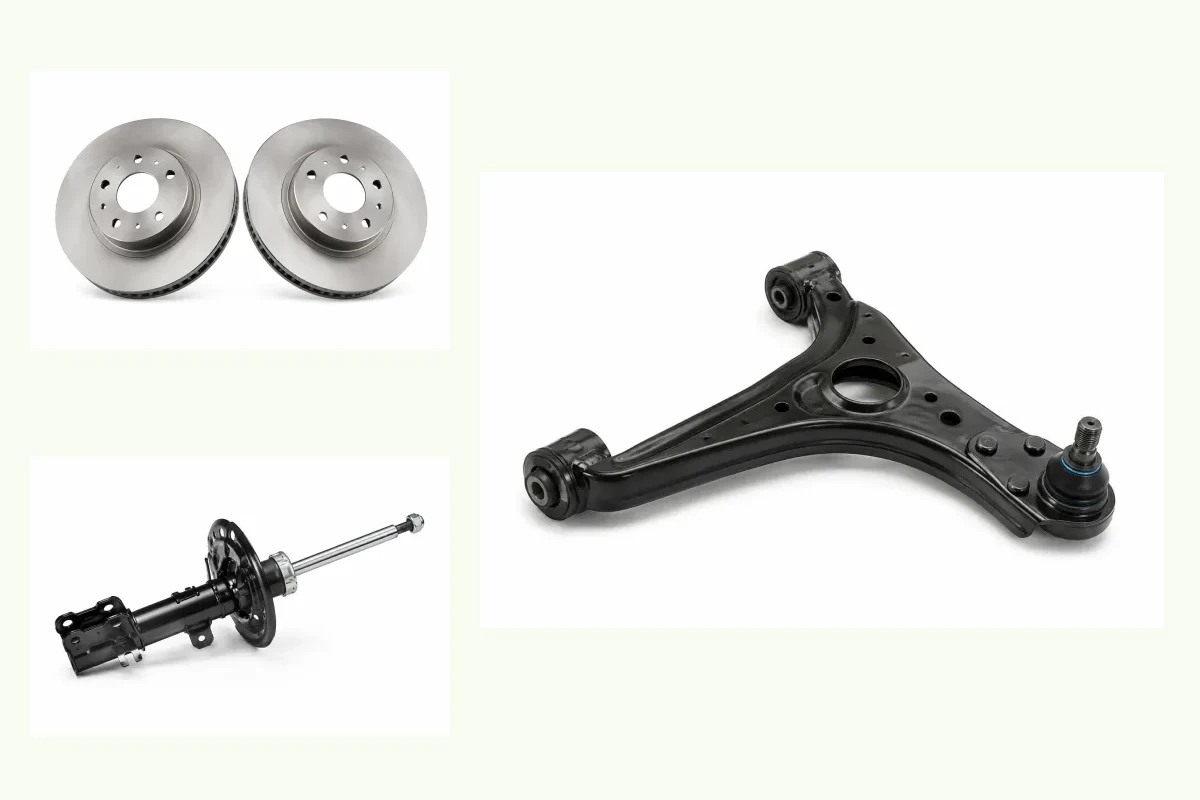

Build a chassis order from the actual rear brake, suspension and steering layouts rather than the Sentra badge.
Inspect both axles
Front brakes do not identify rear drum or disc hardware. Record caliper, pad/shoe outline, rotor/drum dimensions and parking mechanism per axle.
Separate friction, hydraulic and sensing lines
Pads, discs, calipers, hoses, master cylinders and ABS sensors each need their own position and interfaces. Keep ports capped and electronic leads away from heavy castings.
Identify the strut assembly boundary
A front strut, spring and top mount can be quoted separately or assembled. State side, trim, spring marks and included pieces.
Follow steering and driveline interfaces
Record LHD/RHD, assist type, tie-rod thread, axle side, gearbox and hub spline. A hub encoder and separate wheel sensor remain distinct.
Treat the subframe as a mounting system
Confirm control-arm, rack and powertrain mounting points. A complete crossmember offer must list bushes and brackets rather than relying on the word assembly.
Brakes & Parking Brake
Inspect front and rear hardware independently; Sentra trims and generations use both rear drum and rear disc arrangements.
| Component | Selection boundary |
|---|---|
Build a Sentra brake pads inquiry around axle, trim and caliper package, then compare backing-plate outline and dimensions and hardware, shim and wear-indicator scope. | |
Match the Sentra brake discs to front or rear disc package. Record diameter, thickness and overall height together with bolt pattern and hub offset before sampling. | |
For Sentra brake shoes, start with rear drum service-brake application; use shoe arc, width and lever arrangement and springs and adjuster contents to separate similar variants. | |
Specify Sentra brake drums by rear drum application and trim. Retain working diameter and overall height and hub and bearing relationship so offers describe the same assembly. | |
Build a Sentra brake caliper inquiry around axle, side and piston format, then compare bracket centers and disc width and hose and parking mechanism. | |
Match the Sentra brake master cylinder to brake-assist system and bore. Record port locations and threads together with reservoir and sensor contents before sampling. | |
For Sentra brake booster, start with assist architecture; use stud pattern and rod arrangement and vacuum or control interfaces to separate similar variants. | |
Specify Sentra brake hose by axle, side and suspension. Retain fitting type and threads and length and retaining brackets so offers describe the same assembly. | |
Build a Sentra abs wheel speed sensor inquiry around axle and sensor position, then compare tone ring or encoder type and lead length and connector. | |
Match the Sentra parking brake cable to body, wheelbase and cable section. Record actuation mechanism together with length, ends and brackets before sampling. |
Suspension, Steering & Mounting
Match axle, side, chassis and steering system before comparing dampers, joints, hubs, shafts, mounts or subframes.
| Component | Selection boundary |
|---|---|
For Sentra shock absorber, start with front strut or rear damper position; use generation, trim and suspension package and spring seat and mounting geometry to separate similar variants. | |
Specify Sentra strut mount by front strut design and side. Retain stud pattern and bearing format and rubber isolator and supplied pieces so offers describe the same assembly. | |
Build a Sentra coil spring inquiry around axle, trim and body load, then compare free height, wire and end shape and spring identification marks. | |
Match the Sentra control arm to independent-suspension position. Record side and mounting geometry together with bush and joint inclusion before sampling. | |
For Sentra ball joint, start with axle, upper/lower position and side; use taper and retention method and separate joint or arm inclusion to separate similar variants. | |
Specify Sentra tie rod end by steering system and position. Retain thread size and handedness and taper and joint orientation so offers describe the same assembly. | |
Build a Sentra stabilizer link inquiry around axle and roll-control layout, then compare link centers and end type and side and bracket orientation. | |
Match the Sentra wheel hub / bearing to axle and hub or pressed-bearing format. Record abs encoder and wheel studs together with spline, flange and mounting dimensions before sampling. | |
For Sentra cv axle, start with axle, side and drivetrain; use inner flange or spline and compressed length and outer spline to separate similar variants. | |
Specify Sentra steering rack by lhd/rhd and assist system. Retain mounting, input shaft and ratio and electrical connector or hydraulic ports so offers describe the same assembly. | |
Build a Sentra engine mount inquiry around engine code and mount position, then compare bracket and stud pattern and mount construction and controls. | |
Match the Sentra transmission mount to gearbox and transfer-case code. Record crossmember and stud pattern together with insulator and bracket inclusion before sampling. | |
For Sentra front subframe / crossmember, start with generation and drivetrain; use steering-rack and control-arm mounts and bare frame or bush and bracket contents to separate similar variants. |
Continue with the same vehicle details
Use the Sentra parts directory to identify other assemblies. Once specifications are clear, retain quantities, packing and destination through the shipping and quotation guide.
Auto parts inquiry
Send the vehicle and part evidence.
Include brand, full model, year, engine or EV drivetrain, OE/material code, quantity, destination and packing request. You can attach a list or old-part photos.
