Nissan Sunny procurement guide
Nissan Sunny Service, Ignition & CVT Parts Guide
Prepare repeatable Sunny maintenance orders without turning one generation’s service list into a universal kit.
Build filters from their housings
Record airbox and cabin-filter tray dimensions. Keep oil-filter interface with the engine and CVT strainer/pan details with the gearbox.
Specify ignition as an engine set
Retain plug heat specification, reach, electrode design, coil connector and boot length. State pieces per engine; diesel applications do not use petrol spark-plug sets.
Use the installed belt route
Photograph the belt marking and identify driven accessories. Quote pulley-only and complete tensioner separately.
Keep manual clutch work separate
Clutch kits apply only to confirmed manual gearboxes. Name disc, cover and release components; exclude CVT cars.
Define repeat-order units
State pieces, axle sets, service packs and carton quantities clearly. Retain accepted labels and substitution rules rather than relying on a generic kit name.

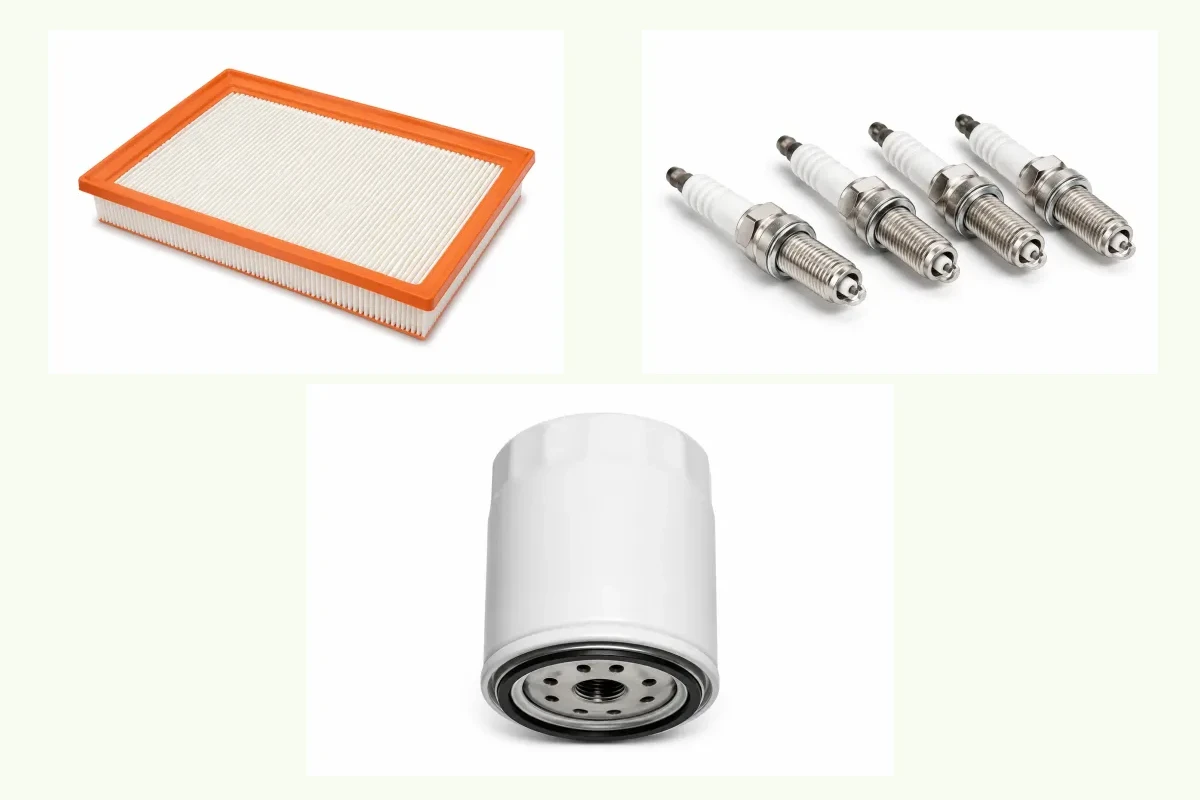

Filters, Ignition & Transmission Service
Build service packs from the installed engine and transmission. Conventional manual, automatic and Xtronic CVT requirements stay separate.
| Component | Selection boundary |
|---|---|
Specify Sunny air filter by engine and airbox family. Retain element outline and dimensions; also record seal profile and housing depth so offers describe the same assembly. | |
Build a Sunny cabin air filter inquiry around hvac case and market, then compare single or paired element with tray size and media. | |
Match the Sunny oil filter to engine code and filter count. Record thread and gasket dimensions; include full-flow or bypass role before sampling. | |
For Sunny fuel filter, start with fuel and injection system; use filter head and sensor and port and seal arrangement to separate similar variants. | |
Specify Sunny transmission filter by manual, automatic or xtronic cvt code. Retain internal strainer neck and pickup position; also record pan gasket and seal contents so offers describe the same assembly. | |
Build a Sunny spark plugs inquiry around petrol engine and induction type, then compare thread, reach and heat specification with electrode design and set quantity. | |
Match the Sunny ignition coil to petrol engine and ignition layout. Record connector and boot depth; include per-cylinder or shared unit before sampling. | |
For Sunny drive belt, start with engine and accessories; use belt marking and rib count and length and quantity to separate similar variants. | |
Specify Sunny belt tensioner by engine and tensioning type. Retain pulley diameter and offset; also record bracket and assembly contents so offers describe the same assembly. | |
Build a Sunny clutch kit inquiry around confirmed manual gearbox and engine, then compare disc diameter and input spline with release bearing and cover contents. |
Continue with the same vehicle details
Use the Sunny parts directory to identify other assemblies. Once specifications are clear, retain quantities, packing and destination through the shipping and quotation guide.
