Nissan Sunny Brake, Suspension & Steering Guide

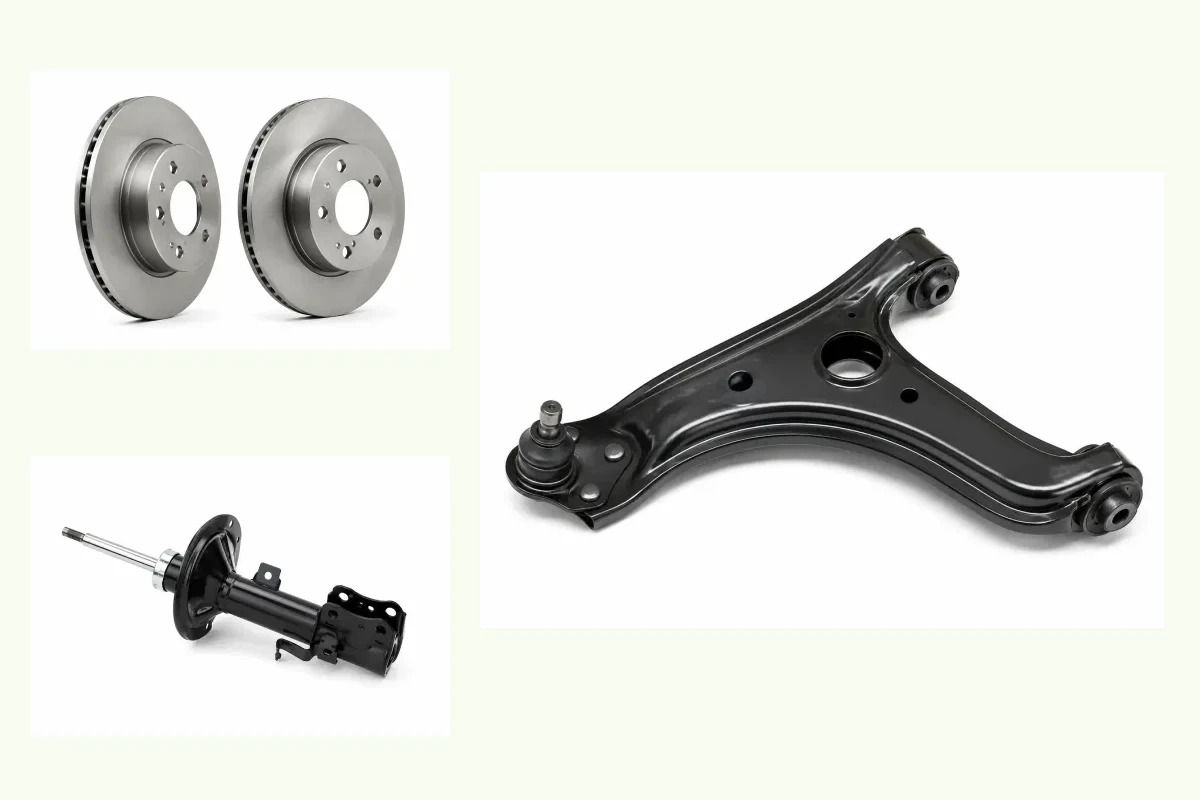

Build a chassis order from the actual rear brake, suspension and steering layouts rather than the Sunny badge.
Inspect both axles
Front brakes do not identify rear drum or disc hardware. Record caliper, pad/shoe outline, rotor/drum dimensions and parking mechanism per axle.
Separate friction, hydraulic and sensing lines
Pads, discs, calipers, hoses, master cylinders and ABS sensors each need their own position and interfaces. Keep ports capped and electronic leads away from heavy castings.
Identify the strut assembly boundary
A front strut, spring and top mount can be quoted separately or assembled. State side, trim, spring marks and included pieces.
Follow steering and driveline interfaces
Record LHD/RHD, assist type, tie-rod thread, axle side, gearbox and hub spline. A hub encoder and separate wheel sensor remain distinct.
Treat the subframe as a mounting system
Confirm control-arm, rack and powertrain mounting points. A complete crossmember offer must list bushes and brackets rather than relying on the word assembly.
Brakes & Parking Brake
Inspect front and rear hardware independently; Sunny trims and generations use both rear drum and rear disc arrangements.
| Component | Selection boundary |
|---|---|
Match the Sunny brake pads to axle, trim and caliper package. Record backing-plate outline and dimensions; include hardware, shim and wear-indicator scope before sampling. | |
For Sunny brake discs, start with front or rear disc package; use diameter, thickness and overall height and bolt pattern and hub offset to separate similar variants. | |
Specify Sunny brake shoes by rear drum service-brake application. Retain shoe arc, width and lever arrangement; also record springs and adjuster contents so offers describe the same assembly. | |
Build a Sunny brake drums inquiry around rear drum application and trim, then compare working diameter and overall height with hub and bearing relationship. | |
Match the Sunny brake caliper to axle, side and piston format. Record bracket centers and disc width; include hose and parking mechanism before sampling. | |
For Sunny brake master cylinder, start with brake-assist system and bore; use port locations and threads and reservoir and sensor contents to separate similar variants. | |
Specify Sunny brake booster by assist architecture. Retain stud pattern and rod arrangement; also record vacuum or control interfaces so offers describe the same assembly. | |
Build a Sunny brake hose inquiry around axle, side and suspension, then compare fitting type and threads with length and retaining brackets. | |
Match the Sunny abs wheel speed sensor to axle and sensor position. Record tone ring or encoder type; include lead length and connector before sampling. | |
For Sunny parking brake cable, start with body, wheelbase and cable section; use actuation mechanism and length, ends and brackets to separate similar variants. |
Suspension, Steering & Mounting
Match axle, side, chassis and steering system before comparing dampers, joints, hubs, shafts, mounts or subframes.
| Component | Selection boundary |
|---|---|
Specify Sunny shock absorber by front strut or rear damper position. Retain generation, trim and suspension package; also record spring seat and mounting geometry so offers describe the same assembly. | |
Build a Sunny strut mount inquiry around front strut design and side, then compare stud pattern and bearing format with rubber isolator and supplied pieces. | |
Match the Sunny coil spring to axle, trim and body load. Record free height, wire and end shape; include spring identification marks before sampling. | |
For Sunny control arm, start with independent-suspension position; use side and mounting geometry and bush and joint inclusion to separate similar variants. | |
Specify Sunny ball joint by axle, upper/lower position and side. Retain taper and retention method; also record separate joint or arm inclusion so offers describe the same assembly. | |
Build a Sunny tie rod end inquiry around steering system and position, then compare thread size and handedness with taper and joint orientation. | |
Match the Sunny stabilizer link to axle and roll-control layout. Record link centers and end type; include side and bracket orientation before sampling. | |
For Sunny wheel hub / bearing, start with axle and hub or pressed-bearing format; use abs encoder and wheel studs and spline, flange and mounting dimensions to separate similar variants. | |
Specify Sunny cv axle by axle, side and drivetrain. Retain inner flange or spline; also record compressed length and outer spline so offers describe the same assembly. | |
Build a Sunny steering rack inquiry around lhd/rhd and assist system, then compare mounting, input shaft and ratio with electrical connector or hydraulic ports. | |
Match the Sunny engine mount to engine code and mount position. Record bracket and stud pattern; include mount construction and controls before sampling. | |
For Sunny transmission mount, start with gearbox and transfer-case code; use crossmember and stud pattern and insulator and bracket inclusion to separate similar variants. | |
Specify Sunny front subframe / crossmember by generation and drivetrain. Retain steering-rack and control-arm mounts; also record bare frame or bush and bracket contents so offers describe the same assembly. |
Continue with the same vehicle details
Use the Sunny parts directory to identify other assemblies. Once specifications are clear, retain quantities, packing and destination through the shipping and quotation guide.
