Displacement alone is insufficient; add engine code, induction type, production date and market.
Powertrain boundary

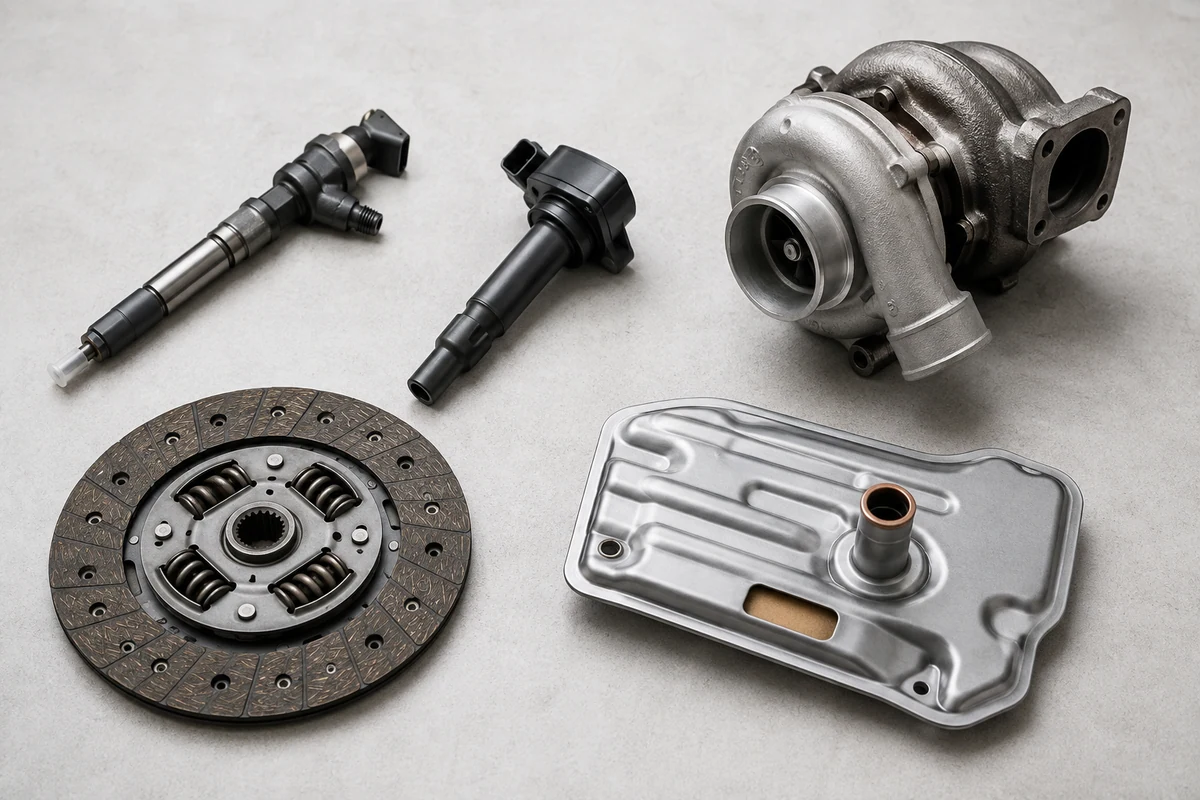

Toyota Hiace Diesel, Gasoline, Engine & Transmission Parts Guide
Identify the engine, fuel and emission system, gearbox and market before selecting service, cooling, electrical or exhaust parts.
Decision workflow
Turn a broad Hiace request into traceable inquiry lines.
Common-rail diesel pumps, injectors, glow plugs, EGR and DPF parts do not share gasoline specifications.
Manual and automatic filters, clutch parts, mounts, coolers and driveline interfaces differ.
State bare component or complete assembly plus sensors, pipes, gaskets, brackets and calibration requirements.
Evidence hierarchy
Use the strongest available evidence without forcing an OE number.
Chassis, build date, market, body, wheelbase, roof, door layout, engine and transmission define the application.
Use a reliable OE/reference when available; otherwise use labels, interfaces, position, dimensions and old-part photos.
Quantity, grade, sample status, packing, destination and approved alternatives define the quotation.
Related Hiace parts
Choose the product family after confirming the van and system.
Related Hiace parts
Maintenance, Service & Ignition
Hiace service parts separated by H100/H200/H300 generation, chassis, engine, transmission and duty cycle.

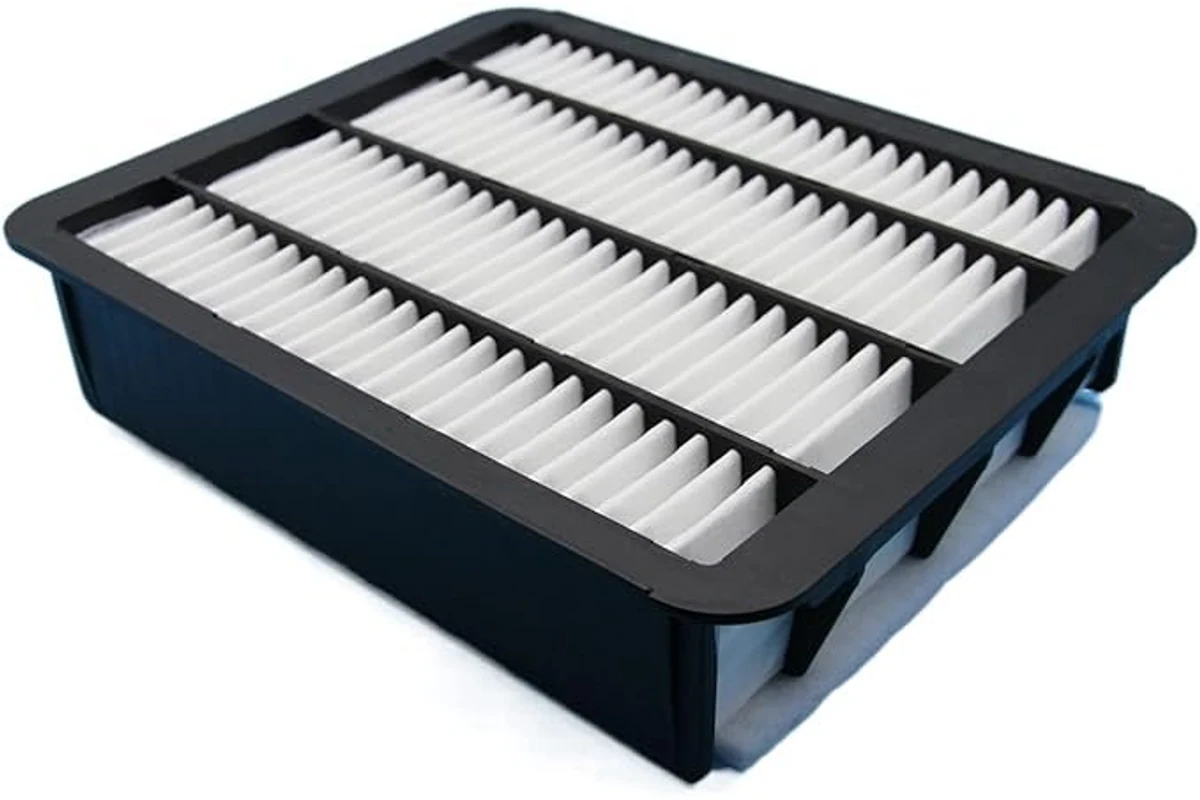

Hiace Air FilterConfirm Hiace series, production date, engine, transmission and market. Engine family, air-box design, frame dimensions and seal must match.
Hiace Cabin Air FilterConfirm Hiace series, production date, engine, transmission and market. Filter dimensions, airflow direction and paper or activated-carbon grade must match.
Hiace Oil FilterConfirm Hiace series, production date, engine, transmission and market. Engine, filter style, thread or cartridge size, bypass specification and gasket must match.
Hiace Fuel FilterConfirm Hiace series, production date, engine, transmission and market. Petrol and diesel systems, in-tank and in-line positions, ports and pressure requirements are not interchangeable.
Hiace Transmission FilterConfirm Hiace series, production date, engine, transmission code and market. Filter position, pan shape, oil-pickup depth and gasket scope must match; manual transmissions use different service parts.
Hiace Spark PlugsGasoline-engine application only. Confirm engine code, heat range, thread, reach, electrode type and gap; diesel engines use glow plugs.
Hiace Ignition CoilConfirm Hiace series, production date, engine, transmission and market. Engine family, connector, coil body, boot length and production date must match; diesel applications are excluded.
Hiace Drive BeltConfirm Hiace series, production date and engine. Belt route, rib count, effective length and driven accessories must match; belt routing differs by engine and accessory package.
Hiace Belt TensionerConfirm Hiace series, production date, engine, transmission and market. Engine, mounting pattern, pulley diameter, belt route and assembly scope must match.
Hiace Clutch KitManual-transmission application only. Confirm generation, chassis, engine, gearbox, flywheel type, disc diameter, spline, release system and kit contents.
Hiace Glow PlugsDiesel application only; engine code, voltage, thread, reach, terminal and glow-control specification must match. Hiace gasoline engines do not use diesel glow plugs.
Hiace Wiper BladesDriver/passenger position, blade lengths, connector, arm type and LHD/RHD wiping layout must match.Related Hiace parts
Diesel, Gasoline, Cooling, Fuel, Electrical & A/C
Hiace diesel and gasoline systems separated by engine, emission market, transmission, cooling package and climate specification.

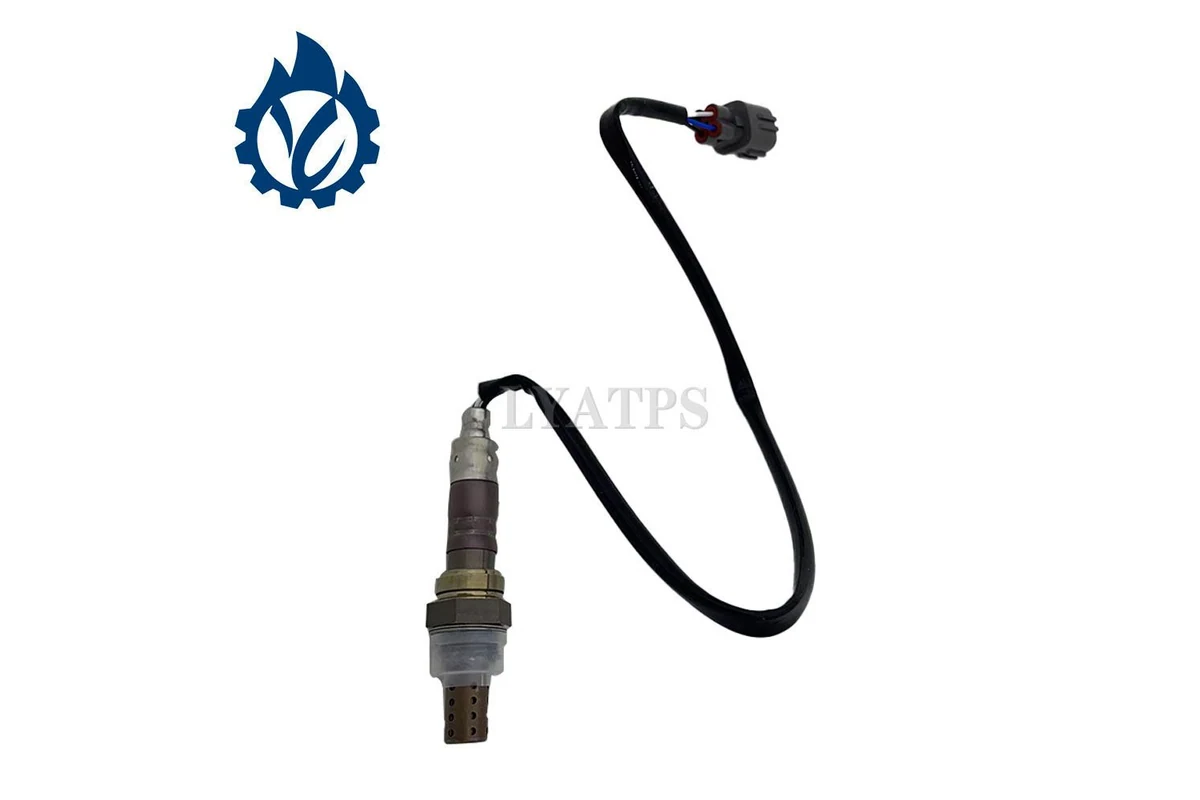

Hiace Oxygen SensorGasoline and equipped diesel emission applications differ. Confirm engine, emission market, upstream/downstream position, connector, wire count and length.

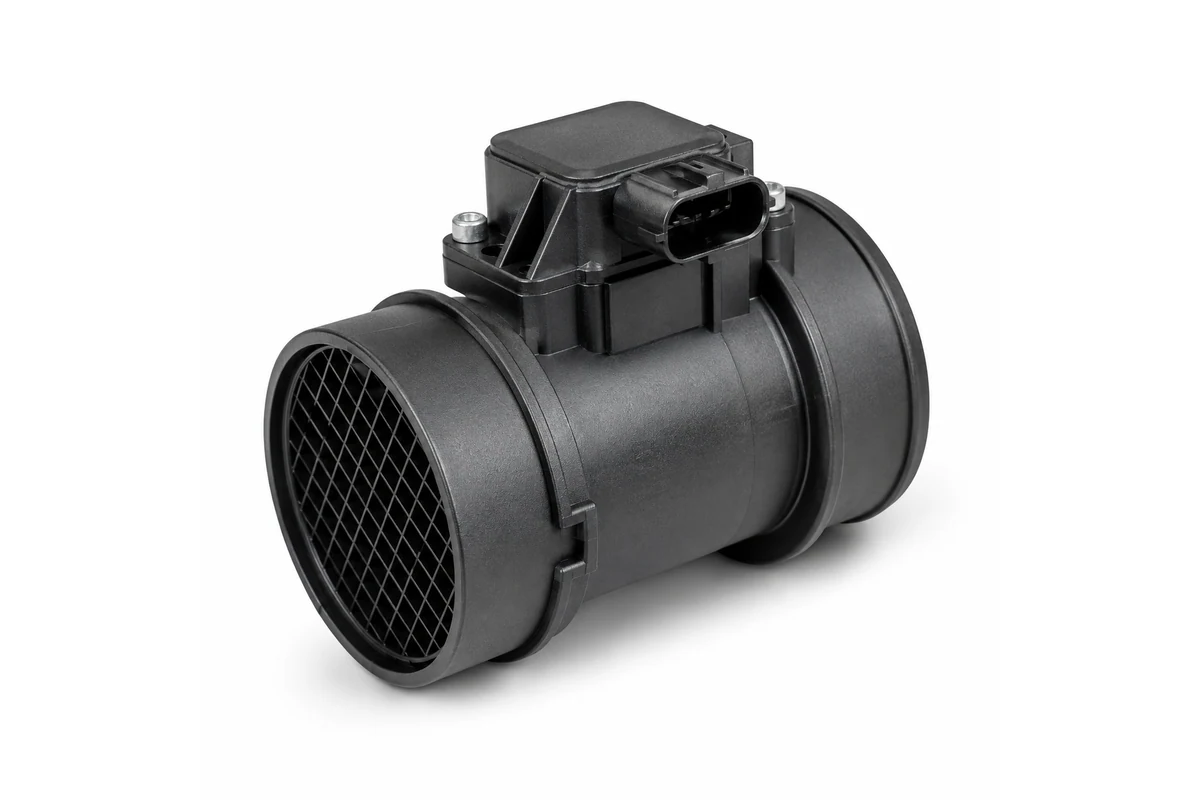

Hiace Mass Air Flow SensorConfirm the exact Hiace diesel or gasoline powertrain before selection. Engine, sensor/housing scope, connector, calibration and production market must match.
Hiace Crankshaft Position SensorConfirm the exact Hiace diesel or gasoline powertrain before selection. Engine code, sensor position, connector, lead, mounting and target-wheel system must match.
Hiace Camshaft Position SensorConfirm the exact Hiace diesel or gasoline powertrain before selection. Engine, intake/exhaust or bank position, connector, mounting and production revision must match.
Hiace Fuel PumpConfirm the exact Hiace diesel or gasoline powertrain before selection. Petrol and diesel systems differ; engine, pump/module scope, pressure, flange, sender and connector must match.
Hiace Fuel InjectorConfirm the exact Hiace diesel or gasoline powertrain before selection. Petrol port/direct injection and diesel injectors are different; engine, flow/calibration, connector and seal kit must match.
Hiace Throttle BodyConfirm engine and intake-control function. Match bore, connector, coolant ports, calibration and included sensor/motor scope; diesel intake-throttle and gasoline throttle assemblies are not interchangeable.

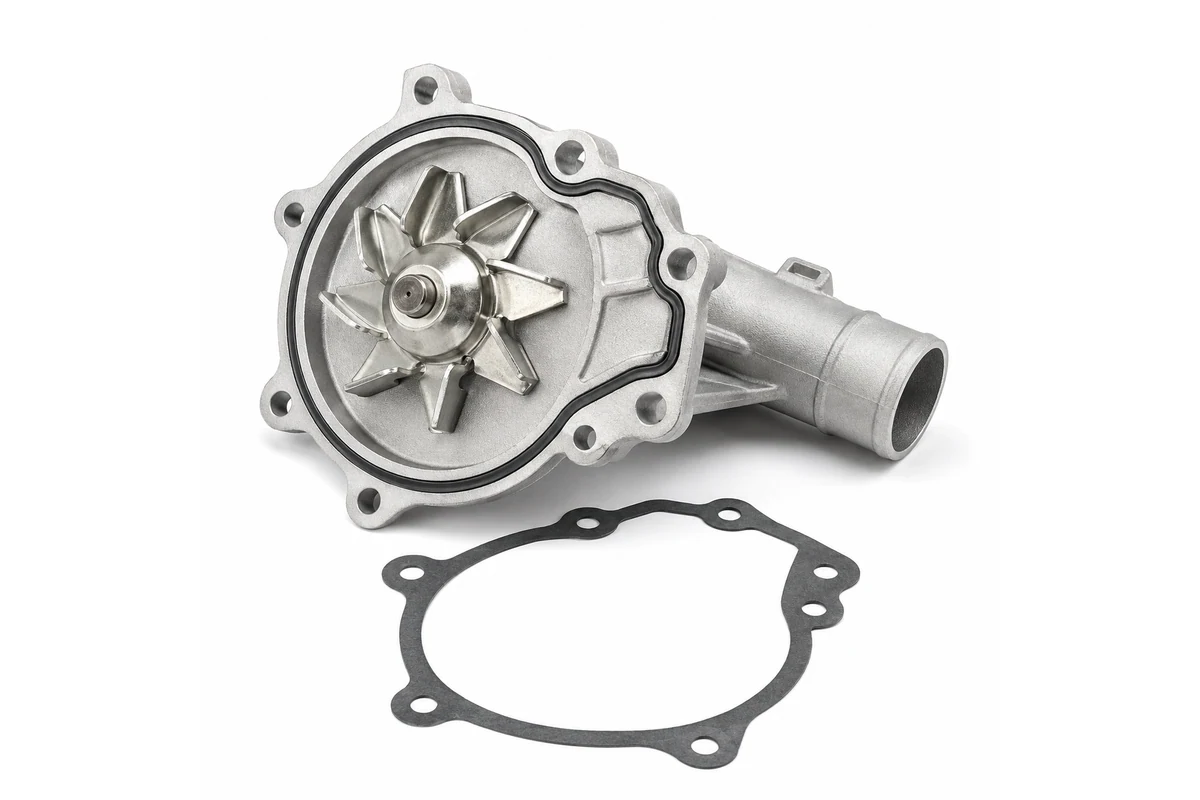

Hiace Water PumpConfirm Hiace powertrain and coolant circuit first. For combustion engines, match engine code, mechanical/electric drive, housing, ports and seal; auxiliary electric pumps require voltage, connector, ports and installed-circuit evidence.
Hiace RadiatorConfirm Hiace series, diesel or gasoline cooling package, transmission and market. Core size, tanks, hose layout, cooler provision, filler arrangement, fan mounts and adjoining thermal circuit must match.
Hiace ThermostatCombustion-engine application: confirm engine code, opening temperature, housing or insert scope, seal and ports. Do not substitute an auxiliary thermal valve or coolant module for the engine thermostat.
Hiace Radiator Cooling FanConfirm Hiace powertrain, cooling-module layout and market. Fan count, blade and shroud dimensions, connector, controller and radiator/condenser interfaces must match; electronically controlled fan modules require the exact connector and controller specification.
Hiace AlternatorConventional combustion application: confirm Hiace engine, rated output, pulley, smart-charge control, plug and mounts. Charging layout and rated output still differ by engine and market.
Hiace Starter MotorConventional combustion application: confirm Hiace engine, transmission, rated output, pinion, terminals and mounting. Rated output, pinion and mounting differ by engine and transmission.
Hiace A/C CompressorConfirm Hiace powertrain, refrigerant, oil, ports and mounting. Match a belt-driven compressor to the exact combustion-engine layout; an electric or high-voltage compressor requires voltage, connector, controller and qualified-system evidence.
Hiace A/C CondenserConfirm the exact Hiace diesel or gasoline powertrain before selection. Refrigerant, dimensions, ports, receiver-drier, brackets and model-year front-end layout must match.
Hiace Blower MotorConfirm the exact Hiace diesel or gasoline powertrain before selection. LHD/RHD HVAC case, connector, rotation, fan diameter, resistor/controller and production revision must match.
Hiace Catalytic ConverterCombustion application only: confirm Hiace engine, exhaust position, emission market, sensor ports, flange layout and local import rules. Diesel and gasoline aftertreatment layouts must be identified separately.
Hiace EGR ValveConfirm the exact Hiace diesel or gasoline powertrain before selection. Only engines equipped with EGR; engine, emission market, valve/cooler scope, connector and ports must match.
Hiace Vacuum PumpConfirm Hiace powertrain, vacuum circuit and brake-system design. For engine-driven pumps, match drive and mounting; for electric pumps, match voltage, connector, ports and controller. Do not assume engine-driven and electric brake-vacuum parts interchange.
Hiace Common Rail Fuel PumpDiesel application only; engine code, pump label, pressure/control system, gear or drive interface, ports and calibration code must match.
Hiace TurbochargerEngine code, variable/fixed geometry, actuator, oil/coolant ports, compressor and turbine flanges and included hardware must match.
Hiace IntercoolerTurbo engine, top/front-mount layout, core size, inlet/outlet diameter and orientation, brackets, sensors and duct interfaces must match.
Hiace Diesel Particulate FilterDiesel application only; engine, emission market, sensor and pressure ports, flange layout, substrate scope and local import rules must match.
Hiace Fan ClutchMechanical-fan applications only; engine, thread or flange, pilot, bolt pattern, fan diameter and temperature-control specification must match.
Hiace Engine Oil CoolerConfirm engine code, cooler type, housing or core scope, coolant/oil ports, gasket arrangement, mounting and production revision.
Hiace Transmission Oil CoolerConfirm transmission code, standalone or radiator-integrated layout, line fittings, cooler dimensions, mounting and market/load package.
Hiace Fuel Rail Pressure SensorConfirm engine, rail/system position, thread, pressure range, connector, calibration reference and removed-sensor marking.Continue checking
Other Hiace decision guides.
All Toyota Hiace PartsCompare all 92 part requirements by system.Toyota Hiace H100, H200 & H300 Chassis and Body GuideSeparate Hiace generations, chassis families, body width, wheelbase, roof and door layout before building a parts list.Hiace Cargo, Passenger, Commuter & Sliding Door Parts GuideMatch doors, exterior panels, lamps and cabin hardware by commercial body, side, roof, wheelbase and installed equipment.Toyota Hiace Fleet Brake, Suspension & Driveline Parts GuideBuild repeatable commercial-vehicle lines by axle, load version, wheelbase, 2WD/4WD and measured brake or driveline interfaces.
Auto parts inquiry
Send the vehicle and part evidence.
Include brand, full model, year, engine or EV drivetrain, OE/material code, quantity, destination and packing request. You can attach a list or old-part photos.
