Use the complete model/chassis code, production month and destination market rather than the Hiace name alone.
Vehicle identity

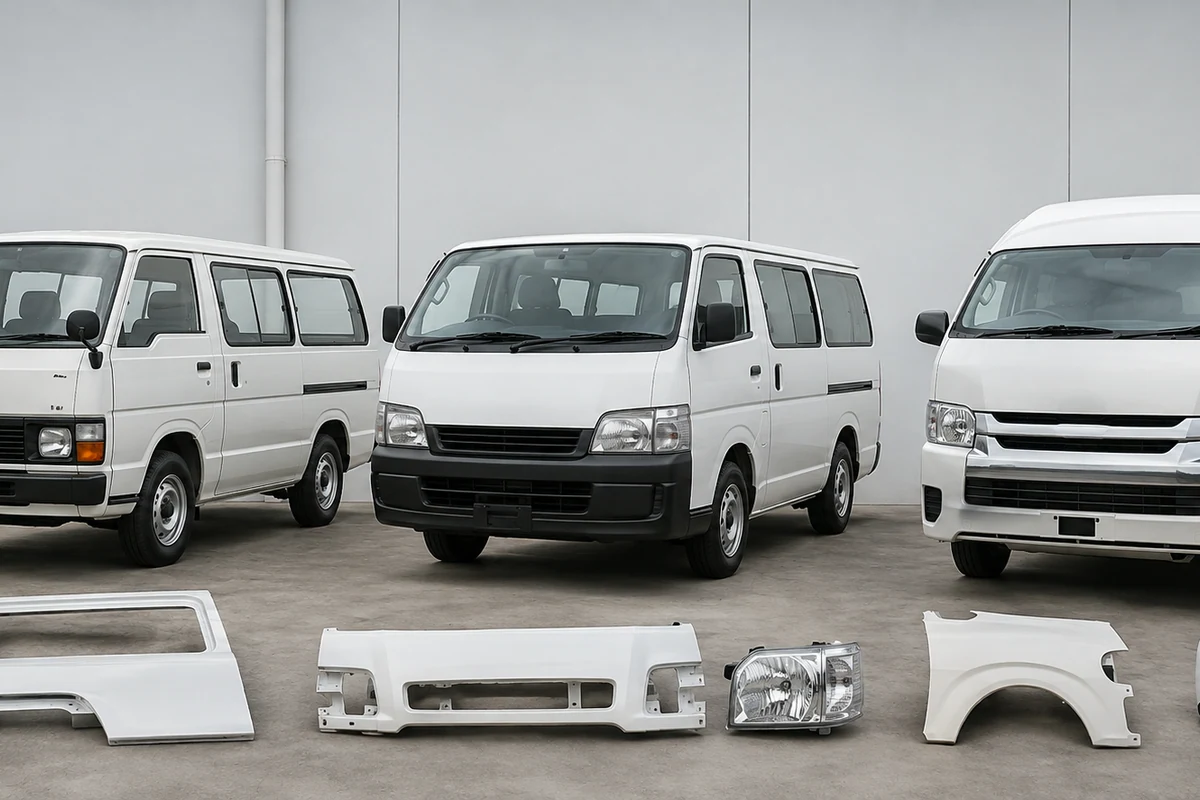

Toyota Hiace H100, H200 & H300 Chassis and Body Guide
Separate Hiace generations, chassis families, body width, wheelbase, roof and door layout before building a parts list.
Decision workflow
Turn a broad Hiace request into traceable inquiry lines.
State narrow or wide body, short or long wheelbase, roof height, cargo/passenger/Commuter use and seating/load version.
Photograph front, sliding and rear-door layouts; door rollers, handles, locks, glass and seals change with the body.
Put chassis, position, evidence, quantity, grade and packing on the same inquiry line.
Evidence hierarchy
Use the strongest available evidence without forcing an OE number.
Chassis, build date, market, body, wheelbase, roof, door layout, engine and transmission define the application.
Use a reliable OE/reference when available; otherwise use labels, interfaces, position, dimensions and old-part photos.
Quantity, grade, sample status, packing, destination and approved alternatives define the quotation.
Related Hiace parts
Choose the product family after confirming the van and system.
Related Hiace parts
Suspension, Steering & Driveline
Hiace chassis parts matched by generation, body width, wheelbase, roof/load version, axle, side and 2WD/4WD layout.

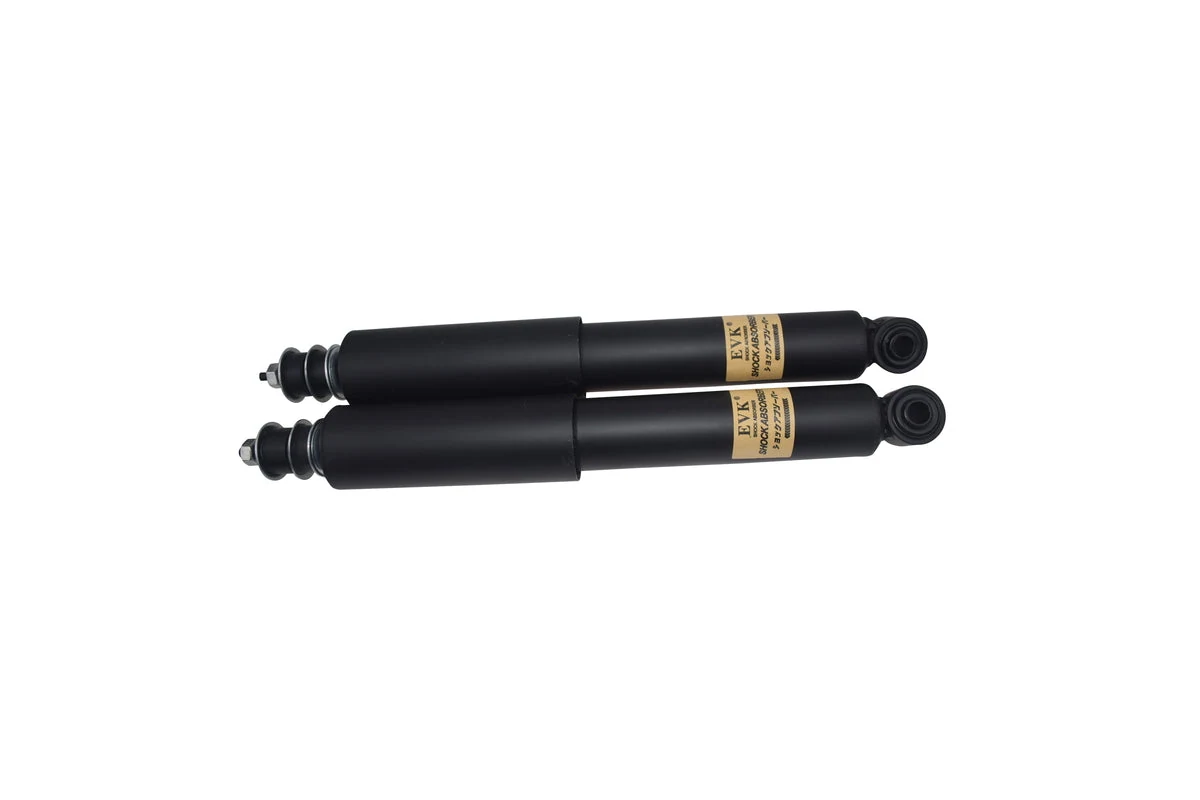

Hiace Shock AbsorberConfirm Hiace series, body configuration, wheelbase, axle, 2WD/4WD and load specification. Front/rear, left/right where applicable, body/drivetrain, mounting and suspension package must match.
Hiace Coil SpringConfirm generation, axle, body width, wheelbase, engine, passenger/cargo/Commuter use, rated load, wire diameter, free length and color marking.
Hiace Control ArmConfirm Hiace series, body configuration, wheelbase, axle, 2WD/4WD and load specification. Front/rear, left/right, upper/lower, bushing and ball-joint inclusion and mounting dimensions must match.
Hiace Ball JointConfirm Hiace series, body configuration, wheelbase, axle, 2WD/4WD and load specification. Position, taper, stud size, mounting pattern and control-arm or knuckle application must match.
Hiace Tie Rod EndConfirm Hiace series, body configuration, wheelbase, axle, 2WD/4WD and load specification. Inner/outer, left/right thread where relevant, taper, thread size, steering rack and LHD/RHD must match.
Hiace Stabilizer LinkConfirm Hiace series, body configuration, wheelbase, axle, 2WD/4WD and load specification. Front/rear, side where specified, length, ball-joint orientation and suspension package must match.
Hiace Wheel Hub BearingConfirm Hiace series, body configuration, wheelbase, axle, 2WD/4WD and load specification. Front/rear, driven/non-driven axle, spline, studs, flange and ABS encoder must match.
Hiace CV AxleConfirm Hiace series, body configuration, wheelbase, axle, 2WD/4WD and load specification. Left/right, transmission, engine, ABS ring, spline counts, compressed length and 2WD/4WD must match.
Hiace Steering RackConfirm Hiace series, body configuration, wheelbase, axle, 2WD/4WD and load specification. LHD/RHD, electric or hydraulic assist, connector/ECU scope, mounts and tie-rod interface must match.
Hiace Engine MountCombustion applications only: confirm Hiace series, engine, transmission, 2WD/4WD, installed mount position, rubber or hydraulic design and bracket scope. Mount position and bracket scope must be identified separately.
Hiace Transmission MountConfirm Hiace series, body configuration, wheelbase, engine, transmission code, 2WD/4WD and load specification. Manual and automatic gearboxes use different mount brackets, rubber rates and installed positions; do not transfer a mount across different engine or gearbox layouts.
Hiace Leaf SpringConfirm rear axle, generation, body width, wheelbase, passenger/cargo/Commuter use, rated load, leaf count, free camber, bushing and U-bolt dimensions.
Hiace Propeller Shaft2WD/4WD, transmission, transfer case, wheelbase, shaft section, flange pattern, length and universal-joint arrangement must match.
Hiace Center Support BearingOnly applicable multi-piece shafts; wheelbase, shaft diameter, bearing size, bracket offset and installed orientation must match.
Hiace Front Differential Assembly4WD application only; series, engine, transmission/transfer case, axle ratio, housing, mounts, actuator and shaft interfaces must match.
Hiace Rear Differential AssemblySeries, 2WD/4WD, axle housing, final-drive ratio, open/LSD/locking design, ABS provision and axle-shaft interfaces must match.
Hiace Transfer Case4WD application only; transmission code, high/low range system, actuator, flange/spline interfaces, ratio and production revision must match.
Hiace Steering KnuckleFront left/right, 2WD/4WD, ball-joint tapers, hub/bearing, brake caliper, ABS sensor and steering interfaces must match.
Hiace Torsion BarEarlier torsion-bar application only; chassis, 2WD/4WD, left/right marking, length, spline ends and spring-rate specification must match.Related Hiace parts
Body, Sliding Door, Lighting & Exterior
Hiace body parts checked by H100/H200/H300, narrow/wide body, wheelbase, roof height, door layout, facelift and equipment.
Hiace HeadlightsConfirm Hiace series, facelift, body configuration, grade, side and destination market. Left/right, LHD/RHD beam pattern, halogen/LED/projector, modules, connector, facelift and trim must match.
Hiace Tail LightsConfirm Hiace series, facelift, body configuration, grade, side and destination market. narrow/wide body and cargo/passenger/Commuter van, inner/outer, left/right, LED/bulb, connector, facelift and market must match.
Hiace Fog LightsConfirm Hiace series, facelift, body configuration, grade, side and destination market. Left/right, lamp technology, bezel/bracket, connector, bumper version and trim must match.
Hiace Front BumperConfirm Hiace series, facelift, body configuration, grade, side and destination market. Body/facelift, fog lamps, parking sensors, radar/camera, grille/brackets and packing scope must match.
Hiace Rear BumperConfirm Hiace series, facelift, body configuration, grade, side and destination market. narrow/wide body and cargo/passenger/Commuter van, facelift, sensors, reflector/trim openings, lower valance and packing scope must match.
Hiace Front GrilleConfirm Hiace series, facelift, body configuration, grade, side and destination market. Facelift, trim, radar emblem or camera provision, bumper interface, finish and included mouldings must match.
Hiace Side MirrorConfirm Hiace series, facelift, body configuration, grade, side and destination market. Left/right, LHD/RHD viewing angle, connector, power fold, heating, indicator, camera and glass type must match.
Hiace FenderConfirm Hiace series, facelift, body configuration, grade, side and destination market. Left/right, body configuration style, facelift, side-marker or trim holes, material and packing method must match.
Hiace HoodConfirm Hiace series, facelift, body configuration, grade, side and destination market. Generation, facelift, latch/hinge position, insulation or washer provision, material and packing method must match.
Hiace Window RegulatorConfirm Hiace series, facelift, body configuration, grade, side and destination market. Front/rear door, left/right, body configuration style, motor inclusion, connector and LHD/RHD switch/control context must match.
Hiace Rear Door / TailgateConfirm H100/H200/H300, lift-up tailgate or split/barn-door layout, roof height, glass, wiper/camera, garnish, latch, hinge and packing scope.
Hiace Rear Door HandleConfirm generation, lift-up or split rear-door layout, keyed/keyless release, camera provision, connector, rods/cables, bezel shape and finish.
Hiace Fender LinerFront/rear, left/right, 2WD/4WD, overfender/flare package, bumper and mud-flap interfaces and fastener pattern must match.
Hiace Mud FlapsFront/rear, left/right, 2WD/4WD, flare/side-step package, bracket shape, hole pattern and single/pair/set scope must match.
Hiace Sliding Door RollerConfirm H100/H200/H300, left/right sliding door, upper/center/lower position, body width, wheelbase, door weight, rail profile and mounting pattern.
Hiace Sliding Door HandleConfirm generation, door side, exterior/interior position, keyed or smart-entry equipment, cable/rod interface, bezel and finish.
Hiace Sliding Door Lock ActuatorConfirm generation, door side, manual or power sliding door, connector, latch/cable scope, soft-close equipment and removed-unit label.
Hiace Rear Door Gas StrutLift-up rear-door application only. Confirm generation, body/roof height, left/right or pair scope, extended length, stroke, end fittings and force marking; barn-door versions differ.
Hiace Exterior Door HandleConfirm generation, door and side, keyed or keyless equipment, connector, cable/rod interface, bezel shape and paint/chrome finish.
Hiace Door Lock ActuatorConfirm door position, side, body/door layout, connector, cable/rod interfaces, child-lock or smart-entry equipment and removed-unit marking.
Hiace Windshield Washer PumpConfirm generation, windshield/rear-window/headlamp circuit, voltage, connector, outlet count and direction, seal diameter and reservoir interface.
Hiace Radiator SupportConfirm H100/H200/H300, facelift, market, full panel or member scope, radiator/condenser mounts, headlamp interfaces, sensor brackets, finish and packing frame.
Hiace Spare Wheel CarrierConfirm generation, wheelbase, rear underbody layout, wheel/tyre size, cable/winch mechanism, mounting pattern and included hardware.
Hiace Parking SensorConfirm generation, front/rear bumper, sensor position, connector, frequency/control system, holder angle, color and removed-unit number.Continue checking
Other Hiace decision guides.
All Toyota Hiace PartsCompare all 92 part requirements by system.Toyota Hiace Diesel, Gasoline, Engine & Transmission Parts GuideIdentify the engine, fuel and emission system, gearbox and market before selecting service, cooling, electrical or exhaust parts.Hiace Cargo, Passenger, Commuter & Sliding Door Parts GuideMatch doors, exterior panels, lamps and cabin hardware by commercial body, side, roof, wheelbase and installed equipment.Toyota Hiace Fleet Brake, Suspension & Driveline Parts GuideBuild repeatable commercial-vehicle lines by axle, load version, wheelbase, 2WD/4WD and measured brake or driveline interfaces.
Auto parts inquiry
Send the vehicle and part evidence.
Include brand, full model, year, engine or EV drivetrain, OE/material code, quantity, destination and packing request. You can attach a list or old-part photos.
