Record passenger/cargo use, rated load, road conditions and service interval.
Fleet maintenance

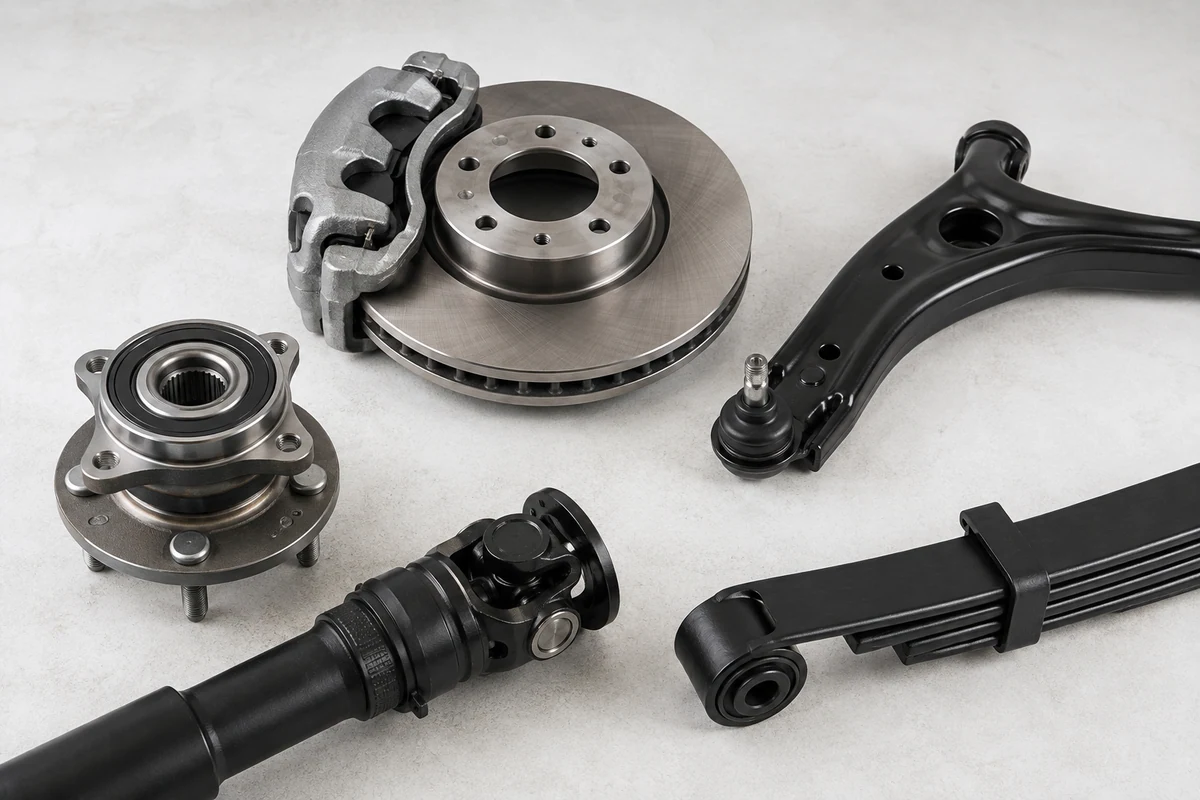

Toyota Hiace Fleet Brake, Suspension & Driveline Parts Guide
Build repeatable commercial-vehicle lines by axle, load version, wheelbase, 2WD/4WD and measured brake or driveline interfaces.
Decision workflow
Turn a broad Hiace request into traceable inquiry lines.
Separate front/rear, left/right, driven axle, shaft section and brake or parking-brake layout.
Use disc/drum dimensions, spring marks, mounts, splines, flanges, ratios and ABS provision.
Keep sample status, evidence file, quantity, grade and packing with the approved vehicle application.
Evidence hierarchy
Use the strongest available evidence without forcing an OE number.
Chassis, build date, market, body, wheelbase, roof, door layout, engine and transmission define the application.
Use a reliable OE/reference when available; otherwise use labels, interfaces, position, dimensions and old-part photos.
Quantity, grade, sample status, packing, destination and approved alternatives define the quotation.
Related Hiace parts
Choose the product family after confirming the van and system.
Related Hiace parts
Brake System
Commercial-van brake parts checked by axle, wheel/brake package, load specification and parking-brake layout.
Hiace Brake PadsConfirm Hiace series, axle, 2WD/4WD, brake package and market. Axle, pad outline, clips, wear provision, caliper and brake package must match.
Hiace Brake DiscsConfirm Hiace series, axle, 2WD/4WD, brake package and market. Front/rear, diameter, thickness, hub height, bolt pattern and wheel/brake package must match.
Hiace Brake ShoesConfirm Hiace series, axle, 2WD/4WD, brake package and market. Only applicable drum-brake systems; shoe diameter, width, adjuster and parking-brake layout must match.
Hiace Brake DrumsConfirm Hiace series, axle, 2WD/4WD, brake package and market. Only applicable rear-drum versions; diameter, width, hub arrangement, stud pattern and ABS provision must match.
Hiace Brake CaliperConfirm Hiace series, axle, 2WD/4WD, brake package and market. Axle, left/right side, piston, bracket, hose port and parking-brake mechanism must match.
Hiace Brake Master CylinderConfirm Hiace series, axle, 2WD/4WD, brake package and market. ABS/VSC system, bore, ports, reservoir, booster interface and LHD/RHD application must match.
Hiace Brake BoosterConfirm Hiace series, brake system, powertrain, LHD/RHD market, mounting and master-cylinder interface. Vacuum and electrically assisted layouts are not interchangeable, and electrically assisted layouts require their own system identification.
Hiace Brake HoseConfirm Hiace series, axle, 2WD/4WD, brake package and market. Front/rear, side, length, end fittings, brackets and production revision must match.
Hiace ABS Wheel Speed SensorConfirm Hiace series, axle, 2WD/4WD, brake package and market. Front/rear, left/right, connector, lead length, mounting and encoder compatibility must match.
Hiace Parking Brake CableFront/intermediate/rear cable position, wheelbase, body configuration, rear disc or drum system, end fittings and routing length must match.Related Hiace parts
Suspension, Steering & Driveline
Hiace chassis parts matched by generation, body width, wheelbase, roof/load version, axle, side and 2WD/4WD layout.
Hiace Shock AbsorberConfirm Hiace series, body configuration, wheelbase, axle, 2WD/4WD and load specification. Front/rear, left/right where applicable, body/drivetrain, mounting and suspension package must match.
Hiace Coil SpringConfirm generation, axle, body width, wheelbase, engine, passenger/cargo/Commuter use, rated load, wire diameter, free length and color marking.
Hiace Control ArmConfirm Hiace series, body configuration, wheelbase, axle, 2WD/4WD and load specification. Front/rear, left/right, upper/lower, bushing and ball-joint inclusion and mounting dimensions must match.
Hiace Ball JointConfirm Hiace series, body configuration, wheelbase, axle, 2WD/4WD and load specification. Position, taper, stud size, mounting pattern and control-arm or knuckle application must match.
Hiace Tie Rod EndConfirm Hiace series, body configuration, wheelbase, axle, 2WD/4WD and load specification. Inner/outer, left/right thread where relevant, taper, thread size, steering rack and LHD/RHD must match.
Hiace Stabilizer LinkConfirm Hiace series, body configuration, wheelbase, axle, 2WD/4WD and load specification. Front/rear, side where specified, length, ball-joint orientation and suspension package must match.
Hiace Wheel Hub BearingConfirm Hiace series, body configuration, wheelbase, axle, 2WD/4WD and load specification. Front/rear, driven/non-driven axle, spline, studs, flange and ABS encoder must match.
Hiace CV AxleConfirm Hiace series, body configuration, wheelbase, axle, 2WD/4WD and load specification. Left/right, transmission, engine, ABS ring, spline counts, compressed length and 2WD/4WD must match.
Hiace Steering RackConfirm Hiace series, body configuration, wheelbase, axle, 2WD/4WD and load specification. LHD/RHD, electric or hydraulic assist, connector/ECU scope, mounts and tie-rod interface must match.
Hiace Engine MountCombustion applications only: confirm Hiace series, engine, transmission, 2WD/4WD, installed mount position, rubber or hydraulic design and bracket scope. Mount position and bracket scope must be identified separately.
Hiace Transmission MountConfirm Hiace series, body configuration, wheelbase, engine, transmission code, 2WD/4WD and load specification. Manual and automatic gearboxes use different mount brackets, rubber rates and installed positions; do not transfer a mount across different engine or gearbox layouts.
Hiace Leaf SpringConfirm rear axle, generation, body width, wheelbase, passenger/cargo/Commuter use, rated load, leaf count, free camber, bushing and U-bolt dimensions.
Hiace Propeller Shaft2WD/4WD, transmission, transfer case, wheelbase, shaft section, flange pattern, length and universal-joint arrangement must match.
Hiace Center Support BearingOnly applicable multi-piece shafts; wheelbase, shaft diameter, bearing size, bracket offset and installed orientation must match.
Hiace Front Differential Assembly4WD application only; series, engine, transmission/transfer case, axle ratio, housing, mounts, actuator and shaft interfaces must match.
Hiace Rear Differential AssemblySeries, 2WD/4WD, axle housing, final-drive ratio, open/LSD/locking design, ABS provision and axle-shaft interfaces must match.
Hiace Transfer Case4WD application only; transmission code, high/low range system, actuator, flange/spline interfaces, ratio and production revision must match.
Hiace Steering KnuckleFront left/right, 2WD/4WD, ball-joint tapers, hub/bearing, brake caliper, ABS sensor and steering interfaces must match.
Hiace Torsion BarEarlier torsion-bar application only; chassis, 2WD/4WD, left/right marking, length, spline ends and spring-rate specification must match.Continue checking
Other Hiace decision guides.
All Toyota Hiace PartsCompare all 92 part requirements by system.Toyota Hiace H100, H200 & H300 Chassis and Body GuideSeparate Hiace generations, chassis families, body width, wheelbase, roof and door layout before building a parts list.Toyota Hiace Diesel, Gasoline, Engine & Transmission Parts GuideIdentify the engine, fuel and emission system, gearbox and market before selecting service, cooling, electrical or exhaust parts.Hiace Cargo, Passenger, Commuter & Sliding Door Parts GuideMatch doors, exterior panels, lamps and cabin hardware by commercial body, side, roof, wheelbase and installed equipment.
Auto parts inquiry
Send the vehicle and part evidence.
Include brand, full model, year, engine or EV drivetrain, OE/material code, quantity, destination and packing request. You can attach a list or old-part photos.
