Record transmission, transfer case, center/front/rear differential, ratio, locking system, shafts and actuators.
Chassis systems

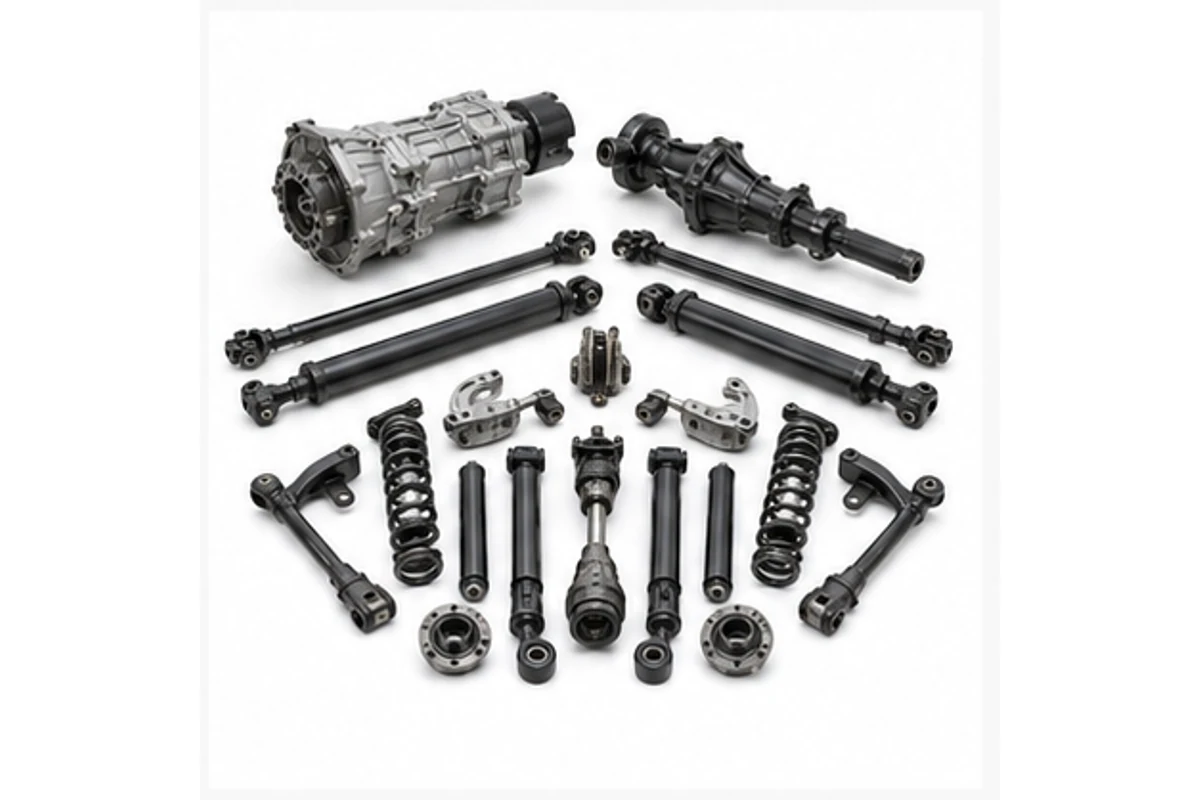

Land Cruiser 4WD, Differential, AHC, KDSS & Suspension Guide
Map the 4WD, differential, steering and standard, AHC, adaptive or KDSS suspension layout before selecting chassis parts.
Decision workflow
Turn a broad Land Cruiser request into traceable inquiry lines.
Standard dampers, AHC hydraulic units, adaptive dampers and KDSS cylinders are different product families.
Use front/rear and vehicle-left/right, then add mounts, splines, sensor provision and measured interfaces.
Use system labels, diagnostic context, removed-unit marks and dimensions before approval.
Evidence hierarchy
Use the strongest evidence without forcing an OE number.
Chassis/VIN context, series, build date, market, engine, transmission and suspension/4WD system define the application.
Use a reliable OE/reference when available; otherwise use labels, interfaces, position, dimensions and old-part photos.
Quantity, grade, sample status, packing, destination and approved alternatives define the quotation.
Related Land Cruiser parts
Choose the product family after confirming the vehicle and system.
Related Land Cruiser parts
Brake System
Land Cruiser brake parts checked by axle, series, brake package, wheel size, parking-brake layout and regional specification.

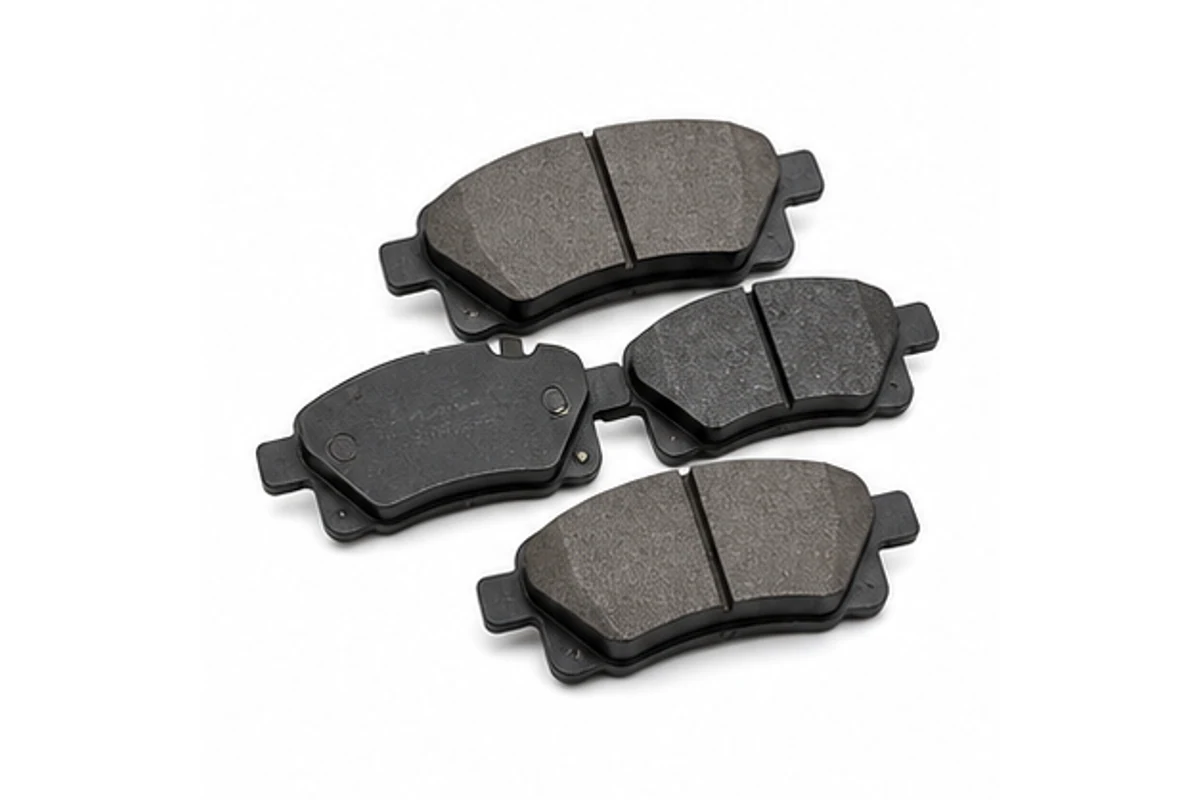

Land Cruiser Brake PadsConfirm Land Cruiser series, axle, 4WD system, brake package and market. Axle, pad outline, clips, wear provision, caliper and brake package must match.
Land Cruiser Brake DiscsConfirm Land Cruiser series, axle, 4WD system, brake package and market. Front/rear, diameter, thickness, hub height, bolt pattern and wheel/brake package must match.
Land Cruiser Brake ShoesConfirm whether the request is for rear service shoes or the internal drum-in-hat parking-brake shoes, then match series, axle, dimensions and hardware.
Land Cruiser Brake DrumsOnly selected older or Prado rear-brake applications use service brake drums. Confirm series, axle, drum diameter, height, bolt pattern, center bore and ABS/parking-brake layout.
Land Cruiser Brake CaliperConfirm Land Cruiser series, axle, 4WD system, brake package and market. Axle, left/right side, piston, bracket, hose port and parking-brake mechanism must match.
Land Cruiser Brake Master CylinderConfirm Land Cruiser series, axle, 4WD system, brake package and market. ABS/VSC system, bore, ports, reservoir, booster interface and LHD/RHD application must match.
Land Cruiser Brake BoosterConfirm Land Cruiser series, brake system, powertrain, LHD/RHD market, mounting and master-cylinder interface. Vacuum and electrically assisted layouts are not interchangeable, and electrified Prado brake-assist parts require their own system identification.
Land Cruiser Brake HoseConfirm Land Cruiser series, axle, 4WD system, brake package and market. Front/rear, side, length, end fittings, brackets and production revision must match.
Land Cruiser ABS Wheel Speed SensorConfirm Land Cruiser series, axle, 4WD system, brake package and market. Front/rear, left/right, connector, lead length, mounting and encoder compatibility must match.
Land Cruiser Parking Brake CableFront/intermediate/rear cable position, wheelbase, body configuration, rear disc or drum system, end fittings and routing length must match.Related Land Cruiser parts
Suspension, Steering, 4WD & Driveline
Land Cruiser chassis parts matched by full series, axle, side, suspension system, 4WD layout, ratio and vehicle equipment.
Land Cruiser Shock AbsorberConfirm Land Cruiser series, body configuration, wheelbase, axle, 4WD system and load specification. Front/rear, left/right where applicable, body/drivetrain, mounting and suspension package must match.
Land Cruiser Coil SpringConfirm LC100, LC200, LC300 or Prado, axle, side, engine/vehicle weight, standard/AHC/adaptive suspension, trim, wire diameter, free length and color/marking.
Land Cruiser Control ArmConfirm Land Cruiser series, body configuration, wheelbase, axle, 4WD system and load specification. Front/rear, left/right, upper/lower, bushing and ball-joint inclusion and mounting dimensions must match.
Land Cruiser Ball JointConfirm Land Cruiser series, body configuration, wheelbase, axle, 4WD system and load specification. Position, taper, stud size, mounting pattern and control-arm or knuckle application must match.
Land Cruiser Tie Rod EndConfirm Land Cruiser series, body configuration, wheelbase, axle, 4WD system and load specification. Inner/outer, left/right thread where relevant, taper, thread size, steering rack and LHD/RHD must match.

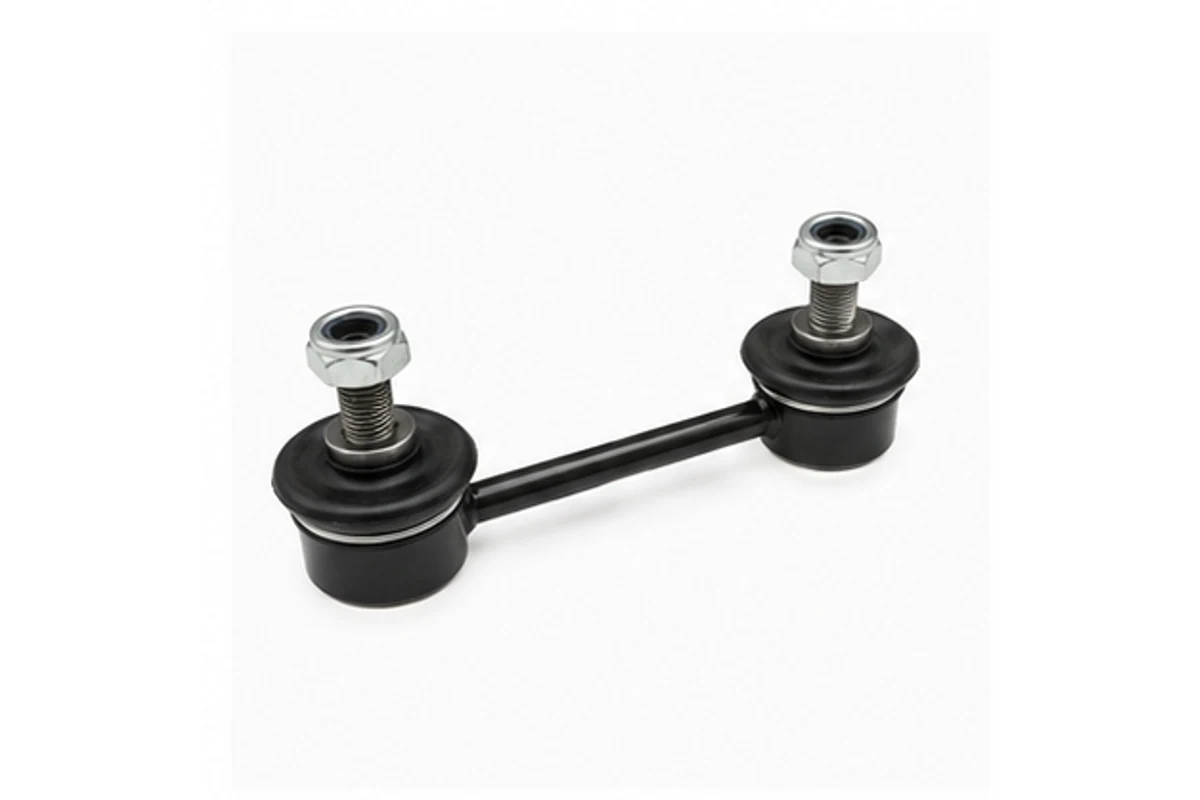

Land Cruiser Stabilizer LinkConfirm Land Cruiser series, body configuration, wheelbase, axle, 4WD system and load specification. Front/rear, side where specified, length, ball-joint orientation and suspension package must match.
Land Cruiser Wheel Hub BearingConfirm Land Cruiser series, body configuration, wheelbase, axle, 4WD system and load specification. Front/rear, driven/non-driven axle, spline, studs, flange and ABS encoder must match.
Land Cruiser CV AxleConfirm Land Cruiser series, body configuration, wheelbase, axle, 4WD system and load specification. Left/right, transmission, engine, ABS ring, spline counts, compressed length and 4WD system must match.
Land Cruiser Steering RackConfirm series and steering design first; some applications use a recirculating-ball steering gearbox rather than a rack. Match LHD/RHD, ratio, hydraulic/electric assist, mounts and tie-rod interfaces.
Land Cruiser Engine MountConfirm series, engine or hybrid powertrain, transmission, 4WD system, installed position, rubber or hydraulic design and bracket scope. Electrified Prado applications still require the exact engine and drive-unit mounting layout.
Land Cruiser Transmission MountConfirm series, wheelbase, engine or hybrid powertrain, transmission code, 4WD system, installed position, bracket shape and rubber rate. Manual, automatic and electrified layouts are not interchangeable.
Land Cruiser Propeller Shaft4WD system, transmission, transfer case, wheelbase, shaft section, flange pattern, length and universal-joint arrangement must match.
Land Cruiser Center Support BearingOnly applicable multi-piece shafts; wheelbase, shaft diameter, bearing size, bracket offset and installed orientation must match.
Land Cruiser Front Differential Assembly4WD application only; series, engine, transmission/transfer case, axle ratio, housing, mounts, actuator and shaft interfaces must match.
Land Cruiser Rear Differential AssemblySeries, 4WD system, axle housing, final-drive ratio, open/LSD/locking design, ABS provision and axle-shaft interfaces must match.
Land Cruiser Transfer Case4WD application only; transmission code, high/low range system, actuator, flange/spline interfaces, ratio and production revision must match.
Land Cruiser Steering KnuckleFront left/right, 4WD system, ball-joint tapers, hub/bearing, brake caliper, ABS sensor and steering interfaces must match.
Land Cruiser AHC Hydraulic Shock AbsorberAHC-equipped application only. Confirm LC100 or LC200 series, axle, side, suspension option, hydraulic line connection, damping mark and installed-unit label.
Land Cruiser AHC Suspension PumpAHC-equipped application only. Confirm series, system layout, pump label, connector, ports, mounting and whether the quotation is for a bare pump or complete hydraulic unit.
Land Cruiser AHC AccumulatorAHC-equipped application only. Confirm LC100/LC200 series, circuit position, pressure specification, thread, body dimensions and removed-part marking.
Land Cruiser KDSS Hydraulic CylinderKDSS-equipped application only. Confirm Land Cruiser or Prado series, front/rear position, left/right side where applicable, pipe ports, mounting dimensions and unit label.
Land Cruiser Ride Height SensorConfirm AHC, adaptive or leveling system, series, axle, side, connector, lever orientation, link length and calibration requirement.
Land Cruiser Axle ShaftConfirm series, front/rear axle, left/right side, differential and locking system, length, spline count, bearing/seal interfaces and ABS provision.
Land Cruiser Universal JointConfirm front/rear propeller shaft and joint position, bearing-cap diameter, span, circlip arrangement, grease provision and yoke condition.
Land Cruiser Transfer Case ActuatorConfirm series, transfer-case code, actuator function, connector, indexing position, gear interface and old-unit label before installation.Continue checking
Other Land Cruiser decision guides.
All Toyota Land Cruiser PartsCompare all 93 part requirements by system.Land Cruiser LC100, LC200, LC300 & Prado Series GuideSeparate full-size LC100, LC200 and LC300 from Prado 90/120/150/250 families before building a parts list.Land Cruiser Gasoline, Diesel, Engine & Transmission Parts GuideIdentify engine family, fuel system, emission market and transmission before ordering service, fuel, cooling, electrical or exhaust parts.Land Cruiser Body, Lighting, ADAS & Packing GuideMatch lamps, bumpers, panels, mirrors and exterior hardware by series, facelift, market, side, grade and installed safety equipment.
Auto parts inquiry
Send the vehicle and part evidence.
Include brand, full model, year, engine or EV drivetrain, OE/material code, quantity, destination and packing request. You can attach a list or old-part photos.
