Record model code, frame/VIN context, production month and destination market; the Land Cruiser name alone is not a fitment key.
Vehicle identity
Land Cruiser LC100, LC200, LC300 & Prado Series Guide
Separate full-size LC100, LC200 and LC300 from Prado 90/120/150/250 families before building a parts list.
Decision workflow
Turn a broad Land Cruiser request into traceable inquiry lines.
Prado is commonly searched under Land Cruiser, but body, chassis, driveline, brake and powertrain parts are frequently different.
Lamps, bumpers, grilles, sensors, trim and control modules can change within one series.
Keep series, engine, position, OE/label or dimensions, quantity and buyer item code together.
Evidence hierarchy
Use the strongest evidence without forcing an OE number.
Chassis/VIN context, series, build date, market, engine, transmission and suspension/4WD system define the application.
Use a reliable OE/reference when available; otherwise use labels, interfaces, position, dimensions and old-part photos.
Quantity, grade, sample status, packing, destination and approved alternatives define the quotation.
Related Land Cruiser parts
Choose the product family after confirming the vehicle and system.
Related Land Cruiser parts
Suspension, Steering, 4WD & Driveline
Land Cruiser chassis parts matched by full series, axle, side, suspension system, 4WD layout, ratio and vehicle equipment.

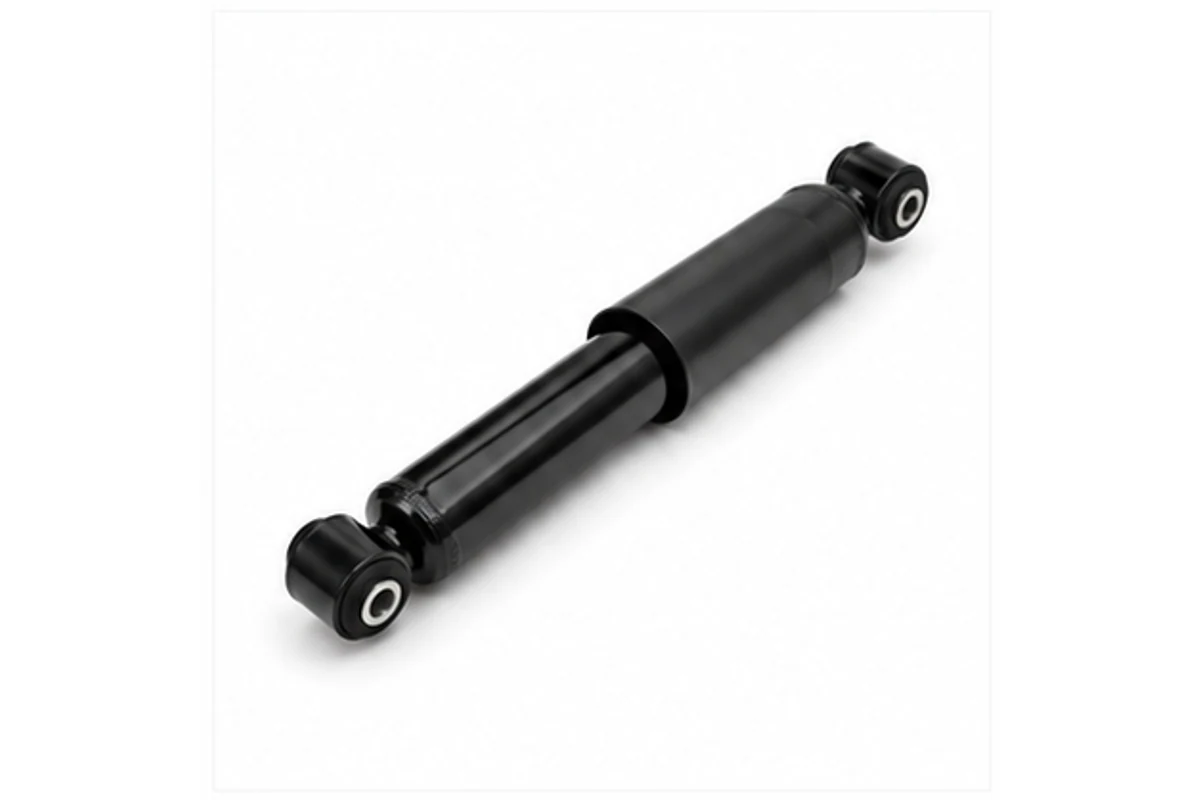

Land Cruiser Shock AbsorberConfirm Land Cruiser series, body configuration, wheelbase, axle, 4WD system and load specification. Front/rear, left/right where applicable, body/drivetrain, mounting and suspension package must match.
Land Cruiser Coil SpringConfirm LC100, LC200, LC300 or Prado, axle, side, engine/vehicle weight, standard/AHC/adaptive suspension, trim, wire diameter, free length and color/marking.
Land Cruiser Control ArmConfirm Land Cruiser series, body configuration, wheelbase, axle, 4WD system and load specification. Front/rear, left/right, upper/lower, bushing and ball-joint inclusion and mounting dimensions must match.
Land Cruiser Ball JointConfirm Land Cruiser series, body configuration, wheelbase, axle, 4WD system and load specification. Position, taper, stud size, mounting pattern and control-arm or knuckle application must match.
Land Cruiser Tie Rod EndConfirm Land Cruiser series, body configuration, wheelbase, axle, 4WD system and load specification. Inner/outer, left/right thread where relevant, taper, thread size, steering rack and LHD/RHD must match.
Land Cruiser Stabilizer LinkConfirm Land Cruiser series, body configuration, wheelbase, axle, 4WD system and load specification. Front/rear, side where specified, length, ball-joint orientation and suspension package must match.
Land Cruiser Wheel Hub BearingConfirm Land Cruiser series, body configuration, wheelbase, axle, 4WD system and load specification. Front/rear, driven/non-driven axle, spline, studs, flange and ABS encoder must match.
Land Cruiser CV AxleConfirm Land Cruiser series, body configuration, wheelbase, axle, 4WD system and load specification. Left/right, transmission, engine, ABS ring, spline counts, compressed length and 4WD system must match.
Land Cruiser Steering RackConfirm series and steering design first; some applications use a recirculating-ball steering gearbox rather than a rack. Match LHD/RHD, ratio, hydraulic/electric assist, mounts and tie-rod interfaces.
Land Cruiser Engine MountConfirm series, engine or hybrid powertrain, transmission, 4WD system, installed position, rubber or hydraulic design and bracket scope. Electrified Prado applications still require the exact engine and drive-unit mounting layout.
Land Cruiser Transmission MountConfirm series, wheelbase, engine or hybrid powertrain, transmission code, 4WD system, installed position, bracket shape and rubber rate. Manual, automatic and electrified layouts are not interchangeable.
Land Cruiser Propeller Shaft4WD system, transmission, transfer case, wheelbase, shaft section, flange pattern, length and universal-joint arrangement must match.
Land Cruiser Center Support BearingOnly applicable multi-piece shafts; wheelbase, shaft diameter, bearing size, bracket offset and installed orientation must match.
Land Cruiser Front Differential Assembly4WD application only; series, engine, transmission/transfer case, axle ratio, housing, mounts, actuator and shaft interfaces must match.
Land Cruiser Rear Differential AssemblySeries, 4WD system, axle housing, final-drive ratio, open/LSD/locking design, ABS provision and axle-shaft interfaces must match.
Land Cruiser Transfer Case4WD application only; transmission code, high/low range system, actuator, flange/spline interfaces, ratio and production revision must match.
Land Cruiser Steering KnuckleFront left/right, 4WD system, ball-joint tapers, hub/bearing, brake caliper, ABS sensor and steering interfaces must match.
Land Cruiser AHC Hydraulic Shock AbsorberAHC-equipped application only. Confirm LC100 or LC200 series, axle, side, suspension option, hydraulic line connection, damping mark and installed-unit label.
Land Cruiser AHC Suspension PumpAHC-equipped application only. Confirm series, system layout, pump label, connector, ports, mounting and whether the quotation is for a bare pump or complete hydraulic unit.
Land Cruiser AHC AccumulatorAHC-equipped application only. Confirm LC100/LC200 series, circuit position, pressure specification, thread, body dimensions and removed-part marking.
Land Cruiser KDSS Hydraulic CylinderKDSS-equipped application only. Confirm Land Cruiser or Prado series, front/rear position, left/right side where applicable, pipe ports, mounting dimensions and unit label.
Land Cruiser Ride Height SensorConfirm AHC, adaptive or leveling system, series, axle, side, connector, lever orientation, link length and calibration requirement.
Land Cruiser Axle ShaftConfirm series, front/rear axle, left/right side, differential and locking system, length, spline count, bearing/seal interfaces and ABS provision.
Land Cruiser Universal JointConfirm front/rear propeller shaft and joint position, bearing-cap diameter, span, circlip arrangement, grease provision and yoke condition.
Land Cruiser Transfer Case ActuatorConfirm series, transfer-case code, actuator function, connector, indexing position, gear interface and old-unit label before installation.Related Land Cruiser parts
Body, Lighting, Exterior & Interior
Land Cruiser lamps, panels, mirrors and exterior parts checked by LC100, LC200, LC300 or Prado, facelift, side, grade and installed equipment.
Land Cruiser HeadlightsConfirm Land Cruiser series, facelift, body configuration, grade, side and destination market. Left/right, LHD/RHD beam pattern, halogen/LED/projector, modules, connector, facelift and trim must match.
Land Cruiser Tail LightsConfirm Land Cruiser series, facelift, body configuration, grade, side and destination market. full-size Land Cruiser or Prado body, inner/outer, left/right, LED/bulb, connector, facelift and market must match.
Land Cruiser Fog LightsConfirm Land Cruiser series, facelift, body configuration, grade, side and destination market. Left/right, lamp technology, bezel/bracket, connector, bumper version and trim must match.
Land Cruiser Front BumperConfirm Land Cruiser series, facelift, body configuration, grade, side and destination market. Body/facelift, fog lamps, parking sensors, radar/camera, grille/brackets and packing scope must match.
Land Cruiser Rear BumperConfirm Land Cruiser series, facelift, body configuration, grade, side and destination market. full-size Land Cruiser or Prado body, facelift, sensors, reflector/trim openings, lower valance and packing scope must match.
Land Cruiser Front GrilleConfirm Land Cruiser series, facelift, body configuration, grade, side and destination market. Facelift, trim, radar emblem or camera provision, bumper interface, finish and included mouldings must match.
Land Cruiser Side MirrorConfirm Land Cruiser series, facelift, body configuration, grade, side and destination market. Left/right, LHD/RHD viewing angle, connector, power fold, heating, indicator, camera and glass type must match.
Land Cruiser FenderConfirm Land Cruiser series, facelift, body configuration, grade, side and destination market. Left/right, body configuration, facelift, side-marker or trim holes, material and packing method must match.
Land Cruiser HoodConfirm Land Cruiser series, facelift, body configuration, grade, side and destination market. Generation, facelift, latch/hinge position, insulation or washer provision, material and packing method must match.
Land Cruiser Window RegulatorConfirm Land Cruiser series, facelift, body configuration, grade, side and destination market. Front/rear door, left/right, body configuration, motor inclusion, connector and LHD/RHD switch/control context must match.
Land Cruiser Fender LinerFront/rear, left/right, 4WD system, overfender/flare package, bumper and mud-flap interfaces and fastener pattern must match.
Land Cruiser Mud FlapsFront/rear, left/right, 4WD system, flare/side-step package, bracket shape, hole pattern and single/pair/set scope must match.
Land Cruiser Running BoardConfirm LC100, LC200, LC300 or Prado, left/right side, wheelbase, trim, illumination provision, bracket set, finish and packing length.
Land Cruiser Fender FlareConfirm series, facelift, front/rear corner, left/right side, narrow/wide body, sensor or lamp provision, clips and finish.
Land Cruiser Exterior Door HandleConfirm front/rear door, left/right side, LHD/RHD, keyed or smart-entry equipment, connector, cable/rod interface and paint/chrome finish.
Land Cruiser Parking SensorConfirm series, front/rear bumper, sensor position, connector, frequency/control system, holder angle, color and removed-unit number.
Land Cruiser Windshield Washer PumpConfirm series, windshield/rear-window/headlamp circuit, voltage, connector, outlet count and direction, seal diameter and reservoir interface.
Land Cruiser Radiator SupportConfirm series, facelift, market, full panel or member scope, radiator/condenser mounts, headlamp interfaces, sensor brackets, finish and packing frame.
Land Cruiser Spare Wheel CarrierConfirm series and market, underbody or rear-door layout, wheel/tyre size, cable or hinge mechanism, mounting pattern and included hardware.Continue checking
Other Land Cruiser decision guides.
All Toyota Land Cruiser PartsCompare all 93 part requirements by system.Land Cruiser Gasoline, Diesel, Engine & Transmission Parts GuideIdentify engine family, fuel system, emission market and transmission before ordering service, fuel, cooling, electrical or exhaust parts.Land Cruiser 4WD, Differential, AHC, KDSS & Suspension GuideMap the 4WD, differential, steering and standard, AHC, adaptive or KDSS suspension layout before selecting chassis parts.Land Cruiser Body, Lighting, ADAS & Packing GuideMatch lamps, bumpers, panels, mirrors and exterior hardware by series, facelift, market, side, grade and installed safety equipment.
Auto parts inquiry
Send the vehicle and part evidence.
Include brand, full model, year, engine or EV drivetrain, OE/material code, quantity, destination and packing request. You can attach a list or old-part photos.
