Displacement is not enough; record engine code, induction type, production date and market.
Powertrain boundary

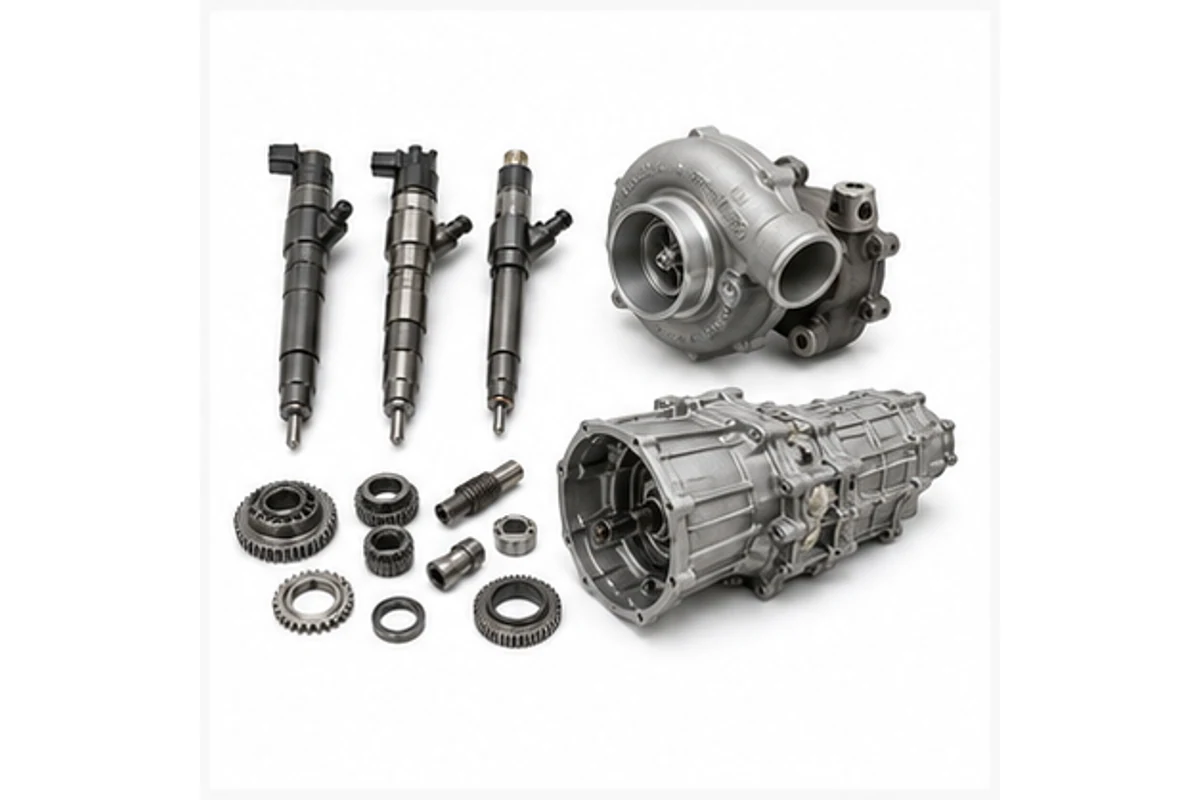

Land Cruiser Gasoline, Diesel, Engine & Transmission Parts Guide
Identify engine family, fuel system, emission market and transmission before ordering service, fuel, cooling, electrical or exhaust parts.
Decision workflow
Turn a broad Land Cruiser request into traceable inquiry lines.
Glow plugs, common-rail pumps, DPF and EGR requests belong to defined diesel applications; spark and oxygen-sensor requests need the exact gasoline/emission layout.
Market-specific mild-hybrid or full-hybrid Prado components need the exact powertrain and voltage-system evidence.
State bare component, complete assembly, sensors, pipes, gaskets, brackets and calibration requirements.
Evidence hierarchy
Use the strongest evidence without forcing an OE number.
Chassis/VIN context, series, build date, market, engine, transmission and suspension/4WD system define the application.
Use a reliable OE/reference when available; otherwise use labels, interfaces, position, dimensions and old-part photos.
Quantity, grade, sample status, packing, destination and approved alternatives define the quotation.
Related Land Cruiser parts
Choose the product family after confirming the vehicle and system.
Related Land Cruiser parts
Maintenance, Service & Ignition
Land Cruiser filters, belt, ignition and transmission-service parts separated by LC100, LC200, LC300 or Prado, engine, gearbox and market.

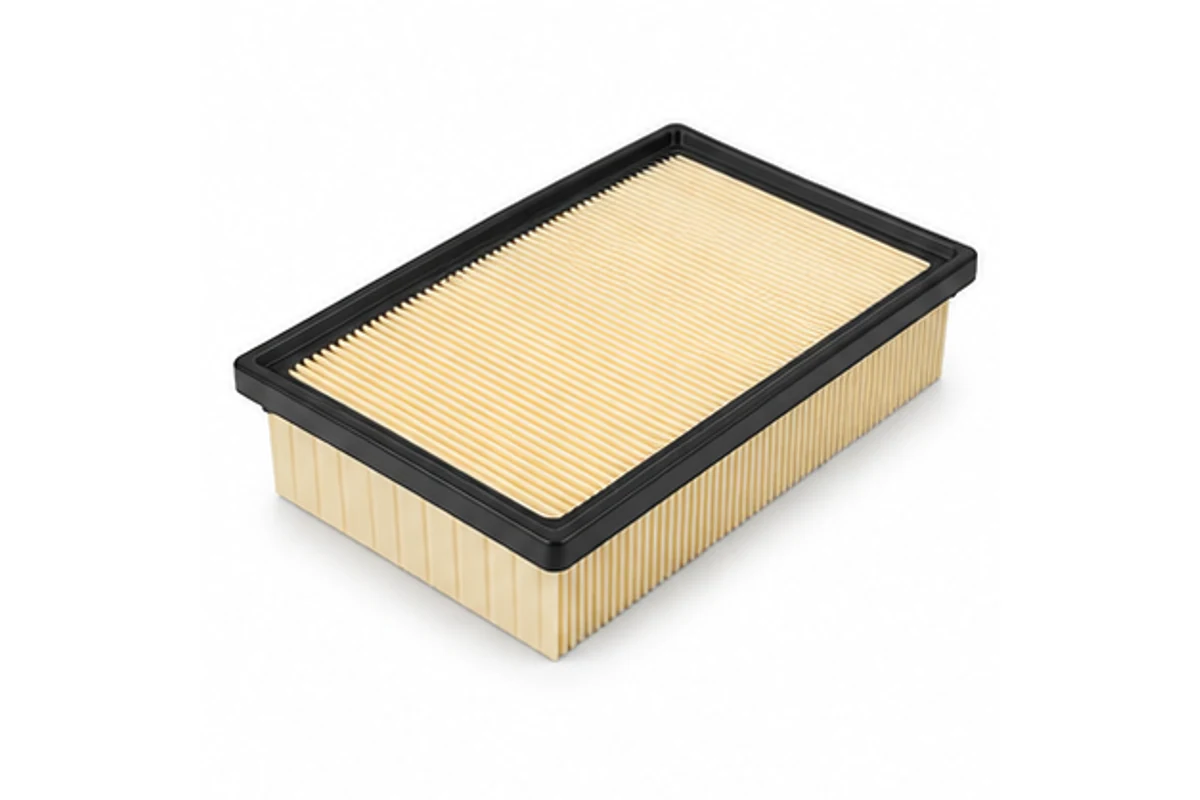

Land Cruiser Air FilterConfirm Land Cruiser series, production date, engine, transmission and market. Engine family, air-box design, frame dimensions and seal must match.
Land Cruiser Cabin Air FilterConfirm Land Cruiser series, production date, engine, transmission and market. Filter dimensions, airflow direction and paper or activated-carbon grade must match.
Land Cruiser Oil FilterConfirm Land Cruiser series, production date, engine, transmission and market. Engine, filter style, thread or cartridge size, bypass specification and gasket must match.
Land Cruiser Fuel FilterConfirm Land Cruiser series, production date, engine, transmission and market. Petrol and diesel systems, in-tank and in-line positions, ports and pressure requirements are not interchangeable.
Land Cruiser Transmission FilterAutomatic-transmission application only. Confirm series, production date, engine, transmission code, pan shape, filter position, oil-pickup depth and gasket scope; manual gearboxes use different service parts.
Land Cruiser Spark PlugsGasoline-engine application only. Confirm engine code, heat range, thread, reach, electrode type and gap; diesel engines use glow plugs and market-specific hybrid Prado still requires its exact gasoline-engine specification.
Land Cruiser Ignition CoilConfirm Land Cruiser series, production date, engine, transmission and market. Engine family, connector, coil body, boot length and production date must match; diesel applications are excluded.
Land Cruiser Drive BeltConfirm series, engine and belt diagram. Match rib count, effective length, pulley route and driven accessories; market-specific electrified Prado layouts require their exact starter-generator or accessory-drive specification.
Land Cruiser Belt TensionerConfirm Land Cruiser series, production date, engine, transmission and market. Engine, mounting pattern, pulley diameter, belt route and assembly scope must match.
Land Cruiser Clutch KitManual-transmission application only. Confirm LC100, LC200 or Prado series, engine, gearbox, flywheel type, disc diameter, spline, release system and kit contents; most LC300 applications use automatic transmissions.
Land Cruiser Glow PlugsDiesel-engine application only. Confirm engine code, voltage, thread, reach, terminal and glow-control specification; gasoline and hybrid applications do not use diesel glow plugs.
Land Cruiser Wiper BladesDriver/passenger position, blade lengths, connector, arm type and LHD/RHD wiping layout must match.Related Land Cruiser parts
Engine, Diesel, Cooling, Fuel, Electrical & A/C
Gasoline, diesel and market-specific electrified Prado requests kept separate across fuel, emission, cooling, electrical and climate systems.

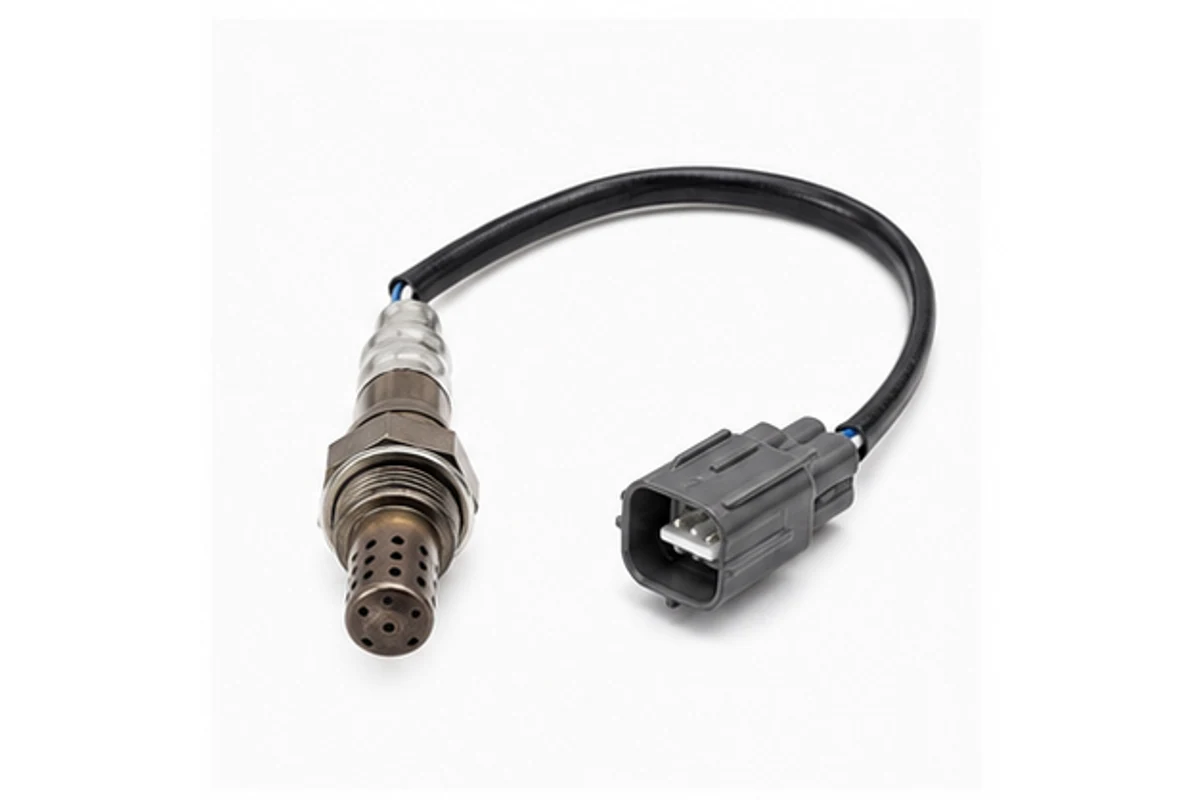

Land Cruiser Oxygen SensorConfirm the exact Land Cruiser gasoline, diesel or market-specific electrified Prado powertrain before selection. Upstream/downstream, engine, emission market, connector, wire count and length must match; pure EV applications are excluded.
Land Cruiser Mass Air Flow SensorConfirm the exact Land Cruiser gasoline, diesel or market-specific electrified Prado powertrain before selection. Engine, sensor/housing scope, connector, calibration and production market must match.
Land Cruiser Crankshaft Position SensorConfirm the exact Land Cruiser gasoline, diesel or market-specific electrified Prado powertrain before selection. Engine code, sensor position, connector, lead, mounting and target-wheel system must match.
Land Cruiser Camshaft Position SensorConfirm the exact Land Cruiser gasoline, diesel or market-specific electrified Prado powertrain before selection. Engine, intake/exhaust or bank position, connector, mounting and production revision must match.
Land Cruiser Fuel PumpConfirm the exact Land Cruiser gasoline, diesel or market-specific electrified Prado powertrain before selection. Petrol and diesel systems differ; engine, pump/module scope, pressure, flange, sender and connector must match.
Land Cruiser Fuel InjectorConfirm the exact Land Cruiser gasoline, diesel or market-specific electrified Prado powertrain before selection. Petrol port/direct injection and diesel injectors are different; engine, flow/calibration, connector and seal kit must match.
Land Cruiser Throttle BodyConfirm the exact Land Cruiser gasoline, diesel or market-specific electrified Prado powertrain before selection. Engine, bore, connector, coolant ports, calibration and included sensor/motor scope must match.
Land Cruiser Water PumpConfirm Land Cruiser powertrain and coolant circuit first. For combustion engines, match engine code, mechanical/electric drive, housing, ports and seal; electrified Prado thermal pumps require voltage, connector, ports and installed-circuit evidence.
Land Cruiser RadiatorConfirm Land Cruiser series, gasoline, diesel or market-specific electrified Prado cooling package, transmission and market. Core size, tanks, hose layout, cooler provision, filler arrangement, fan mounts and adjoining thermal circuit must match.
Land Cruiser ThermostatConfirm engine or hybrid powertrain, coolant circuit, opening temperature, housing or insert scope, seal and ports. Do not substitute a thermal-management valve for an engine thermostat.
Land Cruiser Radiator Cooling FanConfirm Land Cruiser powertrain, cooling-module layout and market. Fan count, blade and shroud dimensions, connector, controller and radiator/condenser interfaces must match; electrified Prado thermal fans require the exact electric-system specification.
Land Cruiser AlternatorConfirm gasoline or diesel engine, rated output, pulley, smart-charge control, connector and mounts. Electrified Prado applications may use different charging architecture and must be identified separately.
Land Cruiser Starter MotorConfirm gasoline or diesel engine, transmission, rated output, pinion, terminals and mounting. Market-specific hybrid applications use their own starting architecture.
Land Cruiser A/C CompressorConfirm series, engine/powertrain, refrigerant, oil, ports, pulley or high-voltage drive, mounting and connector. Belt-driven and electric compressors are not interchangeable.
Land Cruiser A/C CondenserConfirm the exact Land Cruiser gasoline, diesel or market-specific electrified Prado powertrain before selection. Refrigerant, dimensions, ports, receiver-drier, brackets and model-year front-end layout must match.
Land Cruiser Blower MotorConfirm the exact Land Cruiser gasoline, diesel or market-specific electrified Prado powertrain before selection. LHD/RHD HVAC case, connector, rotation, fan diameter, resistor/controller and production revision must match.
Land Cruiser Catalytic ConverterCombustion-engine and hybrid applications use engine aftertreatment. Confirm engine, exhaust position, emission market, sensor ports, flange layout and local import rules; battery-electric applications have no catalytic converter.
Land Cruiser EGR ValveConfirm the exact Land Cruiser gasoline, diesel or market-specific electrified Prado powertrain before selection. Only engines equipped with EGR; engine, emission market, valve/cooler scope, connector and ports must match.
Land Cruiser Vacuum PumpConfirm Land Cruiser powertrain, vacuum circuit and brake-system design. For engine-driven pumps, match drive and mounting; for electric pumps, match voltage, connector, ports and controller. Do not assume combustion and electrified Prado brake-vacuum parts interchange.
Land Cruiser Common Rail Fuel PumpDiesel application only; engine code, pump label, pressure/control system, gear or drive interface, ports and calibration code must match.
Land Cruiser TurbochargerEngine code, variable/fixed geometry, actuator, oil/coolant ports, compressor and turbine flanges and included hardware must match.
Land Cruiser IntercoolerTurbo engine, top/front-mount layout, core size, inlet/outlet diameter and orientation, brackets, sensors and duct interfaces must match.
Land Cruiser Diesel Particulate FilterDiesel application only; engine, emission market, sensor and pressure ports, flange layout, substrate scope and local import rules must match.
Land Cruiser Fan ClutchMechanical-fan applications only; engine, thread or flange, pilot, bolt pattern, fan diameter and temperature-control specification must match.
Land Cruiser Engine Oil CoolerConfirm engine code, cooler type, housing or core scope, coolant/oil ports, gasket arrangement, mounting and production revision.
Land Cruiser Transmission Oil CoolerConfirm transmission code, standalone or radiator-integrated layout, line fittings, cooler dimensions, mounting and market/towing equipment.
Land Cruiser Fuel Rail Pressure SensorConfirm diesel or gasoline engine, rail/system position, thread, pressure range, connector, calibration reference and removed-sensor marking.Continue checking
Other Land Cruiser decision guides.
All Toyota Land Cruiser PartsCompare all 93 part requirements by system.Land Cruiser LC100, LC200, LC300 & Prado Series GuideSeparate full-size LC100, LC200 and LC300 from Prado 90/120/150/250 families before building a parts list.Land Cruiser 4WD, Differential, AHC, KDSS & Suspension GuideMap the 4WD, differential, steering and standard, AHC, adaptive or KDSS suspension layout before selecting chassis parts.Land Cruiser Body, Lighting, ADAS & Packing GuideMatch lamps, bumpers, panels, mirrors and exterior hardware by series, facelift, market, side, grade and installed safety equipment.
Auto parts inquiry
Send the vehicle and part evidence.
Include brand, full model, year, engine or EV drivetrain, OE/material code, quantity, destination and packing request. You can attach a list or old-part photos.
