Record FWD, mechanical AWD or electrified rear drive together with engine or hybrid system and transmission/transaxle code.
RAV4 driveline boundary

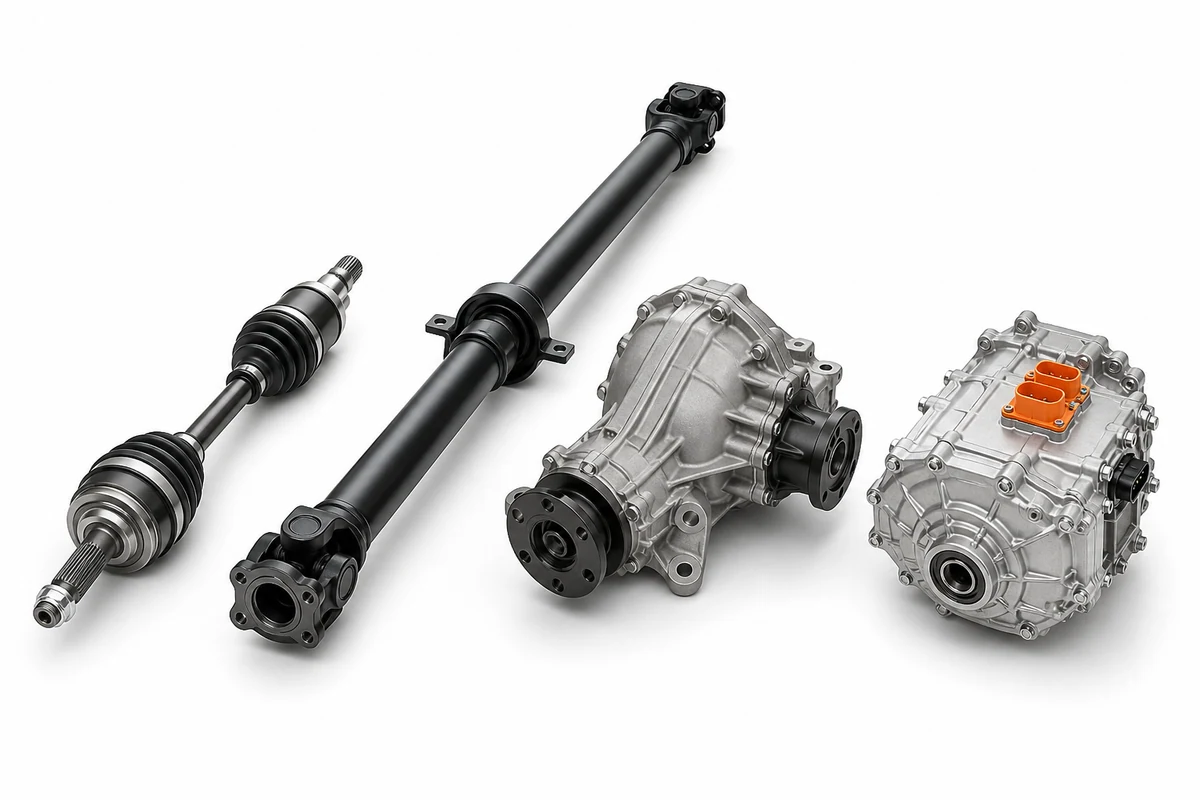

Toyota RAV4 FWD, AWD & E-Four Driveline Guide
Identify FWD, mechanical AWD and electric-rear-drive E-Four layouts before ordering axles, hubs, propeller shafts, rear driveline, springs, dampers or mounts.
Decision workflow
Turn a broad RAV4 request into traceable inquiry lines.
A mechanical propeller shaft and rear differential are not substitutes for an electric rear drive unit used by an E-Four application.
Add front/rear, left/right, spline counts, ABS encoder, flange, compressed length and adjoining transmission or rear-drive interface.
Engine, battery, AWD hardware, grade, wheel package and towing/load equipment can alter spring and damper requirements.
Evidence hierarchy
Use the strongest available evidence without forcing an OE number.
VIN/chassis context, generation, build date, market, grade, powertrain and drive layout define the application.
Use a reliable OE/reference when available; otherwise use labels, interfaces, position, dimensions and old-part photos.
Quantity, grade, sample status, packing, destination and approved alternatives define what is quoted.
Related RAV4 parts
Choose the product family after confirming the vehicle and system.
Related RAV4 parts
Brake System
RAV4 brake components checked by axle, brake package, parking-brake design, drivetrain and vehicle weight.
RAV4 Brake PadsAxle, pad outline, clips, wear provision, caliper and brake package must match.
RAV4 Brake DiscsFront/rear, diameter, thickness, hub height, bolt pattern and wheel/brake package must match.
RAV4 Brake CaliperAxle, left/right side, piston, bracket, hose port and parking-brake mechanism must match.
RAV4 Brake Master CylinderABS/VSC system, bore, ports, reservoir, booster interface and LHD/RHD application must match.
RAV4 Brake BoosterGasoline, diesel and hybrid brake-assist systems, LHD/RHD, mounting and master-cylinder interface must be separated.
RAV4 Brake HoseFront/rear, side, length, end fittings, brackets and production revision must match.
RAV4 ABS Wheel Speed SensorFront/rear, left/right, connector, lead length, mounting and encoder compatibility must match.
RAV4 Parking Brake ShoesGeneration, rear rotor hat diameter, shoe width, hardware and mechanical or electronic parking-brake layout must match; not every RAV4 uses this design.
RAV4 Brake Light SwitchConnector, pin count, mount, adjustment method, cruise/VSC integration and production revision must match.Related RAV4 parts
Suspension, Steering, AWD & Driveline
RAV4 chassis and AWD parts matched by generation, axle, side, FWD/AWD/E-Four layout and suspension package.
RAV4 Shock AbsorberFront/rear, left/right where applicable, body/drivetrain, mounting and suspension package must match.
RAV4 Strut MountFront/rear, side, bearing inclusion, bolt pattern and suspension package must match.
RAV4 Coil SpringFront/rear, engine or hybrid weight, body style, trim, wire diameter and free length must match.
RAV4 Control ArmFront/rear, left/right, upper/lower, bushing and ball-joint inclusion and mounting dimensions must match.
RAV4 Ball JointPosition, taper, stud size, mounting pattern and control-arm or knuckle application must match.

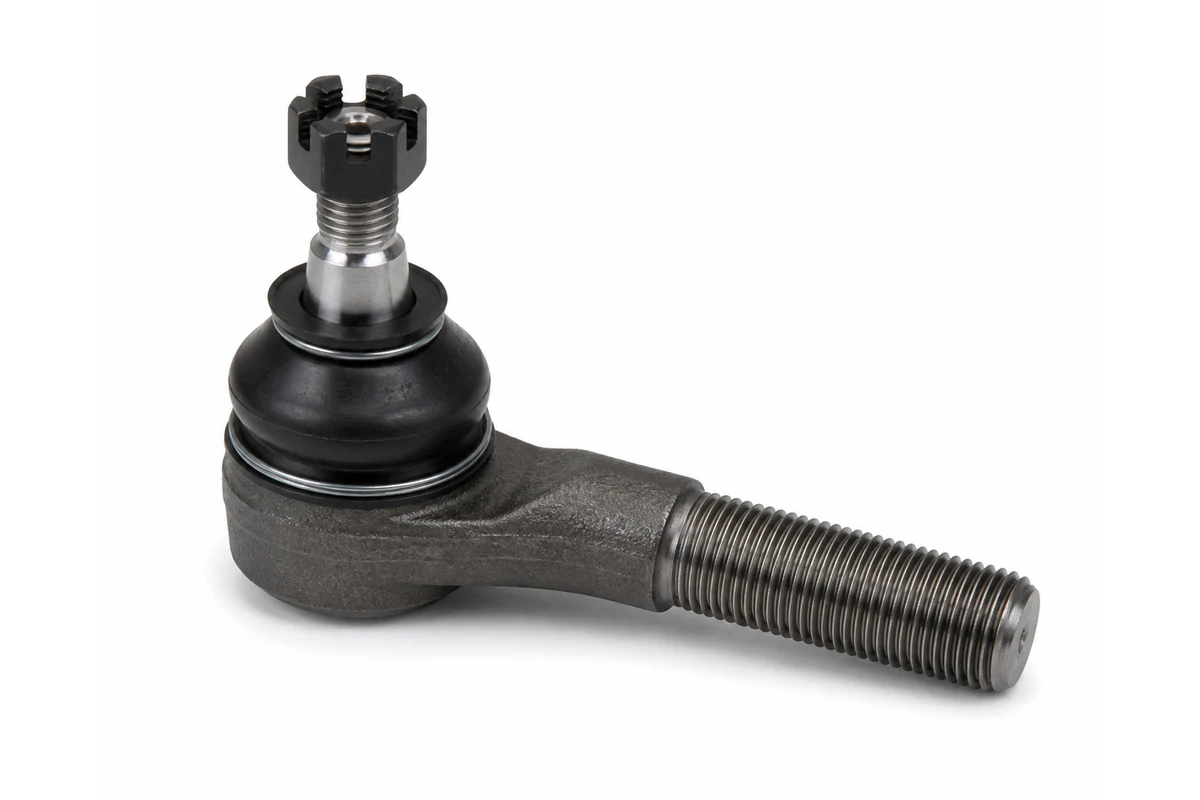

RAV4 Tie Rod EndInner/outer, left/right thread where relevant, taper, thread size, steering rack and LHD/RHD must match.
RAV4 Stabilizer LinkFront/rear, side where specified, length, ball-joint orientation and suspension package must match.
RAV4 Wheel Hub BearingFront/rear, driven/non-driven axle, spline, studs, flange and ABS encoder must match.
RAV4 CV AxleLeft/right, transmission, engine, ABS ring, spline counts, compressed length and FWD/AWD must match.
RAV4 Steering RackLHD/RHD, electric or hydraulic assist, connector/ECU scope, mounts and tie-rod interface must match.
RAV4 Engine MountEngine, hybrid/non-hybrid layout, mount position, hydraulic/solid type and bracket inclusion must match.
RAV4 Transmission MountManual, automatic, CVT and hybrid transaxles use different mounts; transmission code and bracket scope must match.
RAV4 Propeller ShaftAWD application only; generation, wheelbase, engine or hybrid system, flange pattern, length, support bearing and production revision must match.
RAV4 Rear Differential AssemblyMechanical AWD only; do not substitute for an electric rear drive unit. Confirm generation, driveline code, ratio, coupler, mounts, connectors and axle interfaces.Continue checking
