Send engine code, HEV/PHEV system, transmission or transaxle, drive type, production date and market rather than only displacement or the word hybrid.
RAV4 powertrain boundary

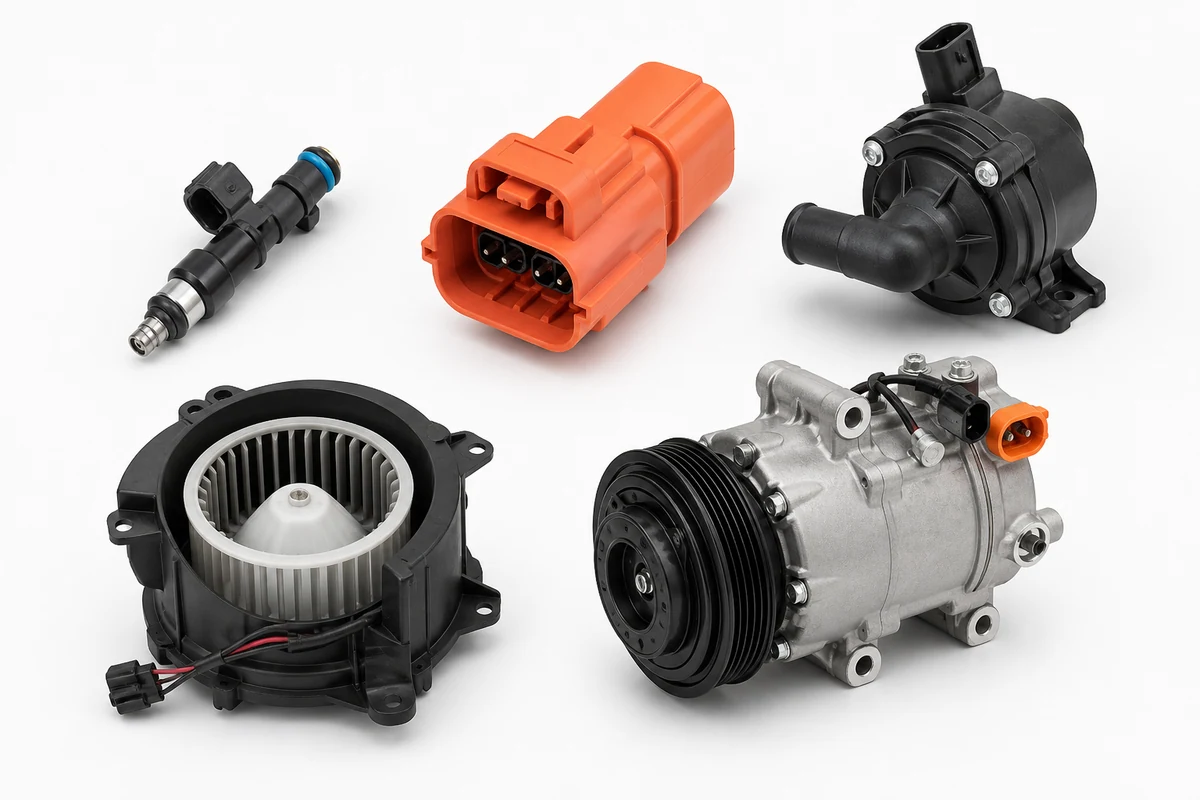

Toyota RAV4 Gasoline, Hybrid & PHEV Parts Guide
Separate gasoline, diesel where sold, hybrid and plug-in-hybrid RAV4 systems before ordering starting, charging, cooling, fuel, exhaust, braking or A/C components.
Decision workflow
Turn a broad RAV4 request into traceable inquiry lines.
Many hybrids do not use a conventional alternator or starter; electric A/C compressors, inverter pumps and traction-battery cooling components require exact electrified-system labels.
Plug-in-hybrid battery, charging, power-control and cooling hardware is not established from a RAV4 Hybrid name or an exterior photo.
Use readable labels and closed-assembly photos. Inspection and service of high-voltage systems require qualified personnel and approved safety procedures.
Evidence hierarchy
Use the strongest available evidence without forcing an OE number.
VIN/chassis context, generation, build date, market, grade, powertrain and drive layout define the application.
Use a reliable OE/reference when available; otherwise use labels, interfaces, position, dimensions and old-part photos.
Quantity, grade, sample status, packing, destination and approved alternatives define what is quoted.
Related RAV4 parts
Choose the product family after confirming the vehicle and system.
Related RAV4 parts
Maintenance, Service & Ignition
Fast-moving RAV4 filters, ignition and service parts separated by engine, hybrid system, market and generation.

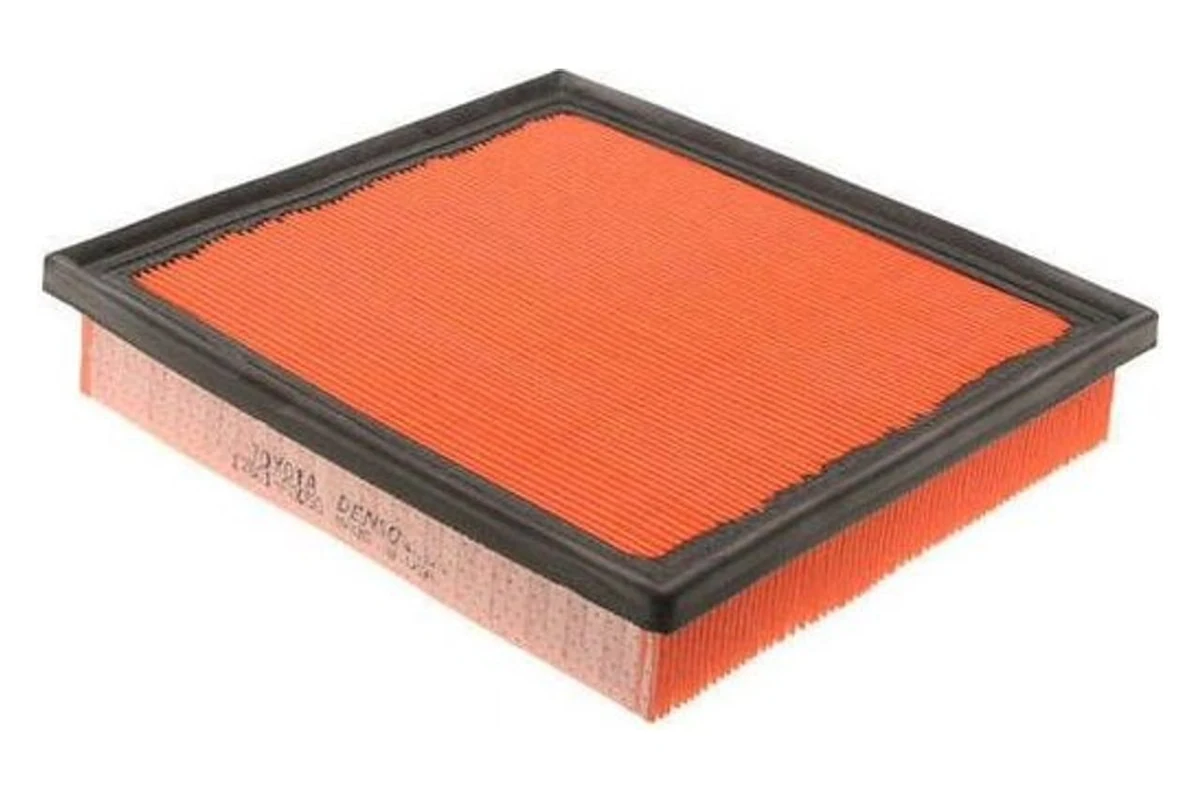

RAV4 Air FilterEngine family, air-box design, frame dimensions and seal must match.
RAV4 Cabin Air FilterFilter dimensions, airflow direction and paper or activated-carbon grade must match.
RAV4 Oil FilterEngine, filter style, thread or cartridge size, bypass specification and gasket must match.
RAV4 Transmission FilterExact transmission code, internal/external position, pan shape and gasket scope must match; manual and e-CVT applications differ.
RAV4 Spark PlugsEngine code, heat range, thread, reach, electrode type and gap must match; diesel applications do not use spark plugs.
RAV4 Ignition CoilEngine family, connector, coil body, boot length and production date must match; diesel applications are excluded.
RAV4 Drive BeltEngine, belt route, rib count and effective length must match; hybrid layouts may use fewer belt-driven accessories.
RAV4 Belt TensionerEngine, mounting pattern, pulley diameter, belt route and assembly scope must match.
RAV4 Wiper BladesDriver/passenger position, blade lengths, connector type, beam/conventional design and LHD/RHD wiping layout must match.Related RAV4 parts
Brake System
RAV4 brake components checked by axle, brake package, parking-brake design, drivetrain and vehicle weight.

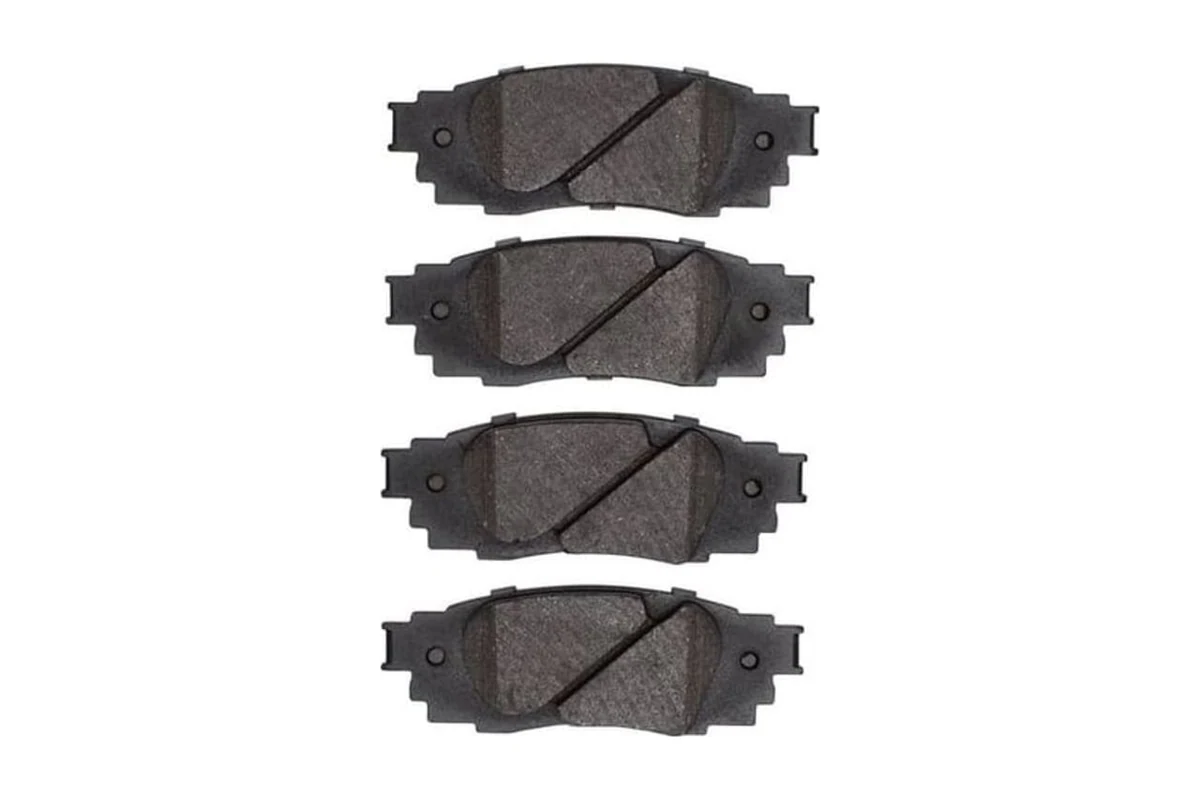

RAV4 Brake PadsAxle, pad outline, clips, wear provision, caliper and brake package must match.
RAV4 Brake DiscsFront/rear, diameter, thickness, hub height, bolt pattern and wheel/brake package must match.
RAV4 Brake CaliperAxle, left/right side, piston, bracket, hose port and parking-brake mechanism must match.
RAV4 Brake Master CylinderABS/VSC system, bore, ports, reservoir, booster interface and LHD/RHD application must match.
RAV4 Brake BoosterGasoline, diesel and hybrid brake-assist systems, LHD/RHD, mounting and master-cylinder interface must be separated.
RAV4 Brake HoseFront/rear, side, length, end fittings, brackets and production revision must match.
RAV4 ABS Wheel Speed SensorFront/rear, left/right, connector, lead length, mounting and encoder compatibility must match.
RAV4 Parking Brake ShoesGeneration, rear rotor hat diameter, shoe width, hardware and mechanical or electronic parking-brake layout must match; not every RAV4 uses this design.
RAV4 Brake Light SwitchConnector, pin count, mount, adjustment method, cruise/VSC integration and production revision must match.Related RAV4 parts
Engine, Hybrid, Cooling, Fuel, Electrical & A/C
RAV4 gasoline, diesel where sold, HEV and PHEV systems kept separate across powertrain, cooling and climate-control requests.

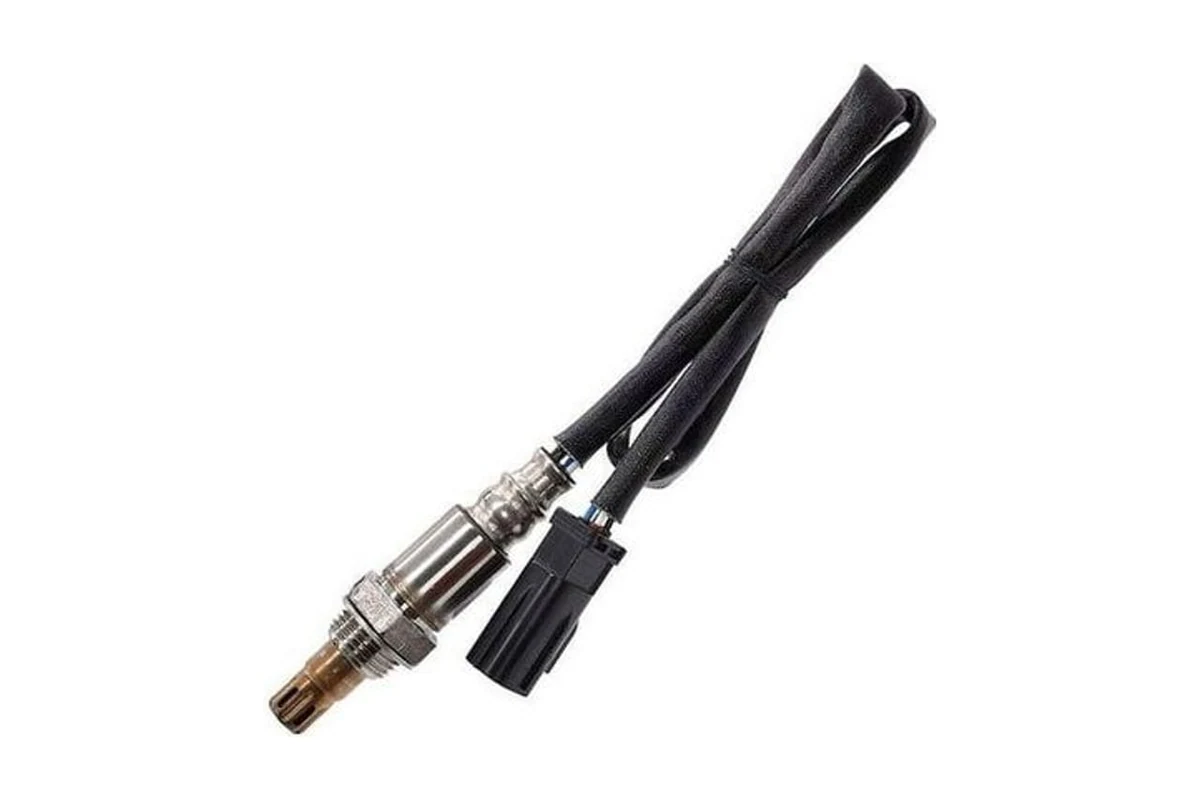

RAV4 Oxygen SensorUpstream/downstream, engine, emission market, connector, wire count and length must match; pure EV applications are excluded.
RAV4 Mass Air Flow SensorEngine, sensor/housing scope, connector, calibration and production market must match.
RAV4 Crankshaft Position SensorEngine code, sensor position, connector, lead, mounting and target-wheel system must match.
RAV4 Camshaft Position SensorEngine, intake/exhaust or bank position, connector, mounting and production revision must match.
RAV4 Fuel PumpPetrol and diesel systems differ; engine, pump/module scope, pressure, flange, sender and connector must match.
RAV4 Fuel InjectorPetrol port/direct injection and diesel injectors are different; engine, flow/calibration, connector and seal kit must match.
RAV4 Throttle BodyEngine, bore, connector, coolant ports, calibration and included sensor/motor scope must match.
RAV4 Water PumpMechanical and electric pumps, engine and hybrid cooling circuits, housing, ports, drive and connector must match.
RAV4 RadiatorCore size, tank and hose layout, transmission cooler, filler neck, fan mounts and hybrid context must match.
RAV4 ThermostatEngine, opening temperature, housing/inserts, seal, ports and hybrid cooling circuit must match.
RAV4 Radiator Cooling FanEngine/hybrid system, fan count, shroud, connector, control module and radiator/condenser layout must match.
RAV4 AlternatorNon-hybrid application, engine, output, pulley, smart-charge control, plug and mounts must match; many hybrids do not use a conventional alternator.
RAV4 Starter MotorNon-hybrid application, engine, transmission, output, pinion, terminals and mounting must match; many hybrids do not use a conventional starter.
RAV4 A/C CompressorICE and hybrid compressor designs, refrigerant/oil, voltage, pulley or connector, ports and mounts must match.
RAV4 A/C CondenserRefrigerant, dimensions, ports, receiver-drier, brackets and model-year front-end layout must match.
RAV4 Blower MotorLHD/RHD HVAC case, connector, rotation, fan diameter, resistor/controller and production revision must match.
RAV4 Catalytic ConverterEngine, exhaust position, emission market, sensor ports, flange layout and legal import requirements must match; hybrid engine applications still require exact checks.
RAV4 EGR ValveOnly engines equipped with EGR; engine, emission market, valve/cooler scope, connector and ports must match.
RAV4 Inverter Coolant PumpElectrified application only; generation, HEV/PHEV system, pump label, connector, ports, mounting and production date must match.

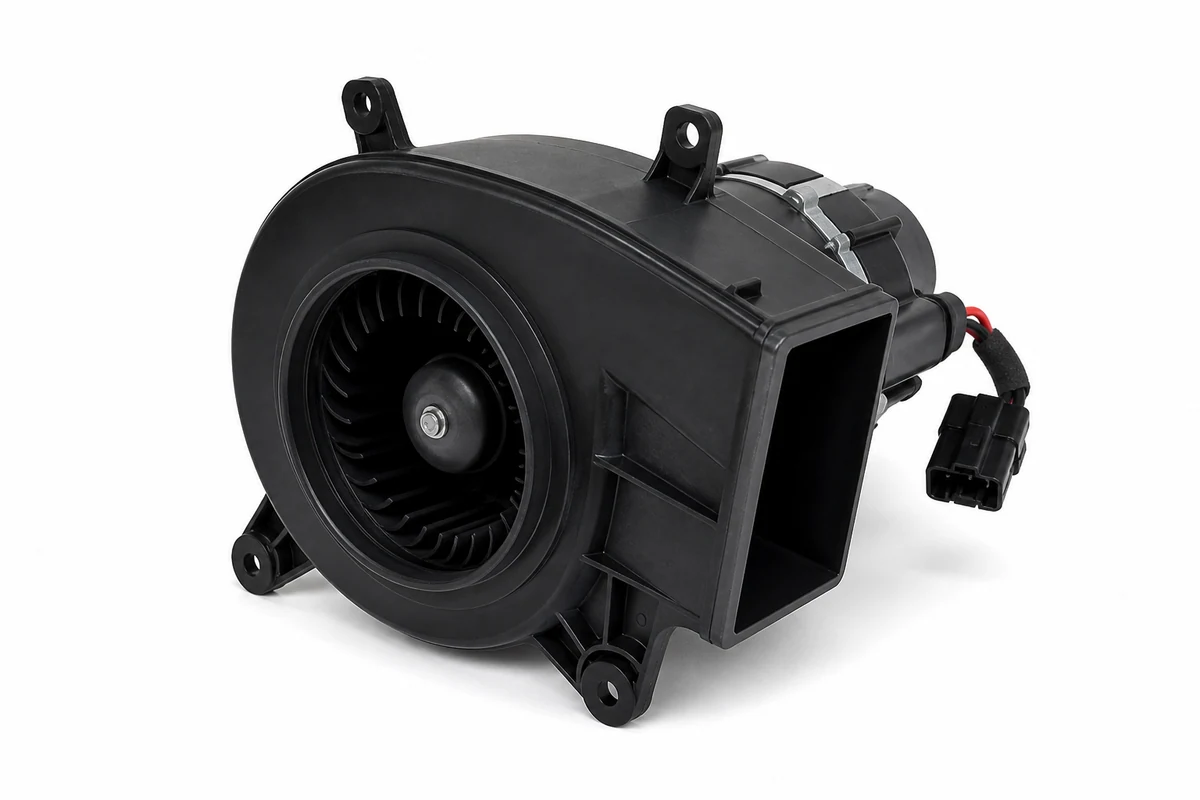

RAV4 Hybrid Battery Cooling FanHEV/PHEV application only; generation, battery system, body/market, connector, duct interface, controller scope and production revision must match.Continue checking
Other RAV4 decision guides.
All Toyota RAV4 PartsCompare all 65 RAV4 part requirements by system.Toyota RAV4 Generations, Chassis & Market GuideSeparate early XA families, the fifth-generation XA50 and the all-new sixth-generation RAV4, together with production date, grade and regional equipment before building a parts list.Toyota RAV4 FWD, AWD & E-Four Driveline GuideIdentify FWD, mechanical AWD and electric-rear-drive E-Four layouts before ordering axles, hubs, propeller shafts, rear driveline, springs, dampers or mounts.Toyota RAV4 Body, Lighting, ADAS & Liftgate GuideIdentify RAV4 lamps, bumpers, grilles, panels, wheel-arch cladding and liftgate parts by generation, facelift, grade, side, beam market and installed ADAS equipment.
Auto parts inquiry
Send the vehicle and part evidence.
Include brand, full model, year, engine or EV drivetrain, OE/material code, quantity, destination and packing request. You can attach a list or old-part photos.
