Use VIN/chassis context and build date instead of model year alone; front ends, lamps, electronics and mechanical systems can change at a generation or running revision.
RAV4 vehicle identity

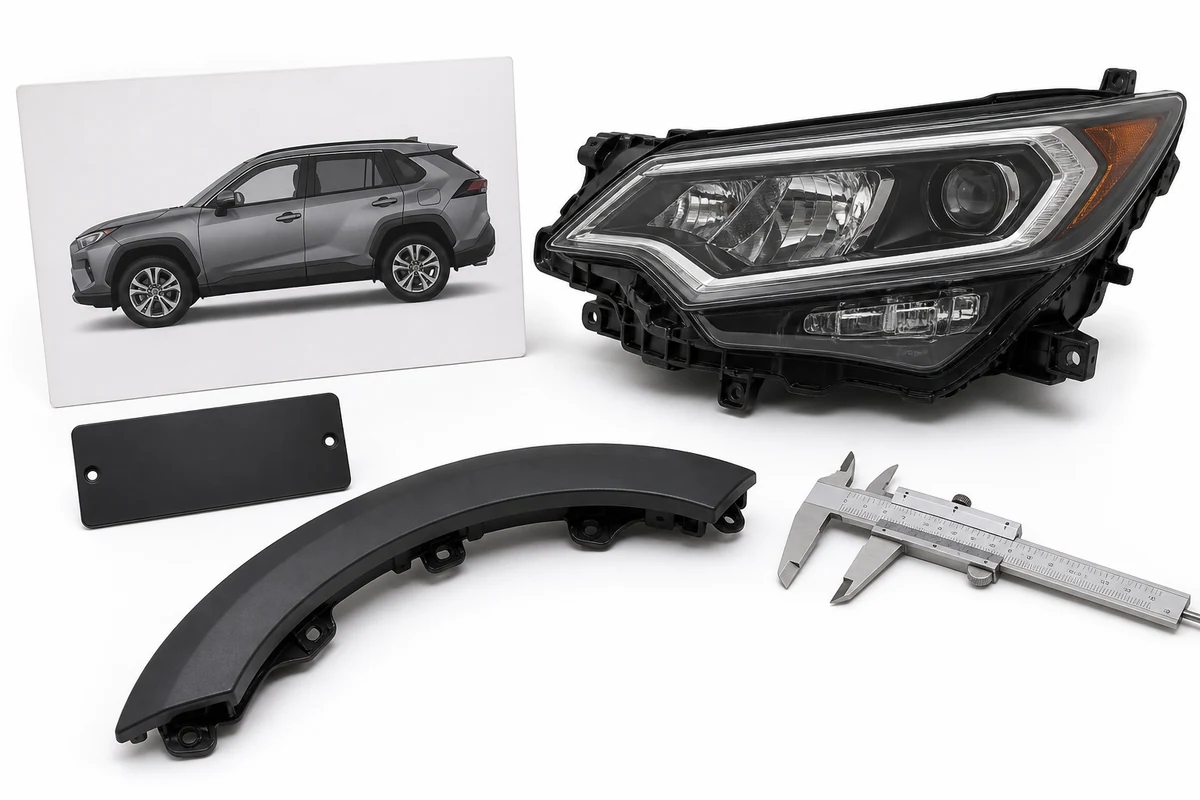

Toyota RAV4 Generations, Chassis & Market Guide
Separate early XA families, the fifth-generation XA50 and the all-new sixth-generation RAV4, together with production date, grade and regional equipment before building a parts list.
Decision workflow
Turn a broad RAV4 request into traceable inquiry lines.
North American, European, Japanese, Middle Eastern, Asian and other export versions can differ in engines, emissions, lighting, bumpers, ADAS and available drivetrains.
Add standard, Adventure, Woodland, GR SPORT or other market grade where relevant, plus roof, wheel-arch, liftgate, camera and radar equipment.
Keep vehicle identity, position, available OE/reference or old-part label, photos, quantity and buyer item code on the same inquiry line.
Evidence hierarchy
Use the strongest available evidence without forcing an OE number.
VIN/chassis context, generation, build date, market, grade, powertrain and drive layout define the application.
Use a reliable OE/reference when available; otherwise use labels, interfaces, position, dimensions and old-part photos.
Quantity, grade, sample status, packing, destination and approved alternatives define what is quoted.
Related RAV4 parts
Choose the product family after confirming the vehicle and system.
Related RAV4 parts
Suspension, Steering, AWD & Driveline
RAV4 chassis and AWD parts matched by generation, axle, side, FWD/AWD/E-Four layout and suspension package.

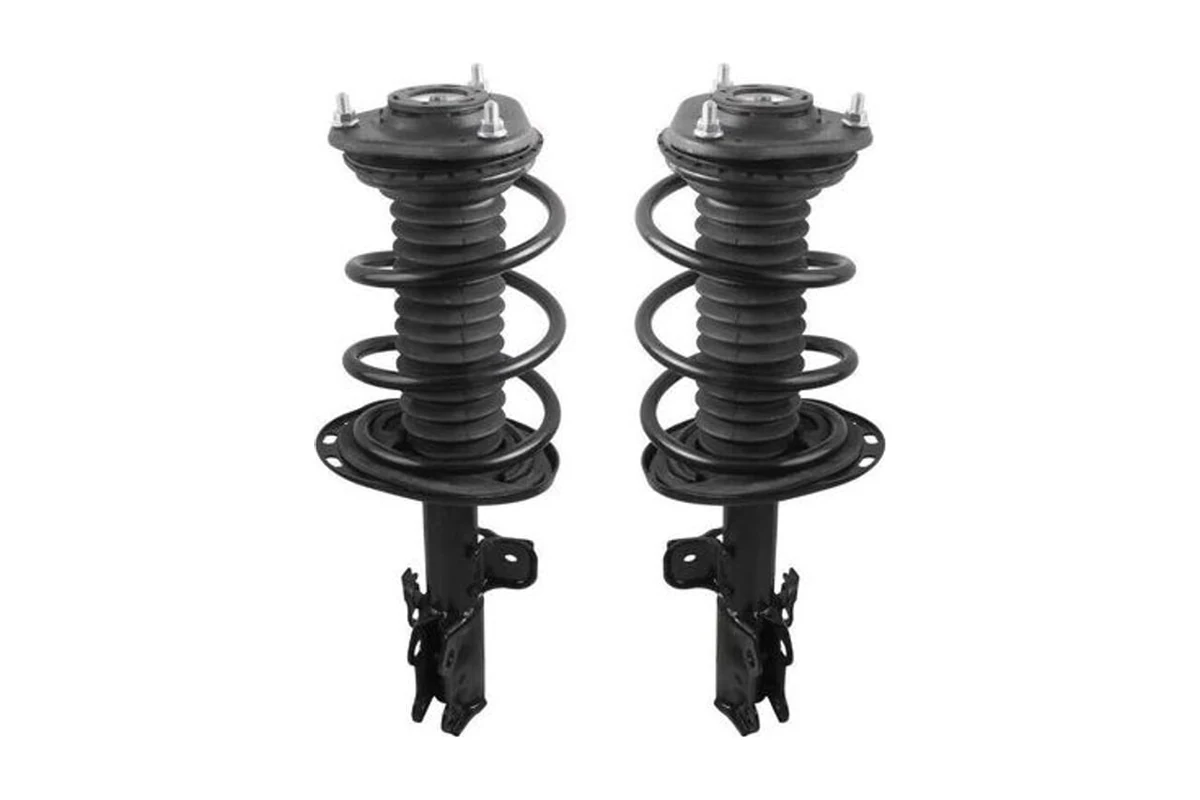

RAV4 Shock AbsorberFront/rear, left/right where applicable, body/drivetrain, mounting and suspension package must match.
RAV4 Strut MountFront/rear, side, bearing inclusion, bolt pattern and suspension package must match.
RAV4 Coil SpringFront/rear, engine or hybrid weight, body style, trim, wire diameter and free length must match.
RAV4 Control ArmFront/rear, left/right, upper/lower, bushing and ball-joint inclusion and mounting dimensions must match.
RAV4 Ball JointPosition, taper, stud size, mounting pattern and control-arm or knuckle application must match.
RAV4 Tie Rod EndInner/outer, left/right thread where relevant, taper, thread size, steering rack and LHD/RHD must match.
RAV4 Stabilizer LinkFront/rear, side where specified, length, ball-joint orientation and suspension package must match.
RAV4 Wheel Hub BearingFront/rear, driven/non-driven axle, spline, studs, flange and ABS encoder must match.
RAV4 CV AxleLeft/right, transmission, engine, ABS ring, spline counts, compressed length and FWD/AWD must match.
RAV4 Steering RackLHD/RHD, electric or hydraulic assist, connector/ECU scope, mounts and tie-rod interface must match.
RAV4 Engine MountEngine, hybrid/non-hybrid layout, mount position, hydraulic/solid type and bracket inclusion must match.
RAV4 Transmission MountManual, automatic, CVT and hybrid transaxles use different mounts; transmission code and bracket scope must match.
RAV4 Propeller ShaftAWD application only; generation, wheelbase, engine or hybrid system, flange pattern, length, support bearing and production revision must match.
RAV4 Rear Differential AssemblyMechanical AWD only; do not substitute for an electric rear drive unit. Confirm generation, driveline code, ratio, coupler, mounts, connectors and axle interfaces.Related RAV4 parts
Body, Lighting, Liftgate & Collision
RAV4 SUV exterior parts checked by generation, facelift, grade, side, lamp technology, ADAS equipment and body cladding.

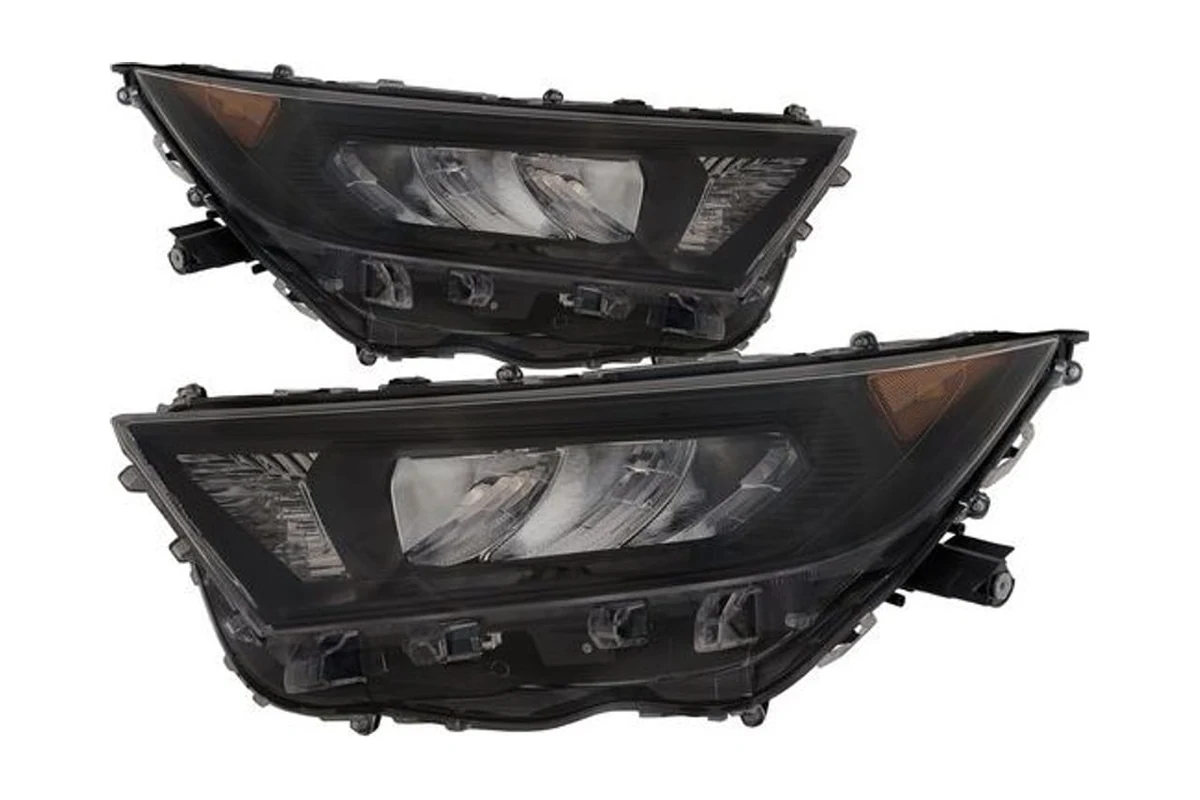

RAV4 HeadlightsLeft/right, LHD/RHD beam pattern, halogen/LED/projector, modules, connector, facelift and trim must match.
RAV4 Tail LightsSedan/hatchback/wagon, inner/outer, left/right, LED/bulb, connector, facelift and market must match.
RAV4 Fog LightsLeft/right, lamp technology, bezel/bracket, connector, bumper version and trim must match.

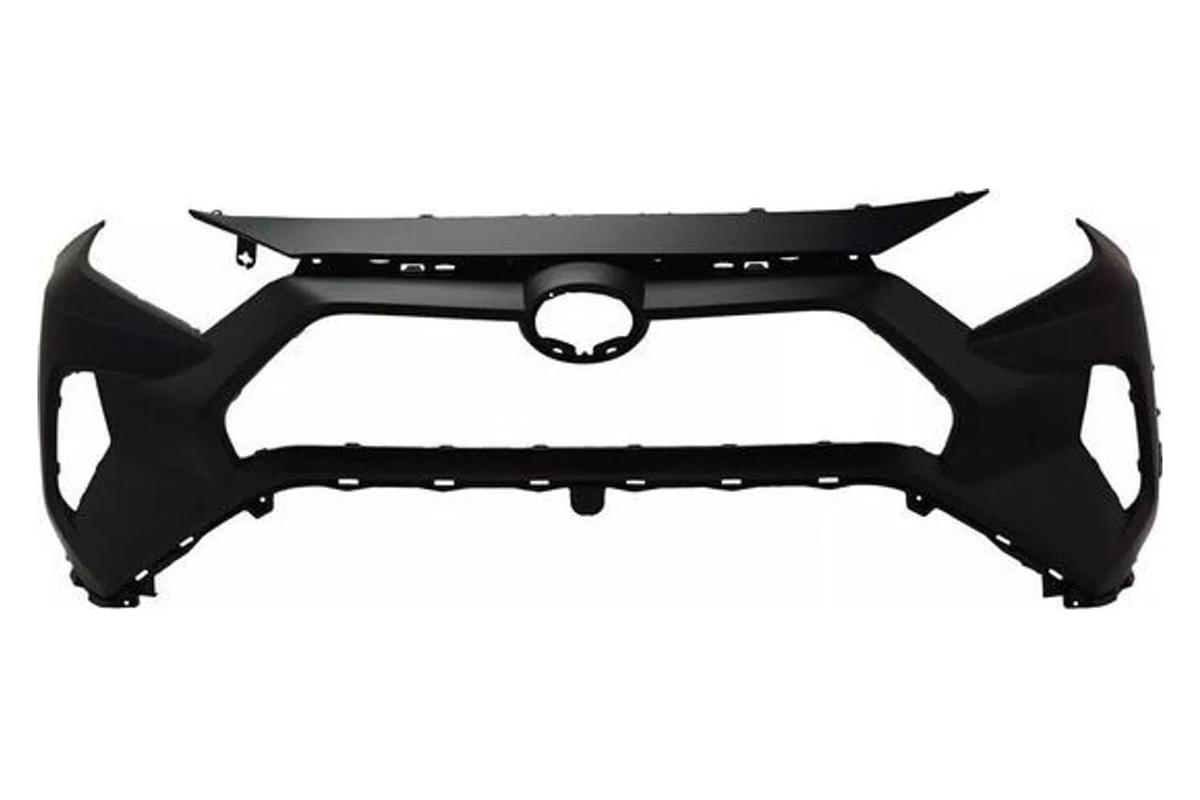

RAV4 Front BumperBody/facelift, fog lamps, parking sensors, radar/camera, grille/brackets and packing scope must match.
RAV4 Rear BumperSedan/hatchback/wagon, facelift, sensors, reflector/trim openings, lower valance and packing scope must match.
RAV4 Front GrilleFacelift, trim, radar emblem or camera provision, bumper interface, finish and included mouldings must match.
RAV4 Side MirrorLeft/right, LHD/RHD viewing angle, connector, power fold, heating, indicator, camera and glass type must match.
RAV4 FenderLeft/right, body style, facelift, side-marker or trim holes, material and packing method must match.
RAV4 HoodGeneration, facelift, latch/hinge position, insulation or washer provision, material and packing method must match.
RAV4 Window RegulatorFront/rear door, left/right, body style, motor inclusion, connector and LHD/RHD switch/control context must match.
RAV4 LiftgateGeneration, facelift, market, power/manual liftgate, camera/emblem provision, lamp or garnish interfaces, hinges and packing method must match.
RAV4 Liftgate Support StrutsManual gas struts and powered spindle drives are not interchangeable; confirm generation, left/right side, length, force rating, connector and bracket ends.
RAV4 Wheel Arch MouldingFront/rear, left/right, generation, facelift, Adventure/Woodland/GR or standard body package, clips, finish and adjoining rocker/bumper interfaces must match.Continue checking
Other RAV4 decision guides.
All Toyota RAV4 PartsCompare all 65 RAV4 part requirements by system.Toyota RAV4 Gasoline, Hybrid & PHEV Parts GuideSeparate gasoline, diesel where sold, hybrid and plug-in-hybrid RAV4 systems before ordering starting, charging, cooling, fuel, exhaust, braking or A/C components.Toyota RAV4 FWD, AWD & E-Four Driveline GuideIdentify FWD, mechanical AWD and electric-rear-drive E-Four layouts before ordering axles, hubs, propeller shafts, rear driveline, springs, dampers or mounts.Toyota RAV4 Body, Lighting, ADAS & Liftgate GuideIdentify RAV4 lamps, bumpers, grilles, panels, wheel-arch cladding and liftgate parts by generation, facelift, grade, side, beam market and installed ADAS equipment.
Auto parts inquiry
Send the vehicle and part evidence.
Include brand, full model, year, engine or EV drivetrain, OE/material code, quantity, destination and packing request. You can attach a list or old-part photos.
