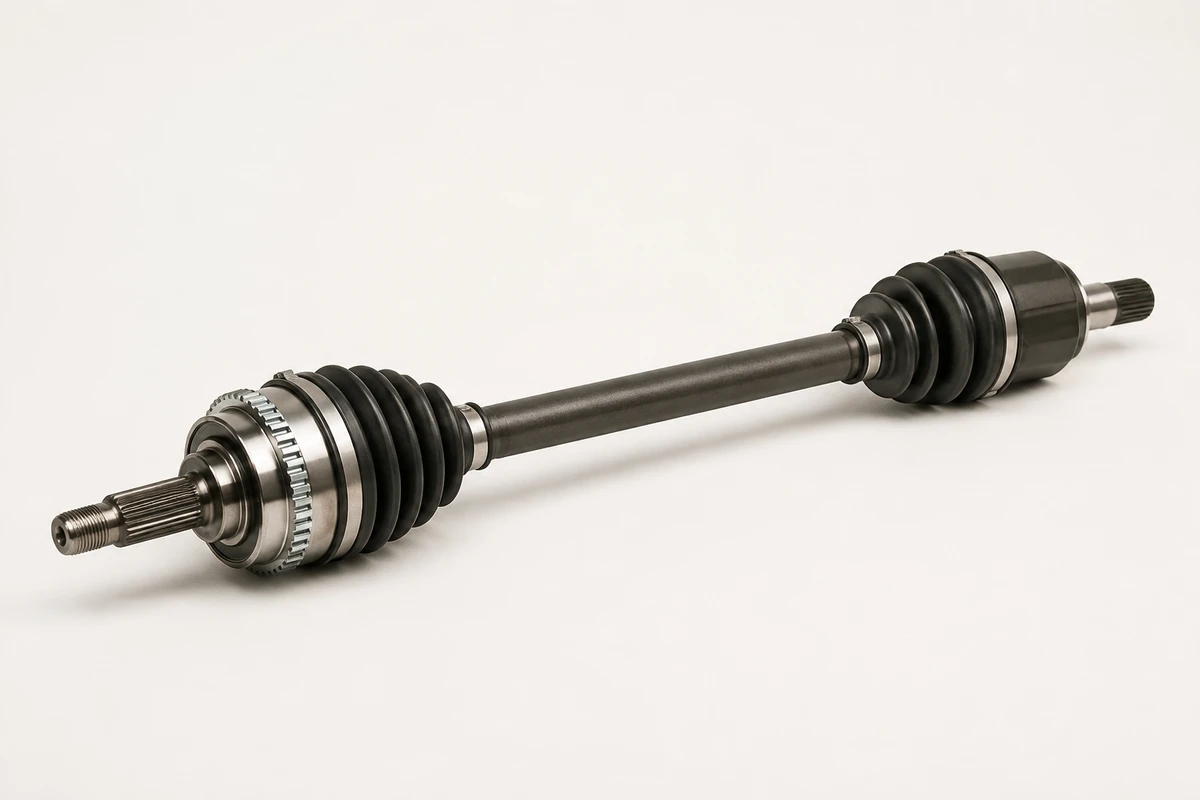

Hyundai Tucson CV Axle Wholesale

Manual, automatic and DCT shafts can differ in length, splines and intermediate support; identify side, drivetrain and gearbox.

For this CV axle, keep JM/LM/TL/NX4 generation, production date, engine or electrified powertrain, transmission and sales market on the same record. The Tucson generation and market guide explains why a regional name alone is insufficient.

When this component is part of a mixed system order, use the brake, suspension, steering & awd to separate neighboring assemblies.

Send overall and mounting or connection photographs. For the CV axle, retain inner flange or spline and compressed length and outer spline; mark unknown values instead of borrowing a number from another generation. Use the OE and vehicle-identification checklist to organize the evidence.

Give every linked assembly its own specification; approving the CV axle does not confirm the surrounding parts.

Tucson Wheel Hub / Bearing — Pressed bearings and bolt-on hubs, plus encoder orientation, must not be merged under one wheel pattern. Confirm axle and hub or pressed-bearing format and ABS encoder and wheel studs on its own order line.

Tucson Axle Shaft — Front and rear shafts, left and right positions, spline counts and intermediate supports must remain separate. Confirm rigid axle position and side and spline and flange arrangement on its own order line.

Tucson Propeller Shaft — Length, flange pattern, support bearing and joint arrangement follow wheelbase, transmission and AWD system. Confirm front or rear and wheelbase and flange pilot diameter and bolt pattern on its own order line.

Tucson Stabilizer Link — Center length alone does not confirm stud angle or suspension clearance. Confirm axle and roll-control layout and link centers and end type on its own order line.

Tucson Steering Rack — LHD and RHD racks and electric versus hydraulic systems are not interchangeable by housing length. Confirm LHD/RHD and assist system and mounting, input shaft and ratio on its own order line.

Tucson Engine Mount — Position and bracket geometry matter; a transmission-side support is not an engine-mount substitute. Confirm engine code and mount position and bracket and stud pattern on its own order line.

Before approving the CV axle, agree sample and inspection requirements using the quality-control checklist. Return to the Tucson parts directory for other systems.

For CV axle requirements on other vehicles, compare the wheel hub and bearing directory. Keep the Tucson specification and every other approved model on separate order lines.
