MG4 battery-electric hatchbacks • MSP, XPOWER and Urban identified separately
MG4 Brakes, Suspension & Driven-Axle Parts
Compare MG4 friction brakes, suspension, steering and driven axles. Retain XPOWER tuning, Urban rear-beam geometry and exact wheel-corner interfaces.
Match the friction brake package, not wheel diameter
Regeneration does not remove pads and discs or identify their dimensions. Keep axle, pad outline, disc construction, caliper carrier and parking mechanism together. Urban brake dimensions vary by version, while XPOWER performance equipment requires its own acceptance record.
Separate the damper, spring and upper support
A bare front strut, complete spring-equipped unit and rear damper have different contents. Retain original axle load, chassis tune, body mounts and spring seats. A battery-size sales badge or similar ride height cannot approve an ordinary RWD damping specification for XPOWER or Urban.
Trace the actual rear suspension architecture
An MSP rear multi-link arrangement needs its separate links, upright and carrier records. Urban rear beam inquiries instead retain pivot bushes, spring seats and wheel-end plates. Do not substitute one architecture for another because the wheel hub or damper looks familiar.
Keep every driven corner with its own unit
Identify MSP rear-drive halfshafts, XPOWER front and rear shafts and Urban front shafts individually. Compressed length, joint format, splines and seal lands remain component-level checks. Wheel-speed encoders and bearing seats must follow the accepted knuckle and hub, not just the driven-wheel label.
Preserve steering and assistance interfaces
Keep LHD/RHD rack identity with thread, taper and body mounts. A tie rod, anti-roll link and ball joint have different jobs and cannot be ordered from one generic suspension description. Integrated electronic brake control and assistance modules are outside ordinary hose, caliper and linkage supply.
Related assembly decisions

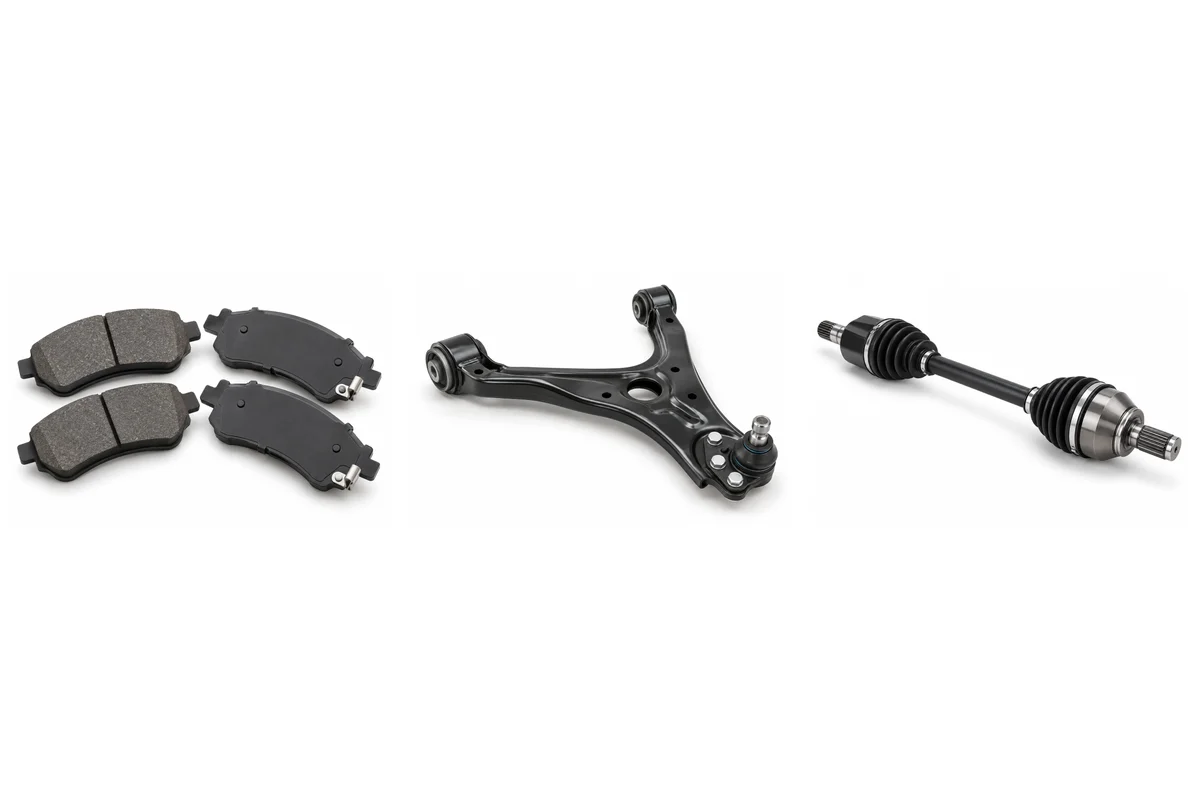

Match brake pads to the installed brake caliper and brake discs as one accepted friction package.
A shared wheel diameter does not approve XPOWER or Urban braking dimensions.
Keep the brake hose inlet and side with the brake caliper.
For an EPB rear corner, specify whether the parking brake actuator is part of the caliper supply or a separate motor-only request.
The ABS wheel speed sensor reads the encoder at the wheel hub / bearing; the radio TPMS sensor reports tyre pressure instead.
Retain their different signal and installation records when preparing wheel-end quantities.
A bare shock absorber / strut does not include the coil spring or strut mount automatically.
Compare spring seats, upper bearing and original axle load before agreeing a complete strut package.
Assemblies to identify separately
| Assembly | Application boundary | Selection record |
|---|---|---|
| Brake Pads | Exact MSP RWD, XPOWER or Urban assembly identity, chassis/circuit and installed interfaces; no automatic cross-platform interchange | Axle, backing plate, caliper, shims and friction grade |
| Brake Discs | Exact MSP RWD, XPOWER or Urban assembly identity, chassis/circuit and installed interfaces; no automatic cross-platform interchange | Diameter, thickness, hat height, centre bore and venting |
| Brake Caliper | Exact MSP RWD, XPOWER or Urban assembly identity, chassis/circuit and installed interfaces; no automatic cross-platform interchange | Casting, carrier, piston, fluid port and actuator interface |
| Brake Hose | Exact MSP RWD, XPOWER or Urban assembly identity, chassis/circuit and installed interfaces; no automatic cross-platform interchange | Union threads, fitting angles, brackets and routed length |
| ABS Wheel Speed Sensor | Exact MSP RWD, XPOWER or Urban assembly identity, chassis/circuit and installed interfaces; no automatic cross-platform interchange | Corner, full marking, socket, lead route and pickup depth |
| TPMS Sensor | Exact MSP RWD, XPOWER or Urban assembly identity, chassis/circuit and installed interfaces; no automatic cross-platform interchange | Sensor label, frequency, protocol, valve and wheel seat |
| Parking Brake Actuator | Confirmed motor-on-caliper EPB only; identify exact caliper interface and supplied contents | Caliper label, output drive, socket and fastening |
| Shock Absorber / Strut | Exact MSP RWD, XPOWER or Urban assembly identity, chassis/circuit and installed interfaces; no automatic cross-platform interchange | Side, mounting, spring seat, stroke and load specification |
| Strut Mount | Exact MSP RWD, XPOWER or Urban assembly identity, chassis/circuit and installed interfaces; no automatic cross-platform interchange | Stud pattern, central sleeve, bearing and spring seat |
| Coil Spring | Exact MSP RWD, XPOWER or Urban assembly identity, chassis/circuit and installed interfaces; no automatic cross-platform interchange | Spring marking, ends, dimensions and vehicle load record |
| Control Arm | MSP front/rear links identified separately; Urban front arms are not MSP rear links or the Urban rear beam | Axle/side, mounting centres, bushes and joint contents |
| Ball Joint | Exact MSP RWD, XPOWER or Urban assembly identity, chassis/circuit and installed interfaces; no automatic cross-platform interchange | Arm retention, stud taper, mounting and fixing |
| Tie Rod End | Exact MSP RWD, XPOWER or Urban assembly identity, chassis/circuit and installed interfaces; no automatic cross-platform interchange | Rack marking, thread, offset, adjustment and taper |
| Stabilizer Link | Exact MSP RWD, XPOWER or Urban assembly identity, chassis/circuit and installed interfaces; no automatic cross-platform interchange | Joint-centre length, stud angle and motion clearance |
| Wheel Hub / Bearing | Exact MSP RWD, XPOWER or Urban assembly identity, chassis/circuit and installed interfaces; no automatic cross-platform interchange | Flange, bearing contents, spline and ABS encoder |
| CV Axle / Drive Shaft | Rear driven shafts on MSP RWD; front and rear records on XPOWER AWD; front driven shafts on Urban FWD | Side, spline, working length, joints and seal land |
| Steering Rack | Exact MSP RWD, XPOWER or Urban assembly identity, chassis/circuit and installed interfaces; no automatic cross-platform interchange | Rack label, mounting, ratio, joints and interfaces |
| Subframe | Ordinary front or rear chassis carrier, not an HV battery enclosure or structural crash assembly | Axle, build, suspension pickups and drivetrain interfaces |
| Steering Knuckle | Exact MSP RWD, XPOWER or Urban assembly identity, chassis/circuit and installed interfaces; no automatic cross-platform interchange | Corner, bearing format, strut, arm and brake mounts |
| Drive-Unit Mount | Ordinary external mount only, with exact electric drive-unit position; traction motor and reduction-drive internals excluded | Installed front or rear electric drive unit, mount position, brackets and isolator |
| Stabilizer / Anti-Roll Bar | Actual fitted axle and chassis tune only; XPOWER performance specification is not approved by an ordinary RWD bar | Axle, bar diameter, bend, link seats, bushes and chassis package |
| Rear Torsion Beam | Confirmed E3 Urban rear torsion-beam installation only; MSP RWD and XPOWER multi-link rear suspension excluded | Confirmed Urban E3 rear beam, pivot bushes, spring seats and wheel-end plates |
Continue the identified order
Use the MG4 system directory for the remaining assemblies and the parts-list quotation guide for quantities and destination. Keep the platform and drive record with each component.
