MG5 parts • petrol sedan, turbo and Electric estate identified separately

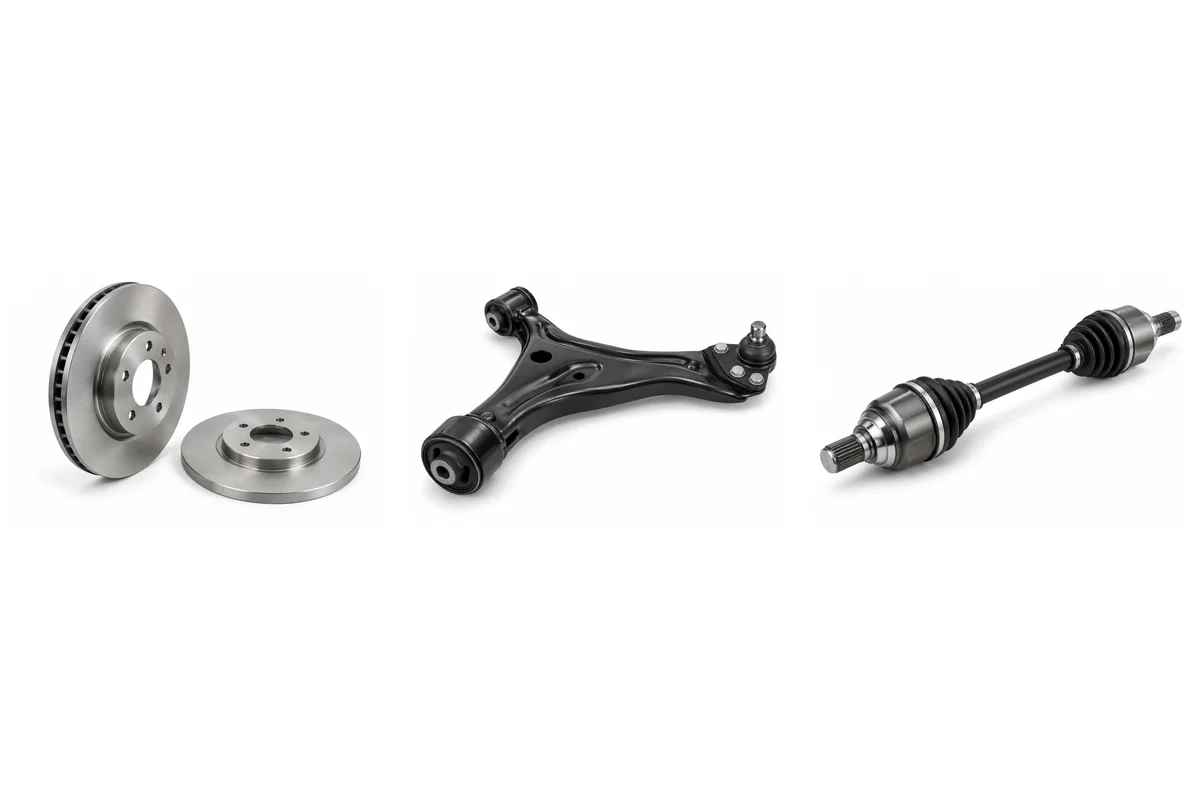

MG5 Brakes, Suspension & Front-Drive Parts
Compare MG5 brakes, suspension, steering and front-drive assemblies. Retain body, wheel-corner, assistance and fitted parking-brake records.
Treat each friction brake package as one wheel-corner record
Keep pads, discs, caliper carrier and parking mechanism together when identifying a corner. Wheel diameter does not choose pad outline or rotor offset. Electric regeneration does not identify a friction compound, and a petrol sedan reference cannot approve an estate wheel end without its own installed dimensions and marking.
Identify assistance and parking mechanisms separately
A vacuum booster, external vacuum pump and integrated electronic brake controller have different supply boundaries. Confirm the actual assistance installation before comparing a master cylinder or servo. For parking brakes, establish cable or motor-on-caliper equipment instead of selecting an EPB actuator from the presence of a dashboard button.
Keep body load and spring seats with the damper
Compare axle load, spring grade, strut seat and upper mount as one accepted suspension package. A bare damper does not contain its spring or bearing automatically. Petrol sedan and Electric estate bodies can place different loads on similar-looking components, so retain exact body and corner records rather than using ride height as approval.
Compare front-driven interfaces, not an assumed AWD system
The identified sedan and estate requests use front driven-wheel records. Keep gearbox or drive-unit output, inner joints, splines and seal lands with each shaft. Rear suspension and wheel bearings do not create a rear differential, transfer unit or longitudinal propeller shaft. A similar joint photograph cannot choose the correct driven axle.
Check the actual beam and anti-roll equipment
A torsion beam and complete chassis carrier are distinct assemblies. Preserve body pivots, spring seats, hub plates and brake brackets before agreeing an equipped rear unit. A beam-type rear suspension does not automatically have a separate serviceable stabilizer bar or drop links; identify fitted equipment before adding quantities.
Related assembly decisions
Match brake pads to the installed brake caliper and brake discs as one friction package.
Wheel size and a shared MG5 name do not establish pad outline, disc offset or carrier clearance.
Identify the fitted assistance architecture before combining a brake master cylinder, brake booster or external brake vacuum pump.
A conventional vacuum-servo record does not approve an integrated electronic brake unit.
Keep the brake hose connection and corner with the brake caliper.
Add a parking brake actuator only where the identified rear caliper actually uses a separately supplied EPB motor.
The ABS wheel speed sensor reads the installed wheel hub / bearing encoder, while the radio TPMS sensor measures tyre pressure.
Their signals, seats and identification records are different despite both appearing in a wheel-corner list.
Assemblies to identify separately
| Assembly | Application boundary | Selection record |
|---|---|---|
| Brake Pads | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Axle, backing plate, caliper, shims and friction grade |
| Brake Discs | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Diameter, thickness, hat height, centre bore and venting |
| Brake Caliper | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Casting, carrier, piston, fluid port and actuator interface |
| Brake Master Cylinder | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Cylinder label, bore, ports, mounting and reservoir seat |
| Brake Booster | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Assist type, label, stud spacing and pushrod interface |
| Brake Hose | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Union threads, fitting angles, brackets and routed length |
| ABS Wheel Speed Sensor | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Corner, full marking, socket, lead route and pickup depth |
| TPMS Sensor | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Sensor label, frequency, protocol, valve and wheel seat |
| Parking Brake Actuator | Confirmed motor-on-caliper EPB only; cable parking brakes and control modules are different requests | Caliper label, output drive, socket and fastening |
| Shock Absorber / Strut | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Side, mounting, spring seat, stroke and load specification |
| Strut Mount | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Stud pattern, central sleeve, bearing and spring seat |
| Coil Spring | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Spring marking, ends, dimensions and vehicle load record |
| Control Arm | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Axle/side, mounting centres, bushes and joint contents |
| Ball Joint | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Arm retention, stud taper, mounting and fixing |
| Tie Rod End | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Rack marking, thread, offset, adjustment and taper |
| Stabilizer Link | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Joint-centre length, stud angle and motion clearance |
| Wheel Hub / Bearing | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Flange, bearing contents, spline and ABS encoder |
| CV Axle / Drive Shaft | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Side, spline, working length, joints and seal land |
| Steering Rack | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Rack label, mounting, ratio, joints and interfaces |
| Engine Mount | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Engine label, bracket, position and mount design |
| Transmission Mount | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Gearbox label, body pickups, bracket and isolator |
| Subframe | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Axle, build, suspension pickups and drivetrain interfaces |
| Steering Knuckle | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Corner, bearing format, strut, arm and brake mounts |
| Brake Vacuum Pump | Only a separately identified mechanical or low-voltage brake-vacuum pump where fitted; integrated assistance modules excluded | Vacuum source, drive type, ports, mounting and electrical socket |
| Drive-Unit Mount | External Electric estate drive-unit isolator/bracket only; no traction unit, inverter or reduction-drive internals | Installed front or rear electric drive unit, mount position, brackets and isolator |
| Stabilizer / Anti-Roll Bar | Exact sedan or Electric estate assembly and interfaces; a shared MG5 name does not establish interchange | Axle, bar diameter, bend, link seats, bushes and chassis package |
| Rear Torsion Beam | Actual torsion-beam installation and wheel-end format only; not an AWD final drive or universal cross-body beam | Body programme, pivot bushes, beam geometry, hub plates, spring and damper seats |
Continue the identified order
Use the MG5 system directory for other assemblies and the parts-list quotation guide for quantities and destination. Keep body and powertrain identification with every accepted item.
Auto parts inquiry
Send the vehicle and part evidence.
Include brand, full model, year, engine or EV drivetrain, OE/material code, quantity, destination and packing request. You can attach a list or old-part photos.
