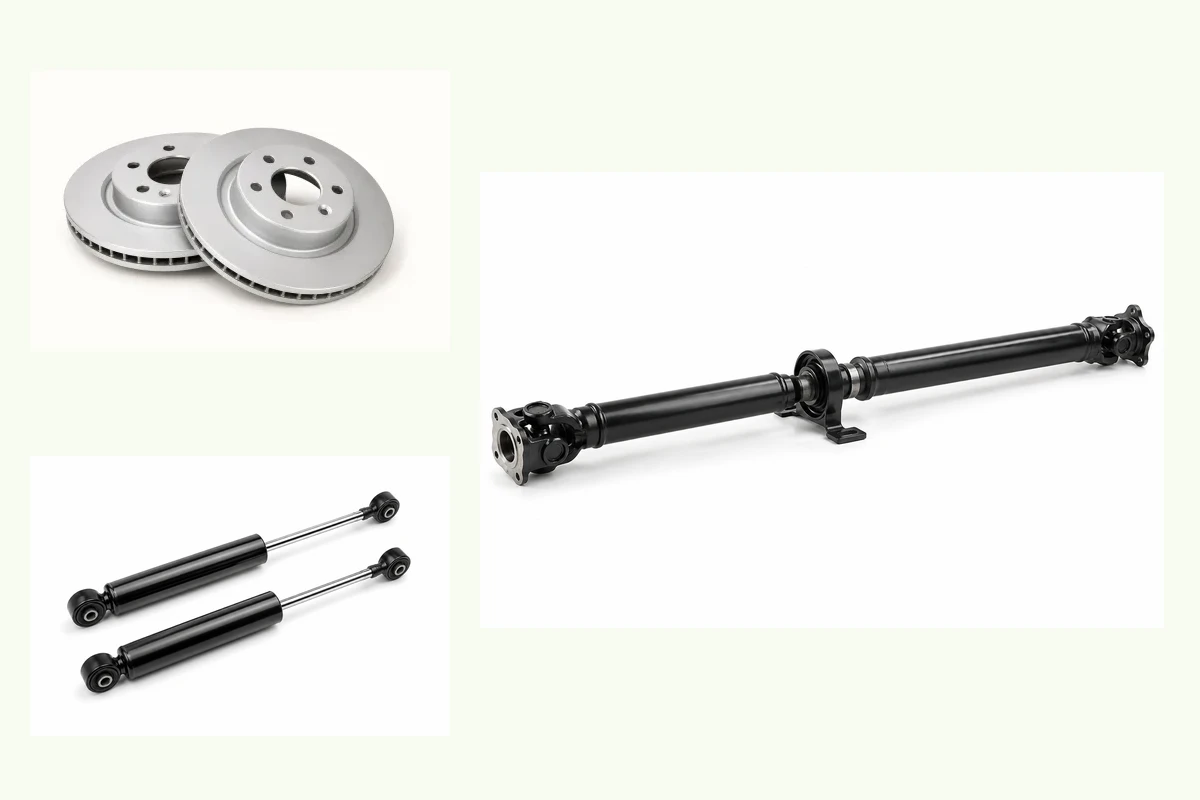

Nissan X-Trail Brake, Suspension and AWD Parts Guide
Use position and installed geometry to prevent visually similar chassis parts from being merged.
Record the complete corner
State axle, side, wheel size, brake package and electric or manual parking brake.
Separate 2WD and 4WD driveline parts
CV shafts, propeller shafts, hubs and differential parts require the actual drivetrain.
Define bare and complete assemblies
Arms, hubs, struts and calipers can include different bushes, bearings, brackets or hardware.
Brakes & Parking Brake
Inspect front and rear hardware independently; X-Trail trims and generations use both rear drum and rear disc arrangements.
| Component | Selection boundary |
|---|---|
For X-Trail brake pads, start with axle, trim and caliper package; use backing-plate outline and dimensions and hardware, shim and wear-indicator scope to separate similar variants. | |
Specify X-Trail brake discs by front or rear disc package. Retain diameter, thickness and overall height and bolt pattern and hub offset so offers describe the same assembly. | |
Build an X-Trail brake shoes inquiry around rear drum service-brake application, then compare shoe arc, width and lever arrangement and springs and adjuster contents. | |
Match the X-Trail brake drums to rear drum application and trim. Record working diameter and overall height together with hub and bearing relationship before sampling. | |
For X-Trail brake caliper, start with axle, side and piston format; use bracket centers and disc width and hose and parking mechanism to separate similar variants. | |
Specify X-Trail brake master cylinder by brake-assist system and bore. Retain port locations and threads and reservoir and sensor contents so offers describe the same assembly. | |
Build an X-Trail brake booster inquiry around assist architecture, then compare stud pattern and rod arrangement and vacuum or control interfaces. | |
Match the X-Trail brake hose to axle, side and suspension. Record fitting type and threads together with length and retaining brackets before sampling. | |
For X-Trail abs wheel speed sensor, start with axle and sensor position; use tone ring or encoder type and lead length and connector to separate similar variants. | |
Specify X-Trail parking brake cable by body, wheelbase and cable section. Retain actuation mechanism and length, ends and brackets so offers describe the same assembly. |
Suspension, Steering & Mounting
Match axle, side, chassis and steering system before comparing dampers, joints, hubs, shafts, mounts or subframes.
| Component | Selection boundary |
|---|---|
Build an X-Trail shock absorber inquiry around front strut or rear damper position, then compare generation, trim and suspension package and spring seat and mounting geometry. | |
Match the X-Trail strut mount to front strut design and side. Record stud pattern and bearing format together with rubber isolator and supplied pieces before sampling. | |
For X-Trail coil spring, start with axle, trim and body load; use free height, wire and end shape and spring identification marks to separate similar variants. | |
Specify X-Trail control arm by independent-suspension position. Retain side and mounting geometry and bush and joint inclusion so offers describe the same assembly. | |
Build an X-Trail ball joint inquiry around axle, upper/lower position and side, then compare taper and retention method and separate joint or arm inclusion. | |
Match the X-Trail tie rod end to steering system and position. Record thread size and handedness together with taper and joint orientation before sampling. | |
For X-Trail stabilizer link, start with axle and roll-control layout; use link centers and end type and side and bracket orientation to separate similar variants. | |
Specify X-Trail wheel hub / bearing by axle and hub or pressed-bearing format. Retain abs encoder and wheel studs and spline, flange and mounting dimensions so offers describe the same assembly. | |
Build an X-Trail cv axle inquiry around axle, side and drivetrain, then compare inner flange or spline and compressed length and outer spline. | |
Match the X-Trail steering rack to lhd/rhd and assist system. Record mounting, input shaft and ratio together with electrical connector or hydraulic ports before sampling. | |
For X-Trail engine mount, start with engine code and mount position; use bracket and stud pattern and mount construction and controls to separate similar variants. | |
Specify X-Trail transmission mount by gearbox and transfer-case code. Retain crossmember and stud pattern and insulator and bracket inclusion so offers describe the same assembly. | |
Build an X-Trail front subframe / crossmember inquiry around generation and drivetrain, then compare steering-rack and control-arm mounts and bare frame or bush and bracket contents. | |
Match the X-Trail propeller shaft to front or rear and wheelbase. Record flange pilot diameter and bolt pattern together with length and joint construction before sampling. | |
For X-Trail transfer case actuator, start with transfer case and actuator function; use gear or shaft interface and connector and identification label to separate similar variants. | |
Specify X-Trail differential bearing kit by axle and differential code. Retain pinion and carrier bearing references and races, seals and shims included so offers describe the same assembly. | |
Build an X-Trail axle shaft inquiry around rigid axle position and side, then compare spline and flange arrangement and length, bearing seats and seal seats. |
Continue with the same vehicle details
Use the X-Trail parts directory to identify other assemblies. Once specifications are clear, retain quantities, packing and destination through the shipping and quotation guide.
Auto parts inquiry
Send the vehicle and part evidence.
Include brand, full model, year, engine or EV drivetrain, OE/material code, quantity, destination and packing request. You can attach a list or old-part photos.
