MG HS SUVs • Petrol, Plug-in Hybrid and Hybrid+ identified separately
MG HS Brakes, Suspension & AWD Parts

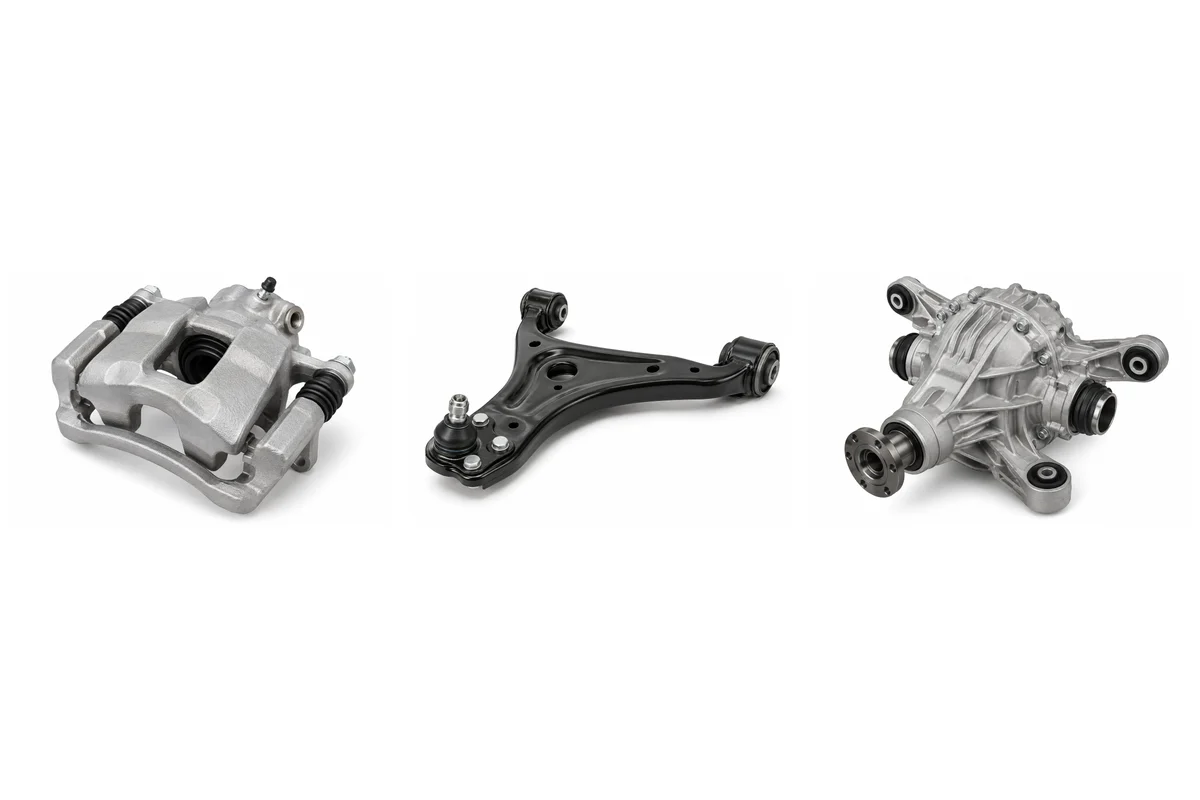

Compare MG HS wheel-corner brakes, EPS, independent rear suspension and fitted petrol AWD. Retain load, parking mechanism, encoder and driven interfaces.
Keep each brake corner identifiable
Pads, discs, calipers, flexible hoses and speed sensors must retain axle, side and installed brake-package records. A common wheel size is not approval of the same friction dimensions. Confirm the rear parking mechanism and agree EPB motor-only or complete-caliper contents rather than mixing their purchasing boundaries.
Preserve electrified assistance and load records
Regenerative braking does not remove ordinary friction brakes or prove an earlier petrol caliper is correct. Identify the actual brake assistance, hydraulic interfaces and original axle-load specification. Springs, dampers and upper mounts must follow that chassis package; they are not selected simply by the petrol, PHEV or Hybrid+ sales badge.
Compare independent rear suspension, not a beam
Identify the HS rear multi-link members and suspension carrier from the installed chassis. A ZS torsion beam is another architecture. Keep front lower arms separate from rear links, and compare every pivot, knuckle attachment and anti-roll-bar connection before agreeing bushes or joints inside an arm assembly.
Trace wheel-end sensing and driven connections
A bearing-only item, hub flange and complete hub have different contents. Keep the ABS encoder and sensor face with the installed corner, then retain driven-wheel splines where applicable. A CV axle connects the gearbox or final drive to a wheel; a longitudinal AWD propeller shaft connects different driveline units.
Restrict AWD requests to fitted petrol equipment
An identified earlier 2.0T petrol AWD build can require a PTU/transfer assembly, propeller shaft and rear final drive. Preserve their labels, ratio, flange and mounting records. A FWD rear suspension does not imply a differential, and no earlier AWD component is automatically approved for a newer hybrid transmission.
Keep steering architecture and market separate
Identify the LHD/RHD rack, tie rods, assist arrangement and body mounts together. EPS assistance can be located differently between assemblies; a rack picture is not approval of an electronic control unit. Retain exact mounting and signal equipment without replacing the steering request with a hydraulic pump from another model.
Related assembly comparisons
Match the brake pads outline to the accepted brake discs dimensions before agreeing an axle set.
The brake caliper piston and carrier establish a separate hydraulic and mounting request.
Identify the installed brake booster assistance before selecting a brake master cylinder interface.
A brake vacuum pump belongs only to its actual pressure circuit, not an assumed complete electronic brake unit.
The brake hose fitting must match the installed brake caliper port.
Route the ABS wheel speed sensor lead with the actual suspension corner rather than treating electrical sensing as hydraulic equipment.
Assemblies to identify separately
| Assembly | Application boundary | Selection record |
|---|---|---|
| Brake Pads | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Axle, backing plate, caliper, shims and friction grade |
| Brake Discs | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Diameter, thickness, hat height, centre bore and venting |
| Brake Caliper | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Casting, carrier, piston, fluid port and actuator interface |
| Brake Master Cylinder | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Cylinder label, bore, ports, mounting and reservoir seat |
| Brake Booster | Actual assistance architecture only; vacuum reference does not approve an integrated electronic unit | Assist type, label, stud spacing and pushrod interface |
| Brake Hose | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Union threads, fitting angles, brackets and routed length |
| ABS Wheel Speed Sensor | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Corner, full marking, socket, lead route and pickup depth |
| TPMS Sensor | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Sensor label, frequency, protocol, valve and wheel seat |
| Parking Brake Actuator | Confirmed motor-on-caliper EPB, exact rear corner and interface; complete caliper contents separate | Caliper label, output drive, socket and fastening |
| Shock Absorber / Strut | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Side, mounting, spring seat, stroke and load specification |
| Strut Mount | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Stud pattern, central sleeve, bearing and spring seat |
| Coil Spring | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Spring marking, ends, dimensions and vehicle load record |
| Control Arm | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Axle/side, mounting centres, bushes and joint contents |
| Ball Joint | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Arm retention, stud taper, mounting and fixing |
| Tie Rod End | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Rack marking, thread, offset, adjustment and taper |
| Stabilizer Link | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Joint-centre length, stud angle and motion clearance |
| Wheel Hub / Bearing | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Flange, bearing contents, spline and ABS encoder |
| CV Axle / Drive Shaft | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Side, spline, working length, joints and seal land |
| Steering Rack | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Rack label, mounting, ratio, joints and interfaces |
| Engine Mount | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Engine label, bracket, position and mount design |
| Transmission Mount | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Gearbox label, body pickups, bracket and isolator |
| Subframe | Ordinary front/rear suspension carrier only; high-voltage battery structures and complete powertrains excluded | Axle, build, suspension pickups and drivetrain interfaces |
| Steering Knuckle | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Corner, bearing format, strut, arm and brake mounts |
| AWD Propeller Shaft | Confirmed earlier 2.0T petrol AWD installation only; FWD, PHEV and Hybrid+ not inferred | Vehicle/gearbox, flange patterns, length, joints and supports |
| AWD Transfer Unit | Confirmed earlier petrol AWD transfer/PTU assembly only; dedicated hybrid drive excluded | Gearbox pairing, casting, ratio, output and mounting |
| AWD Rear Differential | Confirmed earlier petrol AWD rear final drive only; FWD rear suspension is not a differential | Unit label, ratio, coupling, flanges and carrier mounts |
| Brake Vacuum Pump | Exact HS generation, powertrain, fitted equipment and assembly interfaces | Vacuum source, drive type, ports, mounting and electrical socket |
Continue the identified order
Keep the full vehicle record with the HS system directory. The parts-list quotation guide covers quantities, destination and commercial details without assuming stock or price.
Auto parts inquiry
Send the vehicle and part evidence.
Include brand, full model, year, engine or EV drivetrain, OE/material code, quantity, destination and packing request. You can attach a list or old-part photos.
